Accessories – ECOFLOW – Smart Plug 2
Product details
| CN | 85076000 |
|---|

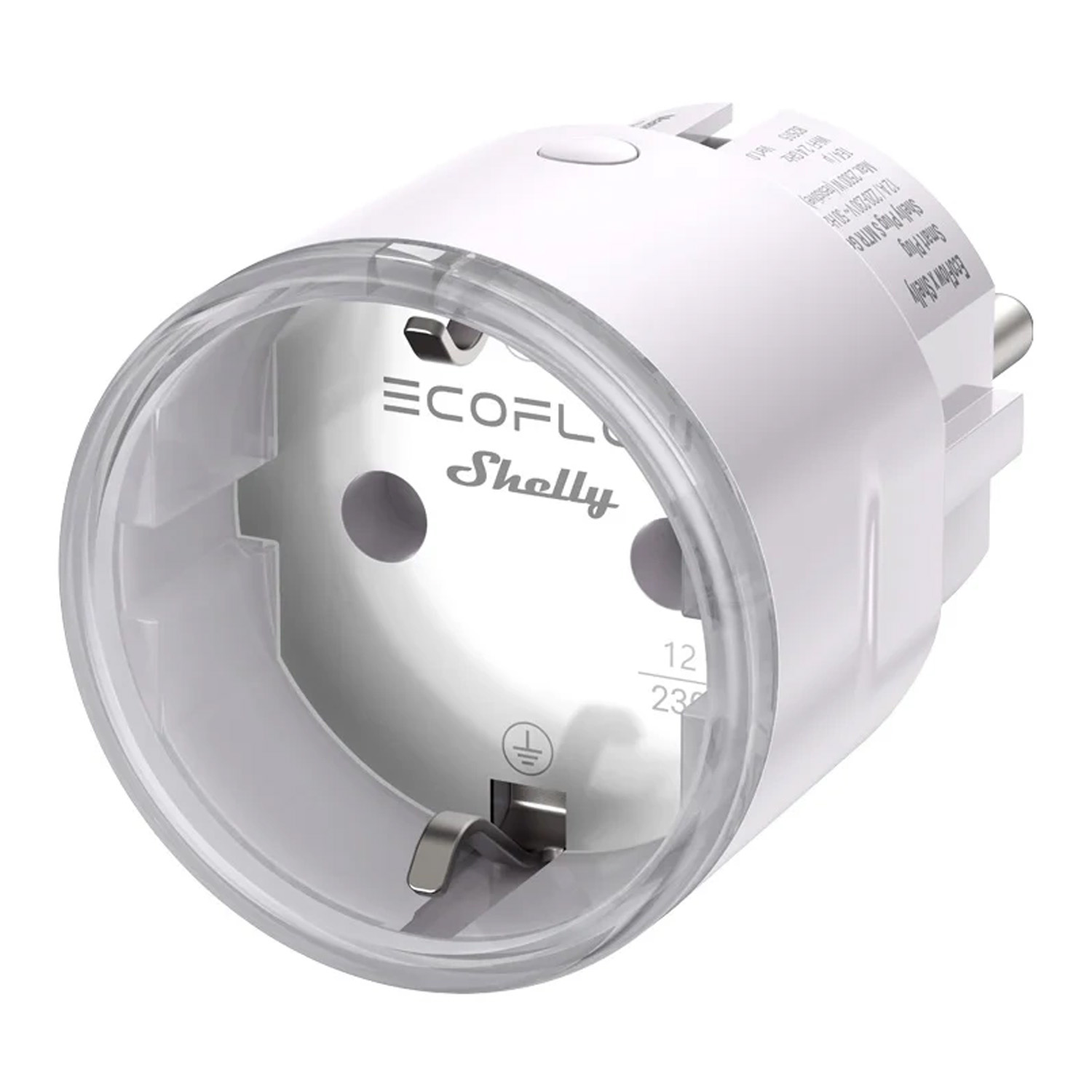

EcoFlow x Shelly Smart Plug 2 smart socket
The EcoFlow x Shelly Smart Plug 2 is a compact smart socket designed to work with the EcoFlow STREAM system. The device allows convenient power management of connected appliances and real-time monitoring of electricity consumption. Thanks to integration with the EcoFlow app, users can control the socket remotely, set schedules, and optimize energy use. The plug uses 2.4 GHz Wi‑Fi and Bluetooth 4.2. It is compatible with most European outlets (types E and F). Note that its role is monitoring and scheduling, not transmitting real-time energy consumption data to a microinverter.
Key features of the EcoFlow x Shelly Smart Plug 2:
- Monitoring and measurement: Equipped with advanced sensors that record voltage, current, total power consumption and monitor temperature.
- Control: Allows remote switching of devices on and off and scheduling via the EcoFlow app.
- Visualization: Features an LED ring that changes color depending on load level (green: low, yellow: medium, red: maximum consumption).
- Electrical ratings: Supports voltage and current up to 230 V / 12 A.
- Wireless connectivity: Uses 2.4 GHz Wi‑Fi and Bluetooth 4.2 protocols.
- Range: Offers a stable range of up to 50 m outdoors and up to 30 m indoors (for Wi‑Fi).
- Safety and construction: The plastic housing passes the glow‑wire test up to 750°C. It includes overload protection and has an IP20 protection rating.
- Dimensions: Compact size: 44 × 44 × 70 mm and weighs 60 g.
Who is this a good choice for?
The Smart Plug is aimed at EcoFlow STREAM users who want to precisely monitor and optimize the energy use of individual devices plugged into wall outlets. It enables maximization of self‑generated solar power by remotely managing loads and turning devices on or off according to schedules, helping to minimize wasted solar energy.
| Parameter | EcoFlow Smart Plug 2 |
|---|---|
| General | |
| Manufacturer | EcoFlow |
| Manufacturer part number | EF-OS-SM002-SMP2SHEL |
| Physical specifications | |
| Dimensions (H × W × D) | 44 × 44 × 70 mm |
| Weight | 60 g |
| Compatible sockets | CEE 7/1, CEE 7/3 (type F/Schuko) or CEE 7/5 (type E) |
| Compatible plugs | CEE 7/2, CEE 7/4 (type F/Schuko), CEE 7/7, CEE 7/16 (type C) or CEE 7/17 |
| Enclosure material | Plastic |
| Environmental specifications | |
| Operating temperature range | from -20°C to 40°C |
| Humidity | 30% to 70% RH |
| Maximum altitude | 2000 m |
| Glow-wire test temperature | 750°C |
| Pollution degree | 2 |
| Forced cooling required | No |
| Protection rating | IP 20 |
| Electrical specifications | |
| Power supply | 220–230 V~, 50/60 Hz |
| Power consumption | <1 W |
| Rated impulse voltage | 2500 V |
| Output specifications | |
| Maximum switching voltage | 230 V~ |
| Maximum switching current | 12 A |
| Mechanical life | 10 000 cycles |
| Overvoltage category | II |
| Operating mode | S1 |
| Switch type | Single-pole |
| Contact configuration | SPNO (single pole, normally open) |
| Type of circuit breaking | Micro-break |
| Sensors and measurements | |
| Internal temperature sensor | Yes |
| Voltmeter (AC) | Yes |
| Ammeter (AC) | Yes |
| Power and energy measurement | Yes |
| Wi-Fi connectivity | |
| Protocol | 802.11 b/g/n |
| Frequency band | 2400 – 2473 MHz |
| Max. transmit power | <10 dBm |
| Range | up to 50 m outdoors, up to 30 m indoors (depending on conditions) |
| Bluetooth connectivity | |
| Protocol | 4.2 |
| Frequency band | 2400 – 2483.5 MHz |
| Max. transmit power | <4 dBm |
| Range | up to 30 m outdoors, up to 10 m indoors (depending on conditions) |
All specifications and descriptions may differ from the actual product specifications. EcoFlow reserves the right to make changes and corrections to the product shown and described here at any time without prior notice.
