Accessories – ECOFLOW – TRAIL 200 DC
SKU: F12D27
EAN: 2010000036648
| CN | 85076000 |
|---|
Price
Manual EcoFlow Trail 200 DC
EcoFlow-Trail-200-DC-Manual.pdf
Safety guidelines EcoFlow Trail 200 DC
EcoFlow-Trail-200-DC-Safety-guidelines.pdf
Product details
| CN | 85076000 |
|---|

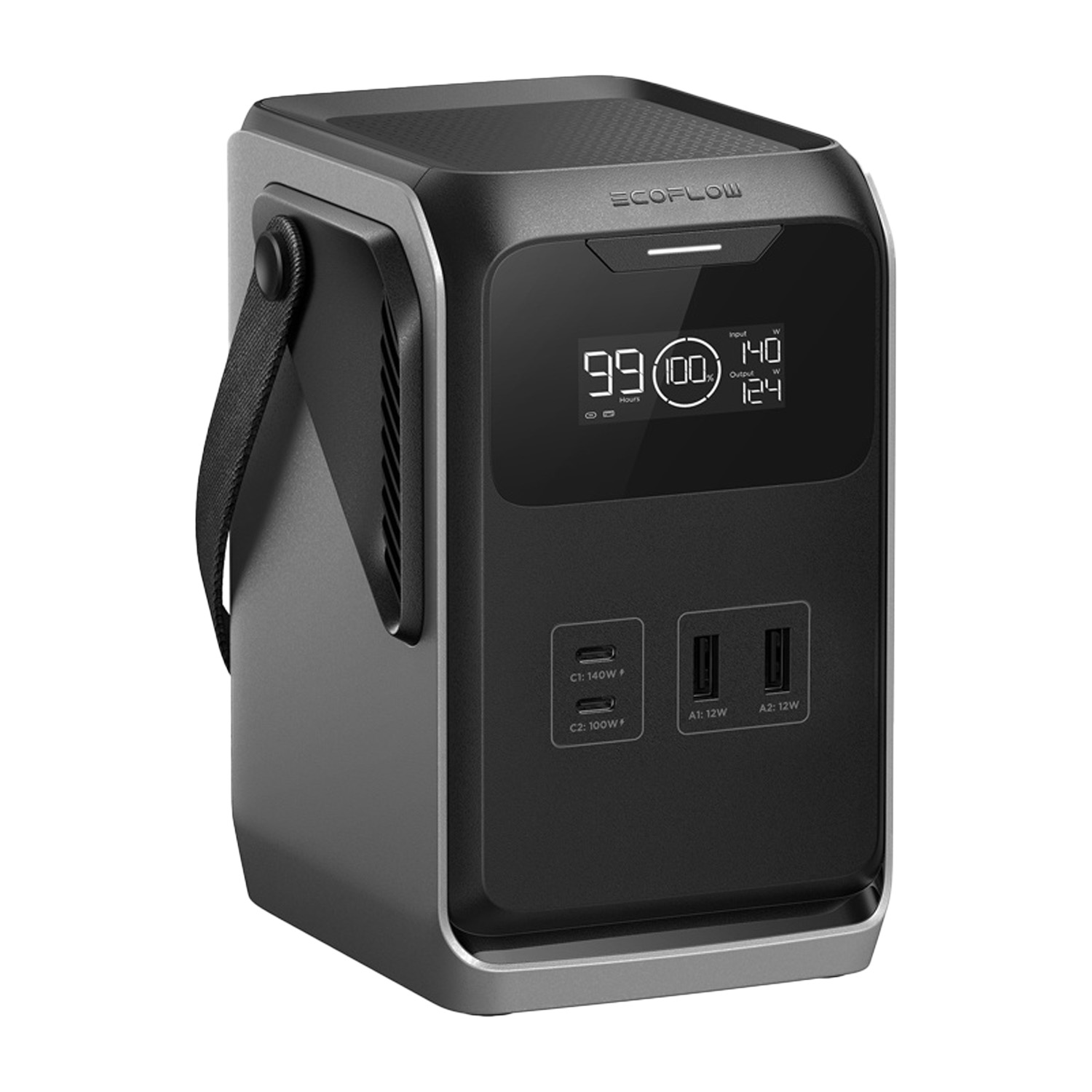

EcoFlow TRAIL 200 DC portable power station
The EcoFlow TRAIL 200 DC is a versatile and highly portable power station, ideal for both outdoor and home use, offering energy independence. It is one of the lightest and most compact models in its class—48% lighter and 60% smaller than devices with similar capacity. It weighs only 1.8 kg and measures 126 × 115 × 167 mm, making it easy to fit in a backpack.
Key features of the EcoFlow TRAIL 200 DC:
- Capacity and power: The capacity is 192 Wh. It provides a maximum output of 220 W of pure direct current (DC).
- Use cases: This power allows you to run basic equipment such as portable coolers (for about 7.5 hours), camping lanterns (up to 29 hours), laptops, cameras, and smartphones (up to 11 charges). It can also serve as backup power during home outages (router, lamp, phone).
- Output ports: The station is equipped with four integrated ports for simultaneous charging of multiple devices: 1x USB-C 140 W max, 1x USB-C 100 W max, and 2x USB-A (12 W per port, 24 W total).
- Fast charging: The station can be charged to 80% in just 57 minutes using the 140 W USB-C PD port in combination with the 100 W port.
- Battery and safety: It uses LFP (LiFePO₄) cells. The battery management system (BMS) monitors up to 40 key parameters. The enclosure meets UL94V-0 flammability standards, and the protection rating is IP30. The device operates within a discharge temperature range of -10°C to 45°C.
Who is this a good choice for?
The TRAIL 200 DC is ideal for outdoor enthusiasts (camping, hiking, fishing) who need a minimalist and lightweight power source. It is also a practical and easy-to-carry solution for providing emergency power to basic DC devices.
Manual EcoFlow Trail 200 DC
EcoFlow-Trail-200-DC-Manual.pdf
Safety guidelines EcoFlow Trail 200 DC
EcoFlow-Trail-200-DC-Safety-guidelines.pdf
| Parameter | EcoFlow TRAIL 200 DC |
|---|---|
| General information | |
| Model | EF-TX-192 |
| Net weight | Approximately 1.8 kg |
| Dimensions | Approximately 126 × 115 × 167 mm |
| Output | |
| USB-A1/A2 | 5 V⎓, 2.4 A, max. 12 W per port, 24 W total |
| USB-C1 | 5/9/12/15 V⎓, 3 A; 20/28 V⎓, 5 A, max. 140 W |
| USB-C2 | 5/9/12/15 V⎓, 3 A; 20 V⎓, 5 A, max. 100 W |
| Car socket | / |
| Input | |
| USB-C1 (input) | 9/12/15 V⎓, 3 A; 20/28 V⎓, 5 A, max. 140 W |
| USB-C2 (input) | 9/12/15 V⎓, 3 A; 20 V⎓, 5 A, max. 100 W |
| Solar panel / car charging input port | / |
| Battery specifications | |
| Nominal voltage | 12.8 V⎓ |
| Rated capacity | 192 Wh, 15 Ah |
| Battery technology | LFP (LiFePO₄) |
| Protections | |
| Protection types | Surge protection, overload protection, over-temperature protection, short-circuit protection, low-temperature protection, low-voltage protection, overcurrent protection |
| Ambient temperature | |
| Charging temperature | 0 to 45°C |
| Discharge temperature | −10 to 45°C |
| Storage temperature | −10 to 45°C |
| Other | |
| Operating altitude above sea level | ≤3000 m |
