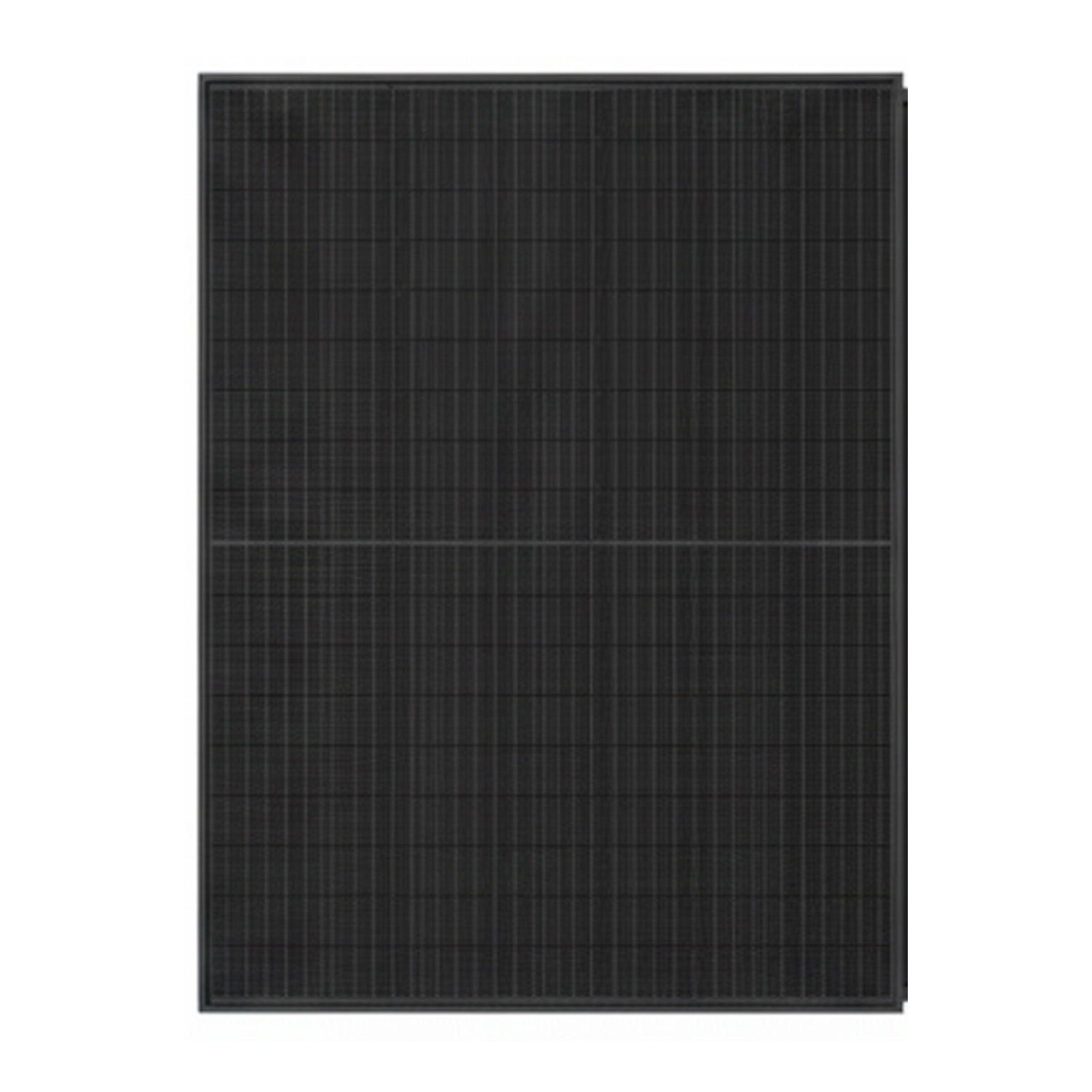

CECEP Module 410W CEC6-54-410MHV Full Black
SKU: F10H1
EAN: 5905951587844
| Manufacturer | |
|---|---|
| Power | |
| Frame color | |
| Efficiency | |
| Product warranty | |
| Linear power warranty | |
| Number of BusBar | |
| Frame thickness | |
| Height | |
| Width | |
| Maximum static load (Pa) | |
| Quantity per pallet | |
| Quantity per container | |
| Weight | 21,5 kg |
Price
52,31 €
Gross
Gross
Datasheet CECEP 410W CEC6-54-410MHV Full black
unnamed-file-221-1-1.pdf
Warranty CECEP CEC6-54-400MHV - CEC6-54-415MHV
CECEP-CEC6-54-400MHV-CEC6-54-415MHV-Warranty.pdf
Product details
| Manufacturer | |
|---|---|
| Power | |
| Frame color | |
| Efficiency | |
| Product warranty | |
| Linear power warranty | |
| Number of BusBar | |
| Frame thickness | |
| Height | |
| Width | |
| Maximum static load (Pa) | |
| Quantity per pallet | |
| Quantity per container | |
| Weight | 21,5 kg |
CECEP QingTian CEC6-54MHV Photovoltaic Module
The CECEP QingTian CEC6-54MHV photovoltaic module is designed to deliver high energy efficiency and durability under all conditions. With advanced production technology and excellent technical specifications, this module is the ideal solution for both residential and commercial applications.
Key Features of the Module:
- Module efficiency up to 21.3% – High energy conversion efficiency.
- Resistance to harsh weather conditions – It withstands wind loads (2400 Pa) and snow loads (5400 Pa).
- Guaranteed power tolerance of 0–+5 W – Ensures reliability and maximum output power.
- Excellent performance in low light – Increased efficiency during cloudy weather, at dusk and dawn.
Who is this a good choice for?
The CECEP QingTian CEC6-54MHV is the solution for users who expect high quality, reliability, and long-term performance. This module meets the needs of both residential and commercial installations, providing optimal energy yields while minimizing operating costs.
Datasheet CECEP 410W CEC6-54-410MHV Full black
unnamed-file-221-1-1.pdf
Warranty CECEP CEC6-54-400MHV - CEC6-54-415MHV
CECEP-CEC6-54-400MHV-CEC6-54-415MHV-Warranty.pdf
| Module Parameters | ||||
|---|---|---|---|---|
| Electrical Parameters (Standard Test Conditions) | CEC6-54-400MH | CEC6-54-400MHV | CEC6-54-405MH | CEC6-54-405MHV | CEC6-54-410MH | CEC6-54-410MHV | CEC6-54-415MH | CEC6-54-415MHV |
| Maximum Power Pmax (Wp) | 400 | 405 | 410 | 415 |
| Maximum Operating Voltage Vmp (V) | 31.09 | 31.26 | 31.42 | 31.61 |
| Maximum Operating Current Imp (A) | 12.86 | 12.96 | 13.05 | 13.13 |
| Open Circuit Voltage Voc (V) | 37.00 | 37.20 | 37.40 | 37.60 |
| Short Circuit Current Isc (A) | 13.65 | 13.76 | 13.84 | 13.94 |
| Maximum System Voltage Vdc (V) | 1000/1500 | 1000/1500 | 1000/1500 | 1000/1500 |
| Module Efficiency (%) | 20.5% | 20.7% | 21.0% | 21.3% |
| Power Tolerance (%) | 0/+5W | 0/+5W | 0/+5W | 0/+5W |
| Test Under NMOT Conditions | ||||
| Maximum Power Pmax (Wp) | 298.9 | 302.7 | 306.4 | 310.1 |
| Maximum Operating Voltage Vmp (V) | 28.98 | 29.13 | 29.29 | 29.45 |
| Maximum Operating Current Imp (A) | 10.32 | 10.39 | 10.46 | 10.53 |
| Open Circuit Voltage Voc (V) | 34.97 | 35.15 | 35.34 | 35.53 |
| Short Circuit Current Isc (A) | 11.07 | 11.17 | 11.26 | 11.35 |
| Physical Parameters | ||||
| Dimensions (mm) | 1722 x 1134 x 30 | 1722 x 1134 x 30 | 1722 x 1134 x 30 | 1722 x 1134 x 30 |
| Mounting Hole Dimensions (mm) | 1150*1088, 1400*1088 | 1150*1088, 1400*1088 | 1150*1088, 1400*1088 | 1150*1088, 1400*1088 |
| Cable Length | 300 mm; Configurable | 300 mm; Configurable | 300 mm; Configurable | 300 mm; Configurable |
| Weight | 21.5 kg | 21.5 kg | 21.5 kg | 21.5 kg |
| Mechanical Characteristics | ||||
| Cell Type | 182 x 91 mm monocrystalline silicon cells, 108 cells (6 x 18) | 182 x 91 mm monocrystalline silicon cells, 108 cells (6 x 18) | 182 x 91 mm monocrystalline silicon cells, 108 cells (6 x 18) | 182 x 91 mm monocrystalline silicon cells, 108 cells (6 x 18) |
| Glass | 3.2 mm low-iron tempered glass with high light transmittance | 3.2 mm low-iron tempered glass with high light transmittance | 3.2 mm low-iron tempered glass with high light transmittance | 3.2 mm low-iron tempered glass with high light transmittance |
| Junction Box | IP68 | IP68 | IP68 | IP68 |
| Limit Parameters | ||||
| Operating Temperature | -40°C to +85°C | -40°C to +85°C | -40°C to +85°C | -40°C to +85°C |
| Maximum Fuse Current | 25 A | 25 A | 25 A | 25 A |
| Temperature Ratings | ||||
| Nominal Operating Module Temperature (NMOT) | 42°C ± 2°C | 42°C ± 2°C | 42°C ± 2°C | 42°C ± 2°C |
| Temperature Coefficient of Maximum Power Pmax (β %/°C) | -0.34 | -0.34 | -0.34 | -0.34 |
| Temperature Coefficient of Open Circuit Voltage Voc (β %/°C) | -0.26 | -0.26 | -0.26 | -0.26 |
| Temperature Coefficient of Short Circuit Current Isc (α %/°C) | 0.05 | 0.05 | 0.05 | 0.05 |
| Packing Configuration | ||||
| Items per Pallet | 36 pcs/pallet | 36 pcs/pallet | 36 pcs/pallet | 36 pcs/pallet |
| Pallets per Container (40′ HQ) | 26 pallets per container | 26 pallets per container | 26 pallets per container | 26 pallets per container |
| Items per Container (40′ HQ) | 936 pcs/40’HQ | 936 pcs/40’HQ | 936 pcs/40’HQ | 936 pcs/40’HQ |
