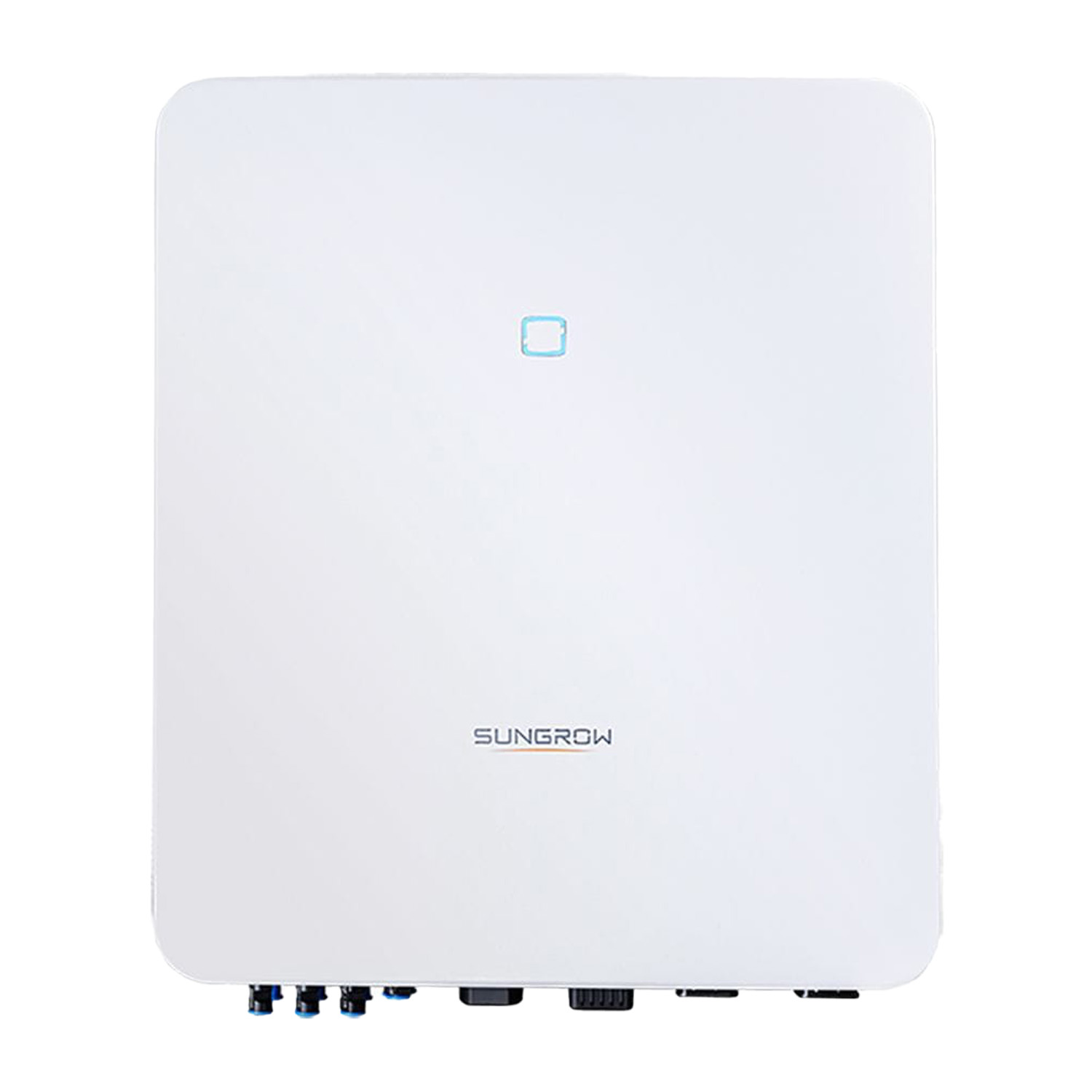

SUNGROW SH8.0RT-V112_S Hybrid Inverter

SKU: F2D0151
SUNGROW SH8.0RT-V112_S Hybrid Inverter
Manufacturer

Rated power

Power supply

MPPT

Net width

Net depth

Net height

SPD Type II

Price 1 114,34 €
Gross

1 114,34 €
Gross

1 114,34 €
Gross

Datasheet SUNGROW SH8.0RT-V112_S unnamed-file-186-1-1.pdf

Product details

Manufacturer

Rated power

Power supply

MPPT

Net width

Net depth

Net height

SPD Type II

Sungrow SH 5.0/6.0/8.0/10 RT Inverter

The Sungrow SH 5.0 – 10 RT inverter series consists of hybrid, three-phase inverters designed for residential use. With advanced energy management features, a wide range of battery compatibility, and easy installation, these devices offer flexibility, energy independence, and exceptional user convenience.

Main features of the Sungrow SH 5.0 – 10 RT inverter:

  • Flexible application – A wide battery voltage range from 150 to 600 V, support for parallel connections with master-slave control, and full backup power capabilities in case of load imbalances.
  • Energy independence – Smooth transition to backup power mode and fast charging and discharging of batteries for enhanced efficiency.
  • Intelligent management – Optimized built-in EMS, online monitoring, and remote software updates with customizable settings.
  • Easy installation – Unique plug connections, touch-free startup via smartphone, and lightweight, compact design.

Who is it a good choice for?

The inverters from the Sungrow SH 5.0 – 10 RT series are the perfect solution for households seeking an efficient, reliable, and easy-to-install energy management system. With the ability to integrate with batteries and emergency power features, these devices ensure maximum energy independence and comfort.

Datasheet SUNGROW SH8.0RT-V112_S unnamed-file-186-1-1.pdf

Technical Specifications of SUNGROW Inverters
Model SH5.0RT SH6.0RT SH8.0RT SH10.0RT
PV Input
Max PV Input Power (W) 7500 W 9000 W 12000 W 15000 W
Max PV Input Voltage (V) 1000 V 1000 V 1000 V 1000 V
Starting Voltage (V) 180 V 250 V 250 V 250 V
Nominal Input Voltage (V) 600 V 600 V 600 V 600 V
MPPT Voltage Range (V) 150-950 V 200-950 V 200-950 V 200-950 V
MPPT Voltage Range for Rated Power (V) 210-850 V 250-850 V 330-850 V 280-850 V
Number of MPPTs 2 2 2 2
Max PV Strings per MPPT 1/1 1/1 1/1 1/2
Max PV Input Current (A) 25 A (12.5 A / 12.5 A) 25 A (12.5 A / 12.5 A) 25 A (12.5 A / 12.5 A) 25 A (12.5 A / 12.5 A)
Max Short-Circuit Current for PV Input (A) 32 A (16 A / 16 A) 32 A (16 A / 16 A) 32 A (16 A / 16 A) 48 A (16 A / 32 A)
AC Input and Output
Max AC Input Power from Grid (W) 12500 W 15000 W 18600 W 20600 W
Rated AC Output Power (W) 5000 W 6000 W 8000 W 10000 W
Rated AC Output Current (A) 7.3 A 8.7 A 11.6 A 14.5 A
Max Apparent AC Output Power 5000 VA 6000 VA 8000 VA 10000 VA
Max AC Output Current (A) 7.6 A 9.1 A 12.1 A 15.2 A
Nominal AC Voltage (V) 3 / N / PE, 220 / 380 V; 230 / 400 V; 240 / 415 V 3 / N / PE, 220 / 380 V; 230 / 400 V; 240 / 415 V 3 / N / PE, 220 / 380 V; 230 / 400 V; 240 / 415 V 3 / N / PE, 220 / 380 V; 230 / 400 V; 240 / 415 V
AC Voltage Range (V) 270-480 V 270-480 V 270-480 V 270-480 V
Nominal Grid Frequency (Hz) 50 Hz / 45-55 Hz, 60 Hz / 55-65 Hz 50 Hz / 45-55 Hz, 60 Hz / 55-65 Hz 50 Hz / 45-55 Hz, 60 Hz / 55-65 Hz 50 Hz / 45-55 Hz, 60 Hz / 55-65 Hz
THD (Total Harmonic Distortion) < 3% (at rated power) < 3% (at rated power) < 3% (at rated power) < 3% (at rated power)
DC Impulse < 0.5% In < 0.5% In < 0.5% In < 0.5% In
Power Factor > 0.99 / 0.8 leading – 0.8 lagging > 0.99 / 0.8 leading – 0.8 lagging > 0.99 / 0.8 leading – 0.8 lagging > 0.99 / 0.8 leading – 0.8 lagging
Protection
LVRT Yes Yes Yes Yes
Islanding Protection Yes Yes Yes Yes
AC Short-Circuit Protection Yes Yes Yes Yes
Current Leakage Protection Yes Yes Yes Yes
DC Switch (solar installation) Yes Yes Yes Yes
DC Fuse (battery) Yes Yes Yes Yes
Surge Category III [GRID], II [PV] [BATTERY] III [GRID], II [PV] [BATTERY] III [GRID], II [PV] [BATTERY] III [GRID], II [PV] [BATTERY]
SPD DC Type II / AC Type II DC Type II / AC Type II DC Type II / AC Type II DC Type II / AC Type II
Protection Against Reverse Polarity at Battery Input Yes Yes Yes Yes
Parallel Operation on Network Port / Max. Number of Inverters Master/Slave Mode / 5* (same type of inverters required) Master/Slave Mode / 5* (same type of inverters required) Master/Slave Mode / 5* (same type of inverters required) Master/Slave Mode / 5* (same type of inverters required)
Battery Data
Battery Type Lithium-ion Battery Lithium-ion Battery Lithium-ion Battery Lithium-ion Battery
Battery Voltage 150 V – 600 V 150 V – 600 V 150 V – 600 V 150 V – 600 V
Max Charge/Discharge Current 30 A** / 30 A** 30 A** / 30 A** 30 A** / 30 A** 30 A** / 30 A**
Max Charge/Discharge Power 7500 W / 6000 W 9000 W / 7200 W 10600 W / 10600 W 10600 W / 10600 W
System Data
Max Efficiency 98.0% 98.2% 98.4% 98.4%
Efficiency According to European Standards 97.2% 97.5% 97.9% 97.9%
Isolation Method (solar installation/battery) Transformerless / Transformerless Transformerless / Transformerless Transformerless / Transformerless Transformerless / Transformerless
Protection Class IP65 IP65 IP65 IP65
Operating Ambient Temperature Range -25°C – 60°C -25°C – 60°C -25°C – 60°C -25°C – 60°C
Permissible Relative Humidity Range (non-condensing) 0% – 100% 0% – 100% 0% – 100% 0% – 100%
Cooling Method Natural Cooling Natural Cooling Natural Cooling Natural Cooling
Max Operating Height 4000 m (lower efficiency > 3000 m) 4000 m (lower efficiency > 3000 m) 4000 m (lower efficiency > 3000 m) 4000 m (lower efficiency > 3000 m)
Typical Noise Level 30 dB (A) 30 dB (A) 30 dB (A) 30 dB (A)
Display LED LED LED LED
Communication RS485, WLAN, Ethernet, CAN, 4×DI, 1×DO RS485, WLAN, Ethernet, CAN, 4×DI, 1×DO RS485, WLAN, Ethernet, CAN, 4×DI, 1×DO RS485, WLAN, Ethernet, CAN, 4×DI, 1×DO
DC Connection Type MC4 (PV) / Sunclix (battery) MC4 (PV) / Sunclix (battery) MC4 (PV) / Sunclix (battery) MC4 (PV) / Sunclix (battery)
AC Connection Type Plug and Play Connector Plug and Play Connector Plug and Play Connector Plug and Play Connector
Compliance with Standards IEC / EN 62109, IEC / EN 61000-6, EN 62477-1, IEC 61727, IEC 62116, IEC 61683, VDE-AR-N-4105, AS/NZS 4777.2, EN50549-1, NRS 097-2-1, Generator Type A IEC / EN 62109, IEC / EN 61000-6, EN 62477-1, IEC 61727, IEC 62116, IEC 61683, VDE-AR-N-4105, AS/NZS 4777.2, EN50549-1, NRS 097-2-1, Generator Type A IEC / EN 62109, IEC / EN 61000-6, EN 62477-1, IEC 61727, IEC 62116, IEC 61683, VDE-AR-N-4105, AS/NZS 4777.2, EN50549-1, NRS 097-2-1, Generator Type A IEC / EN 62109, IEC / EN 61000-6, EN 62477-1, IEC 61727, IEC 62116, IEC 61683, VDE-AR-N-4105, AS/NZS 4777.2, EN50549-1, NRS 097-2-1, Generator Type A
Mechanical Data
Dimensions (W × H × D) 460 x 540 x 170 mm 460 x 540 x 170 mm 460 x 540 x 170 mm 460 x 540 x 170 mm
Installation Method Wall Mounting Bracket Wall Mounting Bracket Wall Mounting Bracket Wall Mounting Bracket
Weight 27 kg 27 kg 27 kg 27 kg
Emergency Power Data
Nominal Voltage 3 / N / PE, 220 / 380 V; 230 / 400 V; 240 / 415 V 3 / N / PE, 220 / 380 V; 230 / 400 V; 240 / 415 V 3 / N / PE, 220 / 380 V; 230 / 400 V; 240 / 415 V 3 / N / PE, 220 / 380 V; 230 / 400 V; 240 / 415 V
Frequency Range 50 Hz / 60 Hz 50 Hz / 60 Hz 50 Hz / 60 Hz 50 Hz / 60 Hz
Total Output Voltage – Harmonic Distortion Factor (linear load) 2% 2% 2% 2%
Switching Time to Emergency Mode < 20 ms < 20 ms < 20 ms < 20 ms
Rated Output Power 5000 W / 5000 VA 6000 W / 6000 VA 8000 W / 8000 VA 10000 W / 10000 VA
Peak Output Power 6000 W / 6000 VA, 5 min |

10000 W / 10000 VA, 10 s 		7200 W / 7200 VA, 5 min |

10000 W / 10000 VA, 10 s 		12000 W / 12000 VA, 5 min 12000 W / 12000 VA, 5 min
Rated Output Current under Backup Load in Grid Mode 3 × 18.5 A 3 × 18.5 A 3 × 18.5 A 3 × 18.5 A
