Accessories – SOLAX – Battery connector – negative – DEVALAN
| Weight | 0,0125 kg |
|---|---|
| CN | 85366990 |
Gross
Product details
| Weight | 0,0125 kg |
|---|---|
| CN | 85366990 |

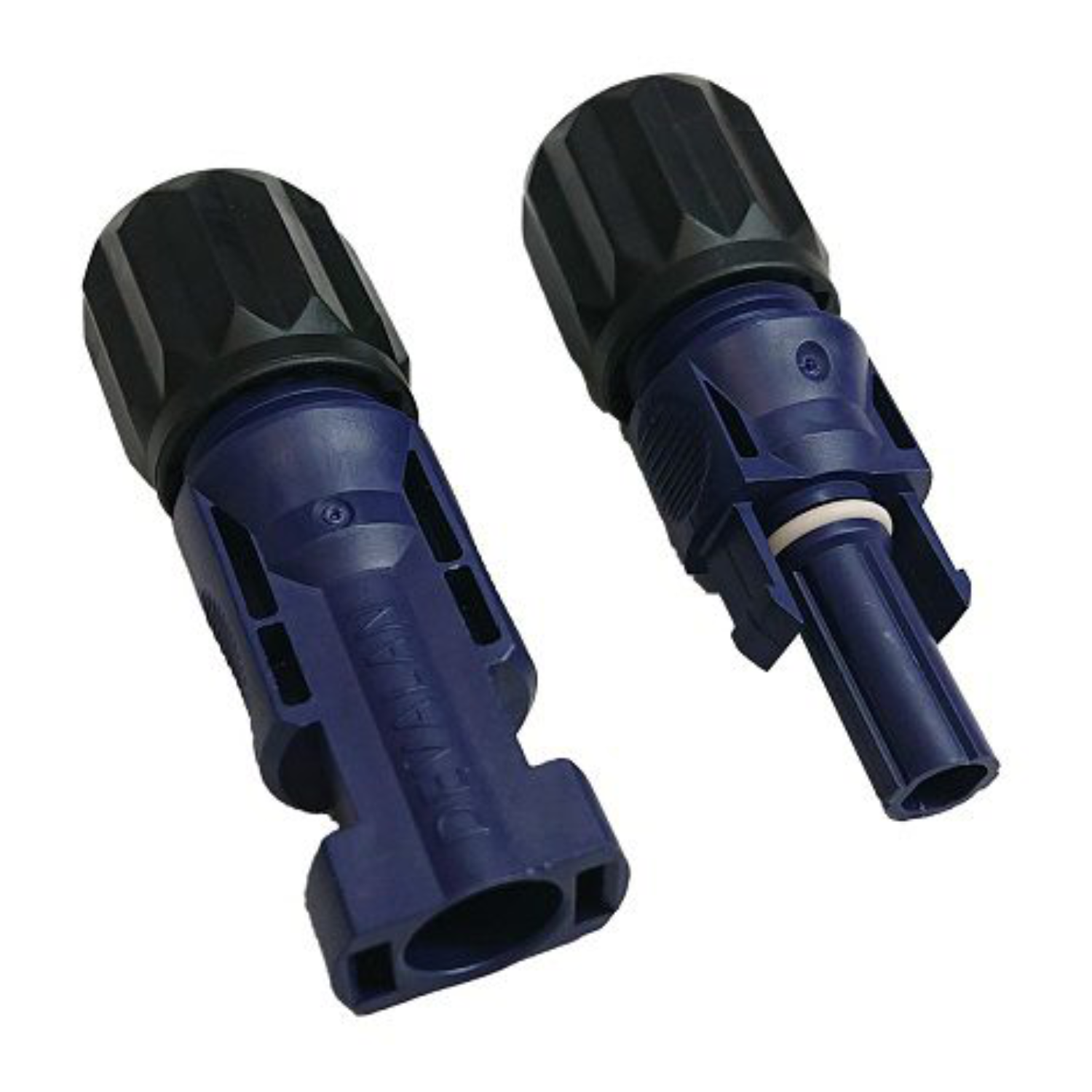

SOLAX Battery connector negative DEVALAN
The VP-D4B-CHDM6B connector from Devalan is a robust solution for electrical connections, offering high durability and reliability. It’s designed for demanding conditions, featuring an IP68 protection rating and a wide operating temperature range. It complies with IEC 62852, which confirms its manufacturing quality.
Main features of the Devalan VP-D4B-CHDM6B connector:
- Rated voltage: 1100 VAC, impulse: 6400 VAC.
- Rated current: 40 A (for 6 mm² / 10 AWG) according to TUV.
- Contact resistance: <0.4 mΩ, insulation resistance: ≥5000 MΩ.
- Mating cycles: ≥500 cycles.
- Protection rating: IP68 (when connected), operating temperature range: -40°C to +85°C.
- Materials: housing PBT/PC/PA, contacts made of copper alloy plated with bright tin (2–5 μm), materials compliant with RoHS.
Who is this a good choice for?
The Devalan VP-D4B-CHDM6B connector is an excellent choice for installations that require secure and durable electrical connections, especially in outdoor applications or environments exposed to moisture and temperature changes. It’s well suited for photovoltaic systems, industrial use, outdoor lighting, and anywhere high reliability and an IP68 rating are needed. Its solid construction and electrical specifications ensure long-lasting and safe operation.
| Name | Value |
|---|---|
| Rated voltage | 1100 VAC |
| Rated impulse voltage | 6400 VAC |
| Rated current | 40A |
| Contact resistance | <0.4 mΩ |
| Insulation resistance | 5000 MΩ |
| Mating cycles | ≥500 cycles |
| Ingress protection | IP68 1m-1H (after connection) |
| Operating temperature | -40°C~+85°C |
| Housing material | PBT/PC/PA |
| Contact material | Copper alloy, plated with bright tin 2-5 μm |
| Contact retention force | 5.0 kgf |
| Salt spray test duration | 24H |
| Adapter cable length | 4.0-7.4mm |
| Tightening torque of the connector locking nut | 2.6 N·m ~2.9 N·m |
| Compliance | IEC 62852 |
| Material compliance | RoHS |
Units and values are given in the specification.
