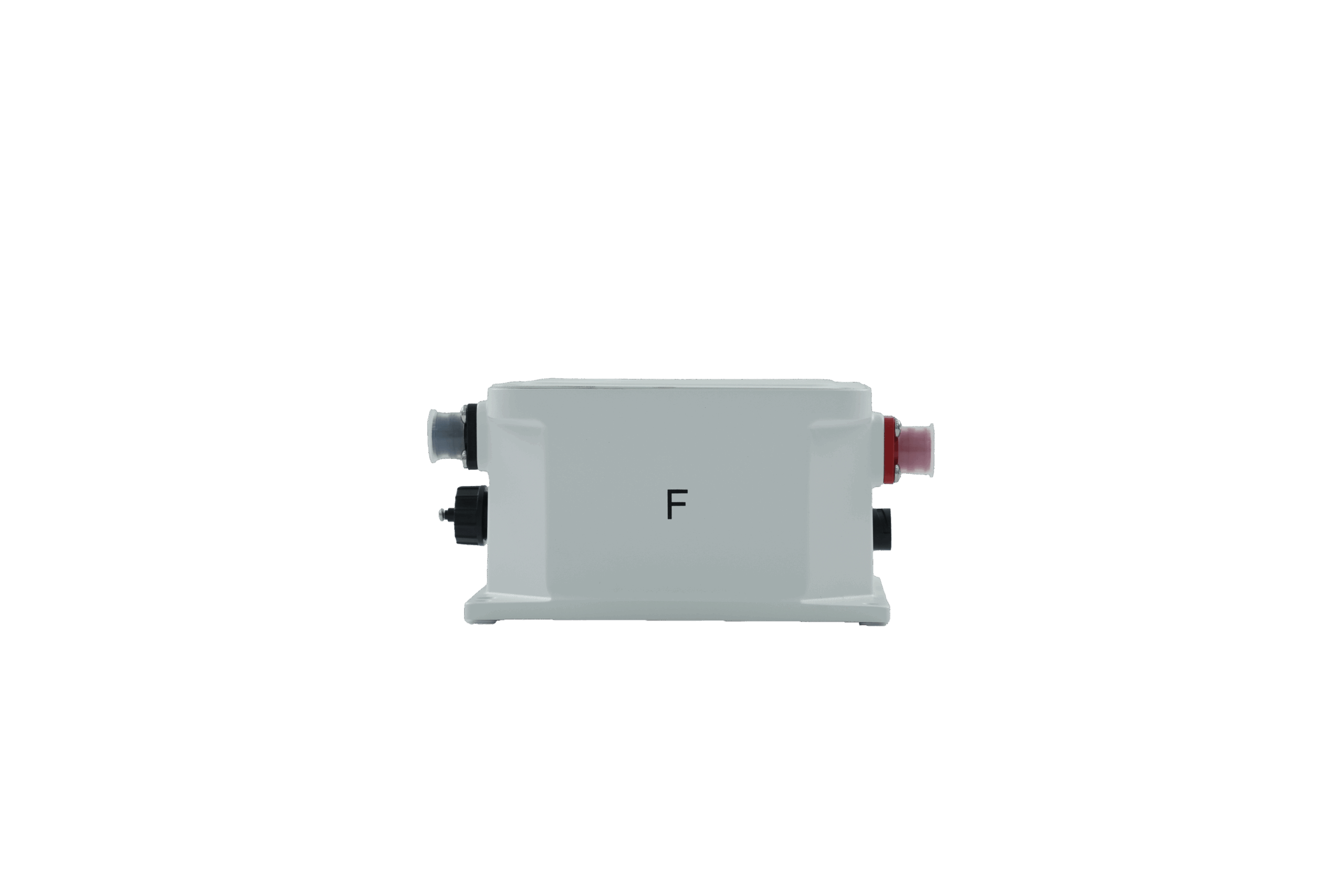

Accessories – SOLAX – HS50E (-D) – Series Box
SKU: F20S741
EAN: 2010000045527
Product details
| Weight | 12,08 kg |
|---|---|
| CN | 85371098 |
SOLAX T-BAT HS50E
The high-voltage energy storage system SOLAX T-BAT HS50E is an advanced solution designed to optimize energy usage and provide intelligent management for a household or business. Its modular design, based on safe and durable lithium iron phosphate (LFP) cells free of cobalt, allows flexible expansion of system capacity from 5.1 kWh up to 92.16 kWh. With an IP66 protection rating and advanced heating technology, the system is suitable for both indoor and outdoor installations, operating across a wide temperature range from -30°C to 53°C.
Key features of the SOLAX T-BAT HS50E:
-
- Modular expandability: Ability to start from a capacity of 5.1 kWh with flexible expansion options according to the user’s current energy needs.
- High performance and power: Maximum charge and discharge current of 50 A and high efficiency thanks to lithium iron phosphate (LFP) cells.
- Durability and long life: Over 6,000 cycles ensuring long-term and reliable operation of the energy storage system.
- Operation in harsh conditions: IP66 protection rating and built-in heating technology enabling safe operation in temperatures from -30°C to 53°C.
- Intelligent management: Real-time monitoring powered by artificial intelligence (AI), fault diagnostics, and one-click over-the-air (OTA) software updates.
- Automotive-level safety: Use of automotive-grade cell sampling circuits and comprehensive compliance certifications (e.g., CE, TÜV IEC 62619, VDE 2510).
Who is this a good choice for?
The SOLAX T-BAT HS50E energy storage is an ideal choice for owners of single-family homes and small commercial properties seeking a reliable, safe, and scalable photovoltaic system. Thanks to its wide range of capacities and resistance to harsh weather conditions, the system is well suited for those who want to maximize self-consumption of solar energy and provide backup power for their building.
| Parameter | T-BAT HS 5 | T-BAT HS 10 | T-BAT HS 15 | T-BAT HS 20 | T-BAT HS 25 | T-BAT HS 30 |
|---|---|---|---|---|---|---|
| General information | ||||||
| Number of modules | 1 | 2 | 3 | 4 | 5 | 6 |
| Nominal capacity (kWh) | 5,1 | 10,2 | 15,3 | 20,4 | 25,6 | 30,7 |
| Usable energy (90% DOD) (kWh) | 4,6 | 9,2 | 13,8 | 18,4 | 23,0 | 27,6 |
| Nominal voltage (V) | 102,4 | 204,8 | 307,2 | 409,6 | 512,0 | 614,4 |
| Operating voltage range (V) | 90–116 | 180–232 | 270–348 | 360–464 | 450–580 | 540–696 |
| Recommended charge/discharge current (A) | 30 | 30 | 30 | 30 | 30 | 30 |
| Maximum charge/discharge current (A) | 50 | 50 | 50 | 50 | 50 | 50 |
| Rated power (kW) | 3,0 | 6,1 | 9,2 | 12,2 | 15,3 | 18,4 |
| Maximum power (kW) | 5,1 | 10,2 | 15,3 | 20,4 | 25,6 | 30,7 |
| Depth of discharge (%) | 90 | 90 | 90 | 90 | 90 | 90 |
| Communication interface | RS485, CAN | RS485, CAN | RS485, CAN | RS485, CAN | RS485, CAN | RS485, CAN |
| Set dimensions (W × H × D) (mm) | 730 × 558 × 150 | 730 × 876 × 150 | 730 × 1194 × 150 | 730 × 1194 × 150 + 730 × 491 × 150 | 730 × 1194 × 150 + 730 × 809 × 150 | 730 × 1194 × 150 + 730 × 1127 × 150 |
| Control module (BMS) | ||||||
| BMS model | TBMS-MCS0800E-D | TBMS-MCS0800E-D | TBMS-MCS0800E-D | TBMS-MCS0800E-D | TBMS-MCS0800E-D | TBMS-MCS0800E-D |
| BMS dimensions (W × H × D) (mm) | 730 × 165 × 150 | 730 × 165 × 150 | 730 × 165 × 150 | 730 × 165 × 150 | 730 × 165 × 150 | 730 × 165 × 150 |
| BMS weight (kg) | 9,7 | 9,7 | 9,7 | 9,7 | 9,7 | 9,7 |
| Battery module | ||||||
| Battery module model | TP-HS50E | TP-HS50E | TP-HS50E | TP-HS50E | TP-HS50E | TP-HS50E |
| Battery type | Lithium-ion (LFP) | Lithium-ion (LFP) | Lithium-ion (LFP) | Lithium-ion (LFP) | Lithium-ion (LFP) | Lithium-ion (LFP) |
| Module capacity (kWh) | 5,1 | 5,1 | 5,1 | 5,1 | 5,1 | 5,1 |
| Module dimensions (W × H × D) (mm) | 730 × 318 × 150 | 730 × 318 × 150 | 730 × 318 × 150 | 730 × 318 × 150 | 730 × 318 × 150 | 730 × 318 × 150 |
| Module weight (kg) | 47,0 | 47,0 | 47,0 | 47,0 | 47,0 | 47,0 |
| Series box | ||||||
| Series box dimensions (W × H × D) (mm) | 167 × 91,5 × 121 | 167 × 91,5 × 121 | 167 × 91,5 × 121 | 167 × 91,5 × 121 | 167 × 91,5 × 121 | 167 × 91,5 × 121 |
| Series box weight (kg) | 1,3 | 1,3 | 1,3 | 1,3 | 1,3 | 1,3 |
| General specification | ||||||
| Mounting method | Floor or wall mounting | Floor or wall mounting | Floor or wall mounting | Floor or wall mounting | Floor or wall mounting | Floor or wall mounting |
| Operating temperature range (°C) | Charging: 0…53°C (without heating) / -30…53°C (with heating); Discharging: -20…53°C (without heating) / -30…53°C (with heating) | Charging: 0…53°C (without heating) / -30…53°C (with heating); Discharging: -20…53°C (without heating) / -30…53°C (with heating) | Charging: 0…53°C (without heating) / -30…53°C (with heating); Discharging: -20…53°C (without heating) / -30…53°C (with heating) | Charging: 0…53°C (without heating) / -30…53°C (with heating); Discharging: -20…53°C (without heating) / -30…53°C (with heating) | Charging: 0…53°C (without heating) / -30…53°C (with heating); Discharging: -20…53°C (without heating) / -30…53°C (with heating) | Charging: 0…53°C (without heating) / -30…53°C (with heating); Discharging: -20…53°C (without heating) / -30…53°C (with heating) |
| Maximum operating altitude (m) | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 |
| Operating environment | Outdoor / indoor | Outdoor / indoor | Outdoor / indoor | Outdoor / indoor | Outdoor / indoor | Outdoor / indoor |
| Protection rating | IP66 | IP66 | IP66 | IP66 | IP66 | IP66 |
| Allowable relative humidity (%) | 5–95 (non-condensing) | 5–95 (non-condensing) | 5–95 (non-condensing) | 5–95 (non-condensing) | 5–95 (non-condensing) | 5–95 (non-condensing) |
| Standards and certifications | ||||||
| Certifications and standards | CE, TÜV (IEC 62619), IEC 60730, IEC 62040, IEC 63056, VDE 2510, IEC 60529:2013 (IP66) | CE, TÜV (IEC 62619), IEC 60730, IEC 62040, IEC 63056, VDE 2510, IEC 60529:2013 (IP66) | CE, TÜV (IEC 62619), IEC 60730, IEC 62040, IEC 63056, VDE 2510, IEC 60529:2013 (IP66) | CE, TÜV (IEC 62619), IEC 60730, IEC 62040, IEC 63056, VDE 2510, IEC 60529:2013 (IP66) | CE, TÜV (IEC 62619), IEC 60730, IEC 62040, IEC 63056, VDE 2510, IEC 60529:2013 (IP66) | CE, TÜV (IEC 62619), IEC 60730, IEC 62040, IEC 63056, VDE 2510, IEC 60529:2013 (IP66) |
*Test conditions: 100% DOD, charge and discharge at 0.2 C at +25°C. Usable energy (90% DOD) may vary depending on inverter settings. Actual charge/discharge current and power depend on the battery cell temperature.
