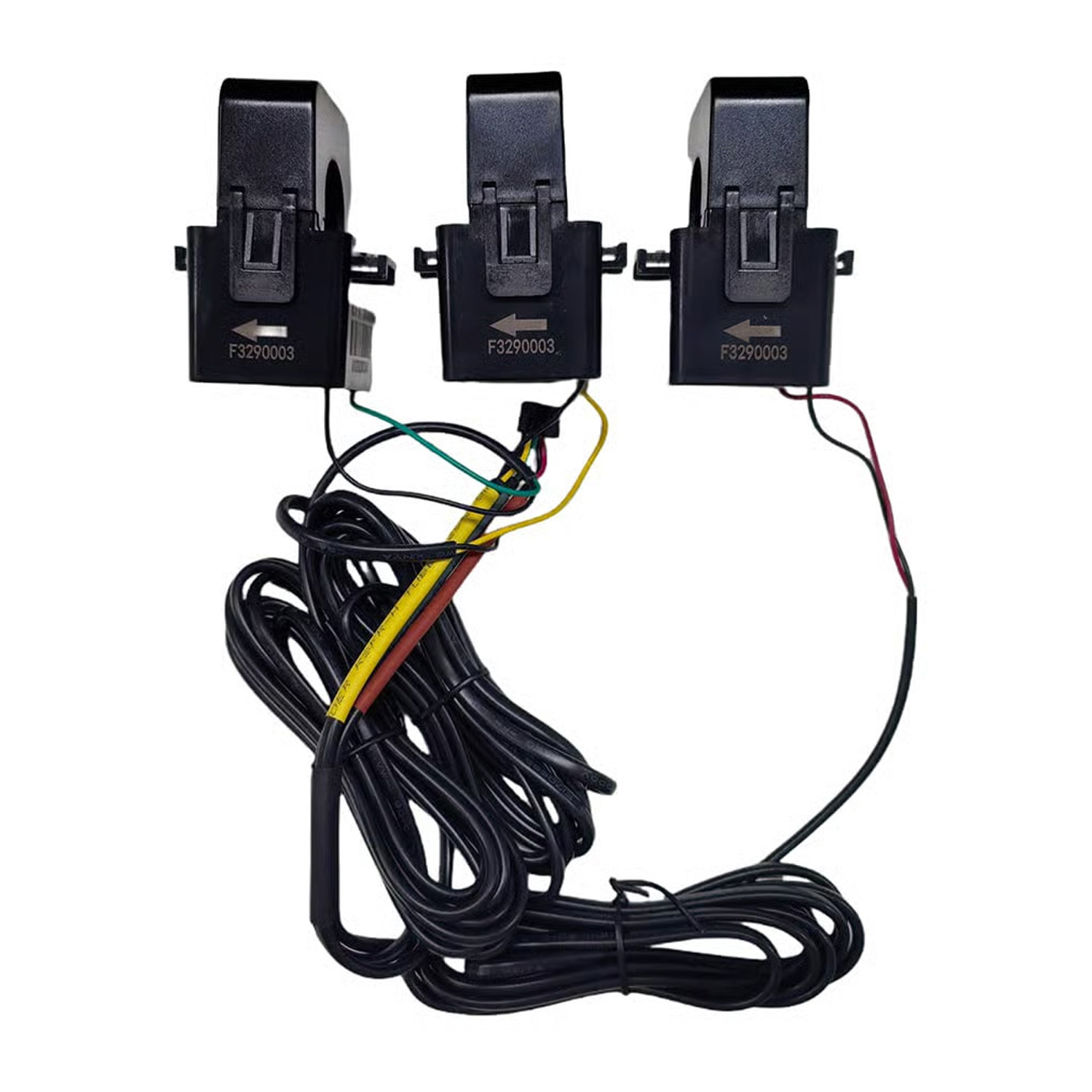

SolaX Accessories – SCT-50 Split Core Current Transformer 600A/40mA

The SolaX SCT-50 Split Core Current Transformer 600A/40mA is a split-core current transformer with an extended measurement range, designed for precise measurement of AC current up to 600 A in larger photovoltaic installations and industrial power systems. The split-core design allows installation without disconnecting existing conductors — simply clamp it around the phase conductor, which greatly simplifies fitting in existing distribution boards and cabinets. The high 600 A range and 40 mA output provide accurate measurements in large commercial sites, halls, and buildings with substantial mains connections.

Key features of the SolaX SCT-50 Split Core Current Transformer 600A/40mA:

• Split-core design – installation without cutting or disconnecting cables, ideal for retrofitting existing distribution boards and electrical cabinets.
• Measurement range up to 600 A – suitable for larger commercial and industrial installations where currents far exceed typical household levels.
• 40 mA output – compatible with SolaX devices and systems that support external current transformers.
• AC current measurement – enables monitoring of energy flow, power balancing, and more comprehensive analysis of PV system and facility performance.
• Fast, non-invasive installation – clamp-style holder lets you enclose the conductor in one motion, without shutting down power or reworking wiring.
• Genuine SolaX system component – easy integration with the manufacturer’s inverters and energy management systems (EMS).
• Ideal for advanced monitoring and control – well suited for export-limiting functions, energy consumption analysis, and optimizing overall system operation.

Who is this a good choice for?

The SolaX SCT-50 Split Core Current Transformer 600A/40mA is an excellent choice for PV installers, system designers, and energy system integrators working on large commercial or industrial installations who need precise, easy-to-install AC current measurement with a high range, fully compatible with SolaX monitoring and energy management systems.
