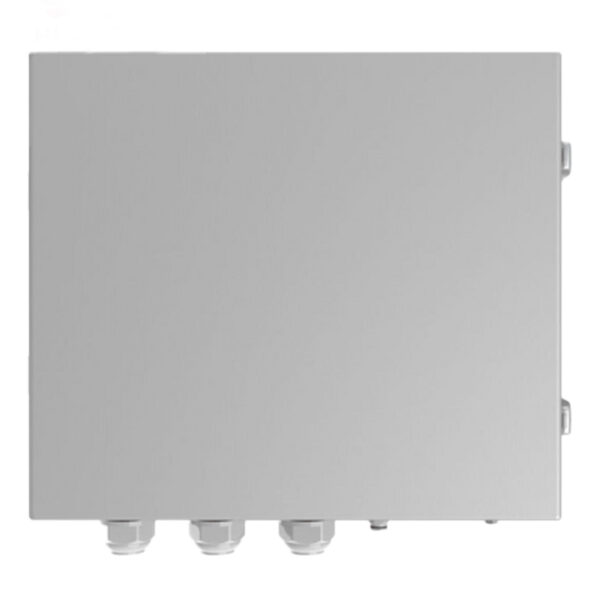

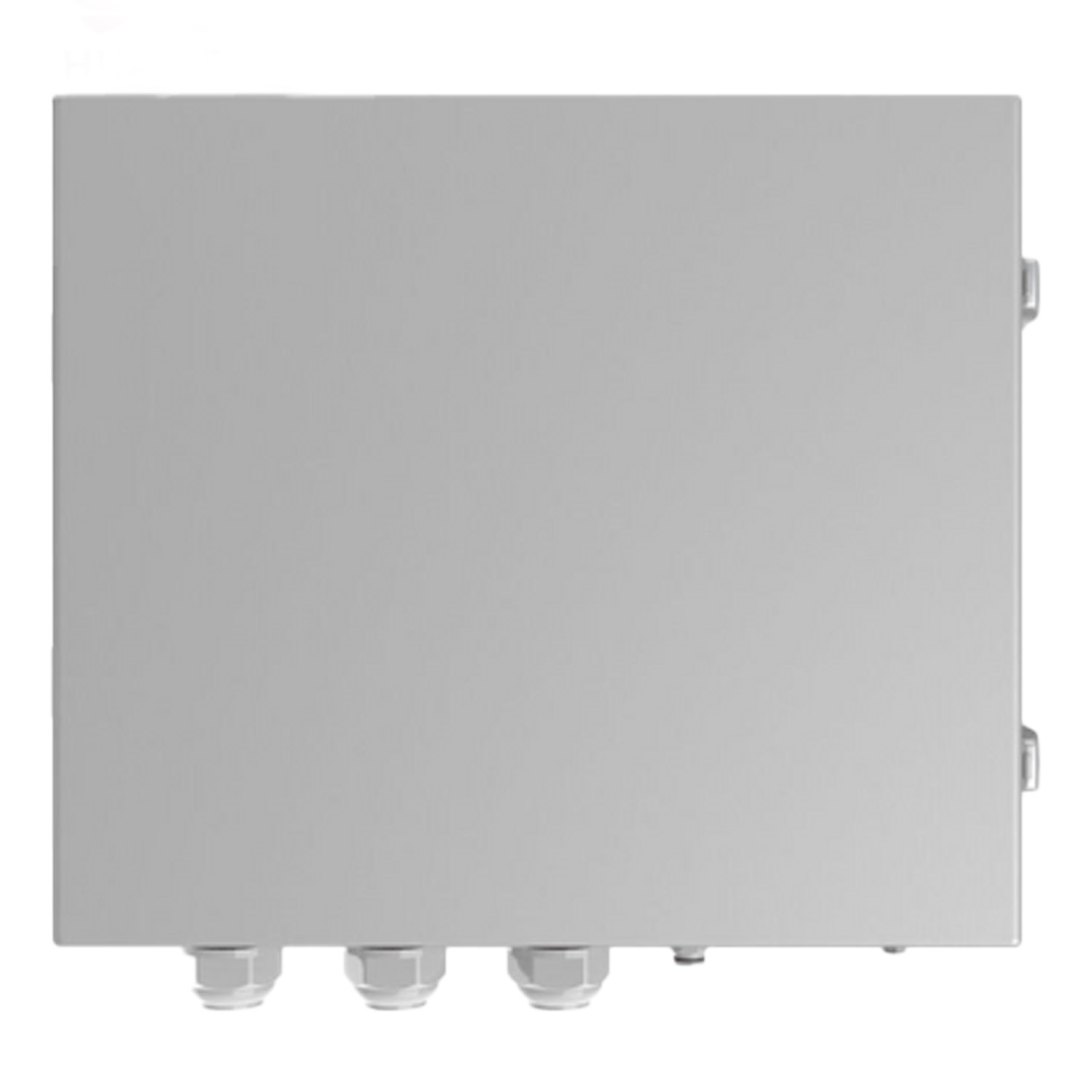

Backup BOX-B1 HUAWEI for 3-phase inverters of the M1 series, maximum power 3.3kVA
SKU: F2A011
EAN: 5905951585055
| Manufacturer | |
|---|---|
| Rated power | |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| Weight | 14,3 kg |
| CN | 85371098 |
Warranty Huawei Backup BOX-B1
warranty-huawei-backup-box-b1.pdf
Product details
| Manufacturer | |
|---|---|
| Rated power | |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| Weight | 14,3 kg |
| CN | 85371098 |
Huawei Backup Box
The Huawei Backup Box is a reliable solution that ensures stable backup power during outages. Designed for ease of use and maximum efficiency, this product perfectly meets the needs of households and small businesses.
Key Features:
- Simple – The Backup Box automatically detects and switches to backup power, ensuring uninterrupted operation without the need for manual intervention.
- Reliable – With Huawei’s advanced technology, the Backup Box offers stable and trustworthy backup power in any situation.
Why choose the Huawei Backup Box?
This compact and easy-to-install product is the perfect solution for those looking to protect their homes or businesses from unexpected power outages. The Backup Box guarantees peace of mind, allowing you to continue your daily activities without interruptions.
Warranty Huawei Backup BOX-B1
warranty-huawei-backup-box-b1.pdf
| Backup Box-B0 | Backup Box-B1 | |
|---|---|---|
| AC Output (On Grid) | ||
| Grid Connection | Single-phase | Three-phase |
| Nominal Voltage | 220 V / 230 V | 380 V / 400 V |
| AC Frequency | 50Hz / 60Hz | 50Hz / 60Hz |
| AC Output Voltage Range | 198 V ~ 253 V | 342 V ~ 440 V |
| AC Output (Backup) | ||
| Load Connection | Single-phase | Single-phase |
| Nominal Voltage | 220 V / 230 V | 220 V / 230 V |
| AC Frequency | 50Hz / 60Hz | 50Hz / 60Hz |
| Maximum Apparent Power | 5,000 VA | 3,300 VA |
| Maximum Output Current | 22.7 A | 15.2 A |
| Switching Time | < 3 s | < 3 s |
| AC Input (Inverter) | ||
| Nominal Voltage | 220 V / 230 V | 380 V / 400 V |
| AC Frequency | 50Hz / 60Hz | 50Hz / 60Hz |
| Compatible Inverter | SUN2000-2/3/3.68/4/4.6/5/6KTL-L1 | SUN2000-3/4/5/6/8/10KTL-M1 |
| General Information | ||
| Operating Temperature Range | -25°C ~ +45°C | -25°C ~ +45°C |
| Relative Humidity | 0% RH – 100% RH | 0% RH – 100% RH |
| Dimensions (W x H x D) | 400 x 350 x 130 mm | 400 x 350 x 130 mm |
| Weight | 11 kg | 11 kg |
| Protection Rating | IP 65 | IP 65 |
