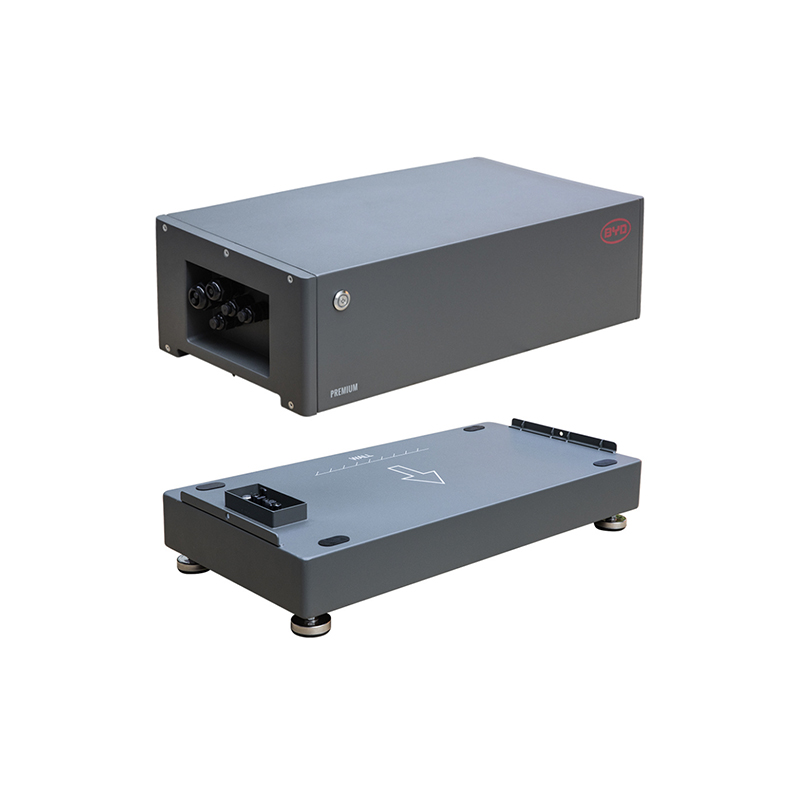

Battery-Box Premium HVM
Battery-Box Premium HVM is a modular BYD energy storage system based on lithium iron phosphate (LiFePO4) cells. It supports on-grid, on-grid with backup power, and off-grid operation. Its modular design allows for expansion, while the patented internal plug-in connection simplifies installation.
Key advantages of Battery-Box Premium HVM
- Scalable usable energy: 8.28–22.08 kWh in a configuration with 3–8 modules; the maximum capacity of the expanded system is 66.2 kWh. The system’s usable energy may depend on the inverter brand.
- Full charge and discharge cycle efficiency: at least 96%.
- Backup power: maximum output current of 50 A and peak current of 75 A for 3 seconds. Power is limited at temperatures from -10 to +5°C.
- Compatibility with single- and three-phase inverters: selection of the device and the required number of modules according to the compatibility list; CAN / RS485 communication.
- Indoor and outdoor installation: IP55 protection rating, floor placement and operating temperature range from -10 to +50°C.
- 10-year warranty: under the terms specified in the BYD Battery-Box Premium limited warranty document.
Who is this a good choice for?
This is an option for users of grid-connected installations who need energy storage or backup power, as well as for users of off-grid systems. Expandability allows the capacity to be tailored to individual needs, while compatibility with single-phase and three-phase inverters makes it easier to select a solution according to the manufacturer’s compatibility list.
| Parameter | HVM 8.3 | HVM 11.0 | HVM 13.8 | HVM 16.6 | HVM 19.3 | HVM 22.1 |
|---|---|---|---|---|---|---|
| Battery specifications | ||||||
| Cell type | Lithium iron phosphate (LiFePO4) | |||||
| Battery module | HVM | |||||
| Module energy (kWh) | 2,76 | |||||
| Module voltage (V) | 51,2 | |||||
| Module weight (kg) | 35 / 38 | |||||
| Number of modules | 3 | 4 | 5 | 6 | 7 | 8 |
| Electrical parameters | ||||||
| Usable energy (kWh) | 8,28 | 11,04 | 13,80 | 16,56 | 19,32 | 22,08 |
| Maximum output current (A) | 50 | |||||
| Peak output current (A) | 75 | |||||
| Peak current duration (s) | 3 | |||||
| Nominal voltage (V) | 153.6 V | 204.8 V | 256 V | 307.2 V | 358.4 V | 409.6 V |
| Operating voltage range (V) | 120 - 177 | 160 - 236 | 200 - 295 | 240 - 354 | 280 - 413 | 320 - 472 |
| Efficiency | ||||||
| Full charge and discharge cycle efficiency (%) | ≥ 96% | |||||
| Dimensions and weight | ||||||
| Dimensions (H × W × D) (mm) | 995 x 585 x 298 | 1228 x 585 x 298 | 1461 x 585 x 298 | 1694 x 585 x 298 | 1927 x 585 x 298 | 2160 x 585 x 298 |
| Weight (kg) | 119 - 129 | 153 - 167 | 188 - 205 | 222 - 243 | 257 - 281 | 291 - 319 |
| Operating conditions and installation | ||||||
| Operating temperature (°C) | -10°C to +50°C | |||||
| Degree of protection | IP55 | |||||
| Installation location | Indoors / outdoors | |||||
| Mounting method | Floor Stand | |||||
| Communication and compatibility | ||||||
| Communication interface | CAN / RS485 | |||||
| Applications | ON Grid / ON Grid + Backup / OFF Grid | |||||
| Compatible inverters | Fronius / KOSTAL / SMA / KACO new energy / solis / Deye... | |||||
| Certificates | ||||||
| Certificates and standards | VDE2510-50 / IEC62619 / CEC / CE / UN38.3 | |||||
| Warranty | ||||||
| Product warranty (years) | 10 | |||||
Usable DC energy at 100% depth of discharge, 0.2C charging and discharging, and +25°C; usable system energy depends on the inverter. Power is limited between -10°C and +5°C. The two module versions have the same specifications but different weights and can be combined in a single tower. Check the inverter compatibility list for the required number of modules.
