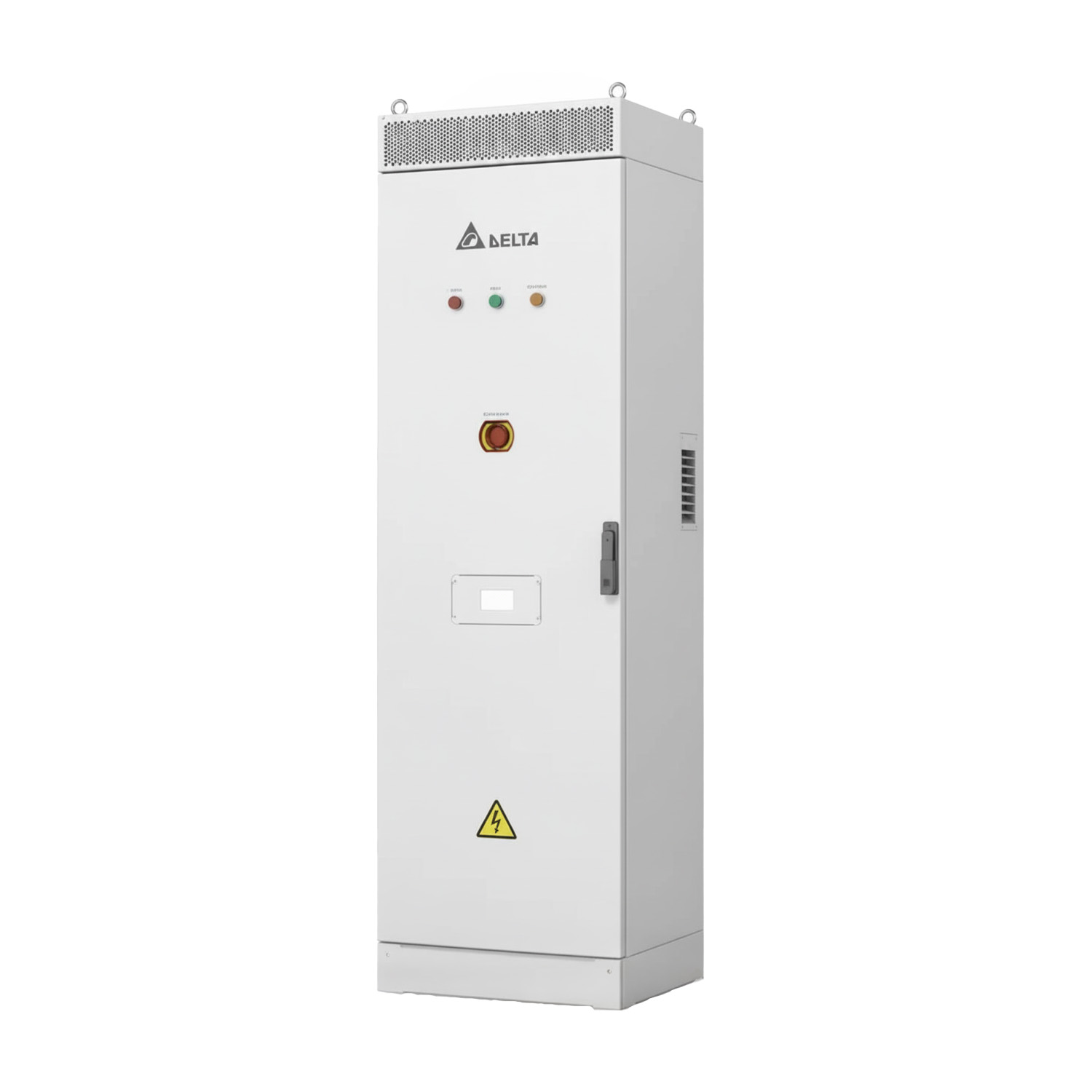

Power Conditioning System (PCS) Delta PCS100HV
The Delta PCS100HV Power Conditioning System (PCS) is a bidirectional inverter for energy storage, designed for both on-grid and off-grid applications such as backup power, peak shaving, load shifting, and self-consumption of PV energy. It features industry-leading efficiency, high performance, and low standby losses. Its compact design and scalability allow flexible configuration and integration with popular battery systems, and its black start capability makes it ideal for backup power and microgrid applications.
Key features of the Delta PCS100HV Power Conditioning System (PCS):
- Efficient and precise power control: 100 kW power at 400 V AC, peak efficiency of 98%, and fast power response time under 20 ms.
- Versatile energy storage applications: Reactive power compensation, peak shaving, load shifting, black start capability for backup power and microgrids, and operation in both on-grid and off-grid modes.
- Flexible system configuration: Scalable by paralleling multiple units and support for 3-phase, 4-wire loads without the need for a transformer.
- Wide battery compatibility: Integration with major branded battery systems, including lithium-ion, lead-acid, and flow batteries.
- Advanced operating parameters: Wide DC input voltage range (650-1350 V), high IP55 protection rating, and multiple protections including reverse DC polarity protection and DC isolation detection.
- Wide range of applications: Ideal for commercial buildings, hospitals, charging stations, university campuses, and factories.
Who is this a good choice for?
The Delta PCS100HV is an excellent choice for developers and operators of commercial and industrial energy storage systems who need a reliable, efficient, and scalable energy management solution. Its ability to operate across a wide range of applications—from improving power quality to creating microgrids—combined with high efficiency and compatibility with various battery technologies, makes it a versatile tool for optimizing energy costs, ensuring continuity of supply, and integrating renewable energy sources.
| Parameter | PCS100HV |
|---|---|
| AC connection | |
| Rated grid voltage (Vac) | 400 Vac (3P,N,PE) or (3P,PE) |
| AC voltage range (Vac) | 352 ~ 440 Vac |
| Rated grid frequency (Hz) | 50 Hz |
| Frequency range (Hz) | 45 ~ 55 Hz |
| Rated AC power (kVA / kW) | 100 kVA / kW |
| Rated AC current (A) | 145 A |
| Max. continuous AC current (A) | 167 A |
| Maximum AC power (kVA / kW) | 110 kVA / kW |
| Current THD (%) | < 3% |
| DC current injection | <0.5% of rated current |
| Power factor | -1 to 1, continuously adjustable |
| DC connection | |
| DC voltage range (Vdc) | 650 ~ 1,350 Vdc for 3P3W ¹⁾ / 700 ~ 1,350 Vdc for 3P4W in off-grid mode ¹⁾, ²) |
| DC start voltage (V) | 650V |
| Rated discharge / charge power (kW) | 102 kW / 98 kW |
| Max discharge / charge current (A) | 157A / 151A |
| Standalone operation | |
| Rated output voltage (Vac) | 400Vac (3P,N,PE) |
| Rated output power (kVA / kW) | 100 kVA / kW with linear load; 80 kVA with RCD load (Ipk≤240A) ³⁾ |
| Rated output current (A) | 145 A |
| Output voltage THD (%) | < 3% @ rated linear load |
| Performance | |
| Peak efficiency (%) | 98% |
| Standby loss (W) | <25W @ cold mode |
| Environment | |
| Max. altitude above sea level (m) | 4,000 m, power derating above 2000 m |
| Operating temperature (°C) | -30 °C to +60 °C, power derating above 45 °C |
| Humidity (%) | 0 to 95% RH, non-condensing |
| Acoustic noise (dB) | < 70 dB @ 1 m @25°C @ rated conditions, max. 75 dB |
| Cooling | Forced air with speed control |
| Enclosure protection rating (IP) | IP55 |
| General | |
| User interface | LED, EPO, Ethernet |
| Communication | Ethernet/Modbus TCP |
| Dimensions (W x H x D) (mm) | 600 x 2000 x 500 mm |
| Net weight (kg) | 230 kg |
| Certification | Safety: IEC 62477-1, EN 62477-1
Grid code: AS/NZS 4777.2:2020 EMC: IEC/EN 61000-6-2, IEC/EN 61000-6-4 Vibration: IEC 60068-2-6:2007 |
| Protection | Reverse DC polarity protection / OVP / UVP / OCP / DC insulation detection |
| Product compliance | CE, RCM |
| Compatible battery chemistries | Lithium-ion, lead-acid, flow batteries |
1) Output power will be reduced if DC voltage is higher than 1250V.
2) Minimum DC voltage should be greater than 750V if the load is 100% unbalanced.
3) Transformer, motor or rectifier loads with large inrush current (Ipk>240A) are not included.
* Specifications are subject to change without prior notice.
