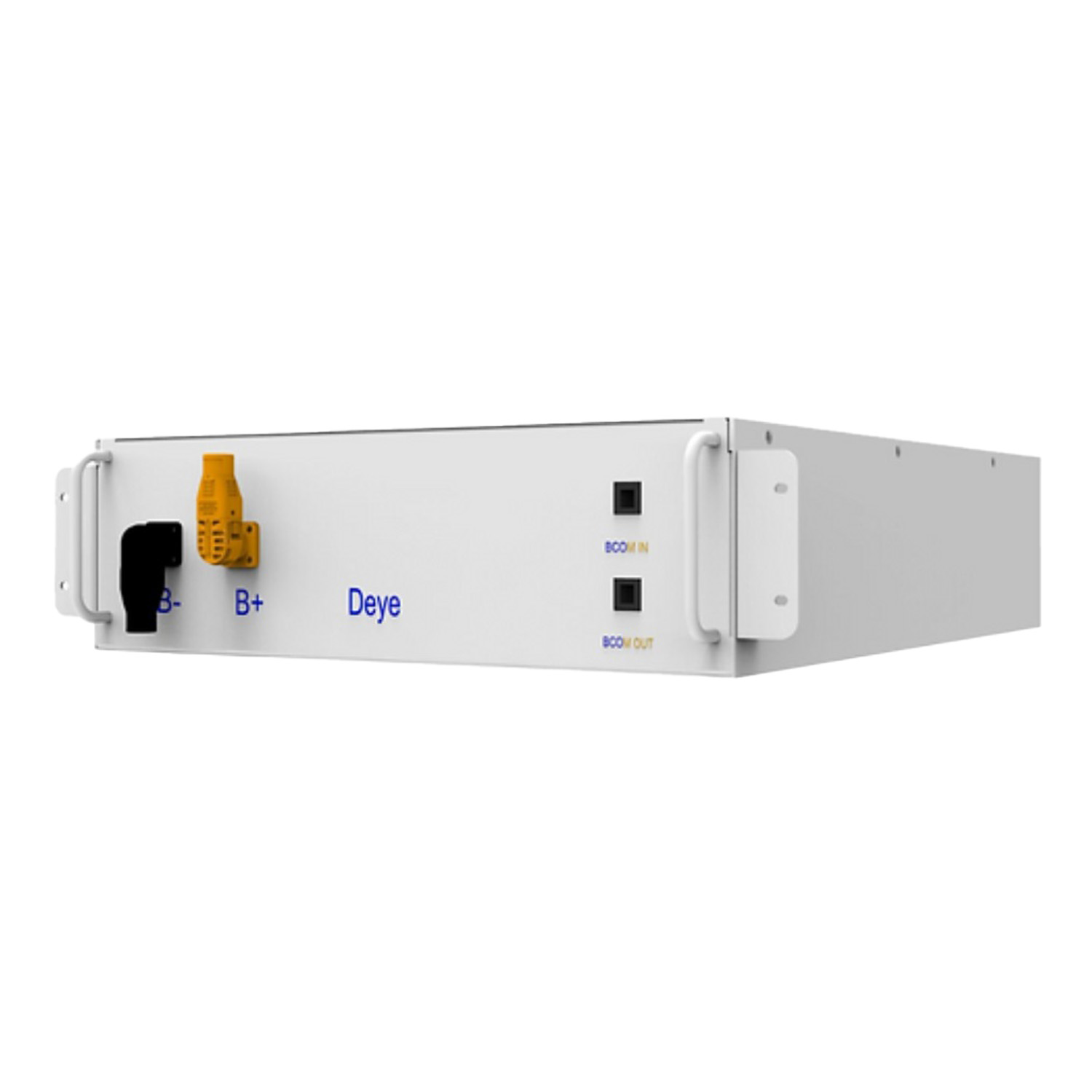

DEYE BOS-G Pack 5.1 Pro
| Manufacturer | |
|---|---|
| Capacity | |
| Battery cell type | |
| Module voltage | |
| Charging current | |
| Discharge current | |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| Weight | 49 kg |
| CN | 85076000 |
Gross
Product details
| Manufacturer | |
|---|---|
| Capacity | |
| Battery cell type | |
| Module voltage | |
| Charging current | |
| Discharge current | |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| Weight | 49 kg |
| CN | 85076000 |
Deye BOS-G High-Voltage Energy Storage System
The Deye BOS-G system is an advanced, modular energy storage solution designed for scalability and high performance. It consists of a central cluster control unit (BOS-G-PDU-2) and modular 5.12 kWh battery packs (BOS-G-Pack5.1) based on the safe and durable LiFePO4 technology. This system enables the construction of custom high-voltage energy banks, perfectly tailored to the needs of demanding residential and commercial installations.
Key features of the Deye BOS-G system:
- Modular, scalable design: The system is built from individual 5.12 kWh battery modules, allowing flexible expansion of the storage and adjustment of capacity to meet specific needs.
- Safe LiFePO4 technology: Use of lithium iron phosphate (LFP) cells ensures the highest level of safety, long service life, and excellent thermal stability compared with other lithium‑ion technologies.
- Central high-voltage management: The BOS-G-PDU-2 control unit manages the entire battery cluster, operating over a wide voltage range from 200 to 1000 Vdc and complying with European standards.
- High current performance: The system can operate with a nominal charge/discharge current of 100 A and peak currents up to 120 A, making it suitable for high-power applications.
- Wide operating temperature range: Battery modules can reliably operate across a wide temperature range, with discharge capability down to -20°C, ensuring continuity in harsh conditions.
Who is this a good choice for?
This is an excellent solution for installers and owners of large residential buildings or commercial properties who need an efficient, safe, and above all scalable energy storage system. The system’s high‑voltage architecture and modularity allow the creation of large, customized energy banks that can be expanded in the future. With reliable LFP technology, the Deye BOS-G system provides a solid foundation for any modern high-power hybrid or off‑grid installation.
| Parameter | BOS-G-PDU-2 | BOS-G-Pack5.1 |
|---|---|---|
| Description | ||
| Description | High-voltage battery cluster control box compliant with European or British standards | 5.12 kWh battery module |
| Technical specifications | ||
| Battery type | Not applicable | LiFePO₄ (LFP) |
| Operating voltage (Vdc) | 200 ~ 1000 | Not applicable |
| Nominal voltage (Vdc) | Not applicable | 51.2 |
| Rated capacity (Ah) | Not applicable | 100 |
| Rated energy (kWh) | Not applicable | 5.12 |
| Nominal charge/discharge current (A) | 100 | 100 |
| Maximum charge/discharge current (A) | 120 | Not applicable |
| Peak discharge current (A) | Not applicable | 120 |
| Rated DC input | 12±2%V / 4.15A | Not applicable |
| Operating temperature range (°C) | -20 ~ 65 | Not applicable |
| Charging temperature (°C) | Not applicable | 0 ~ 55 |
| Discharging temperature (°C) | Not applicable | -20 ~ 55 |
| Storage temperature (°C) | Not applicable | 0 ~ 35 |
| Protection rating | IP20 | IP20 |
| Dimensions (W×D×H) (mm) | 440×570×150 | 440×585×133 |
| Approximate weight (kg) | 19 | 46 |
| Standard configuration | ||
| Standard configuration | ① 120 ohm termination resistor
② Communication cable 250 mm ③ Power cable 140 mm ④ Power cable 2.1 m ⑤ EPCable2.0 (standard 2 m power cable for the external PCS positive terminal) ⑥ ENCable2.0 (standard 2 m power cable for the external PCS negative terminal) ⑦ Communication cable 1000 mm between two battery cabinets ⑧ Power cable 1000 mm between two battery cabinets ⑨ Grounding wire 140 mm |
① Communication cable 160 mm
② Power cable 200 mm |
