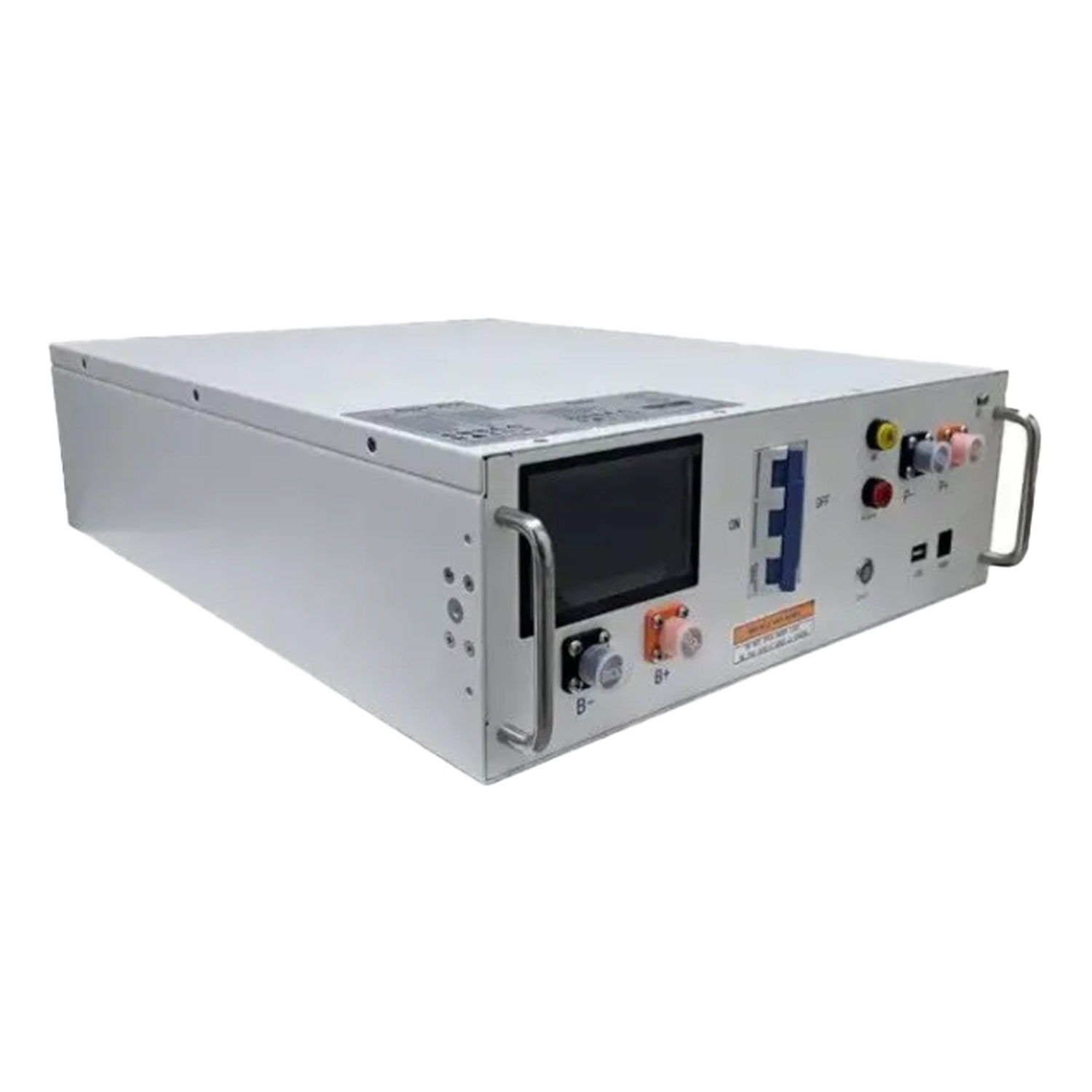

DEYE HVB750V/100A-EU Control Module
SKU: F11D71
EAN: 5905951587813
Datasheet Deye HVB750V/100A-EU
datasheet-deye-hvb750v-100a-eu.pdf
Product details
Deye BOS-G Energy Storage
The Deye BOS-G energy storage system is a modern device designed for safe and efficient energy storage. With the use of LiFePO4 technology, an intelligent BMS system, and a modular design, this product offers reliability, longevity, and ease of use.
Key Features of the Deye BOS-G Energy Storage:
- Safety and Reliability – The use of LiFePO4 technology ensures high safety, long lifespan, and minimizes memory effect and self-discharge.
- Intelligent BMS System – Protection against over-discharge, overcharge, overload, high and low temperatures, as well as automatic voltage management and cell balance.
- Flexible Configuration – Capability to connect modules in parallel to increase capacity and power, along with optional remote software updates.
- Wide Operating Temperature Range – The device operates in temperatures from -20°C to 55°C, providing excellent performance and long lifespan in various conditions.
- Eco-Friendly – Non-toxic and environmentally friendly design free from contaminants.
Who is this a good choice for?
The Deye BOS-G energy storage system is an ideal solution for users seeking a safe, efficient, and scalable energy storage option. Its versatility and reliability make it suitable for both residential and commercial applications, especially where high energy efficiency and safety are of utmost importance.
Datasheet Deye HVB750V/100A-EU
datasheet-deye-hvb750v-100a-eu.pdf
| Parameter | BOS-G | ||
|---|---|---|---|
| Main Parameters | |||
| Cell Chemistry | LiFePO4 | LiFePO4 | LiFePO4 |
| Module Energy (kWh) | 5.12 | 5.12 | 5.12 |
| Nominal Module Voltage (V) | 51.2 | 51.2 | 51.2 |
| Module Capacity (Ah) | 100 | 100 | 100 |
| Number of Battery Modules in Series (Optional) | 4 | 8 | 12 |
| Nominal System Voltage (V) | 204.8 | 409.6 | 614.4 |
| Operating Voltage Range (V) | 180 ~ 230 | 359 ~ 460 | 538 ~ 691 |
| System Energy (kWh) | 20.48 | 40.96 | 61.44 |
| Usable System Energy (kWh) | 18.5 | 36.86 | 55.29 |
| Charging/Discharging Current (A) | Recommended: 50 Maximum: 100 Peak (2 minutes, 25°C): 125 | Recommended: 50 Maximum: 100 Peak (2 minutes, 25°C): 125 | Recommended: 50 Maximum: 100 Peak (2 minutes, 25°C): 125 |
| Operating Parameters | |||
| Operating Temperature Range (°C) | Charging: 0 ~ 50 / Discharging: -20 ~ 55 | Charging: 0 ~ 50 / Discharging: -20 ~ 55 | Charging: 0 ~ 50 / Discharging: -20 ~ 55 |
| Status Indicator | Yellow: High battery voltage active Red: Battery system alarm | Yellow: High battery voltage active Red: Battery system alarm | Yellow: High battery voltage active Red: Battery system alarm |
| Communication Port | CAN2.0, RS485 | CAN2.0, RS485 | CAN2.0, RS485 |
| Humidity | 5% ~ 85% RH | 5% ~ 85% RH | 5% ~ 85% RH |
| Maximum Height Above Sea Level | ≤2000m | ≤2000m | ≤2000m |
| IP Protection Rating | IP20 | IP20 | IP20 |
| Storage Temperature (°C) | 0 ~ 35 | 0 ~ 35 | 0 ~ 35 |
| Physical Data | |||
| Dimensions (W × D × H, mm) | 580 × 590 × 1615 | 580 × 590 × 1615 | 580 × 590 × 2200 |
| Weight (kg) | 258 | 434 | 628 |
| Installation Location | Cabinet Mounting | Cabinet Mounting | Cabinet Mounting |
| Recommended Depth of Discharge | 90% | 90% | 90% |
| Lifecycle, Warranty, and Certification | |||
| Lifecycle | (25±2°C, 0.5C/0.5C, 70% EOL) ≥6000 | (25±2°C, 0.5C/0.5C, 70% EOL) ≥6000 | (25±2°C, 0.5C/0.5C, 70% EOL) ≥6000 |
| Warranty | 10 years | 10 years | 10 years |
| Certification | CE, IEC62619, UL1973, UL9540A, UN38.3 | CE, IEC62619, UL1973, UL9540A, UN38.3 | CE, IEC62619, UL1973, UL9540A, UN38.3 |
