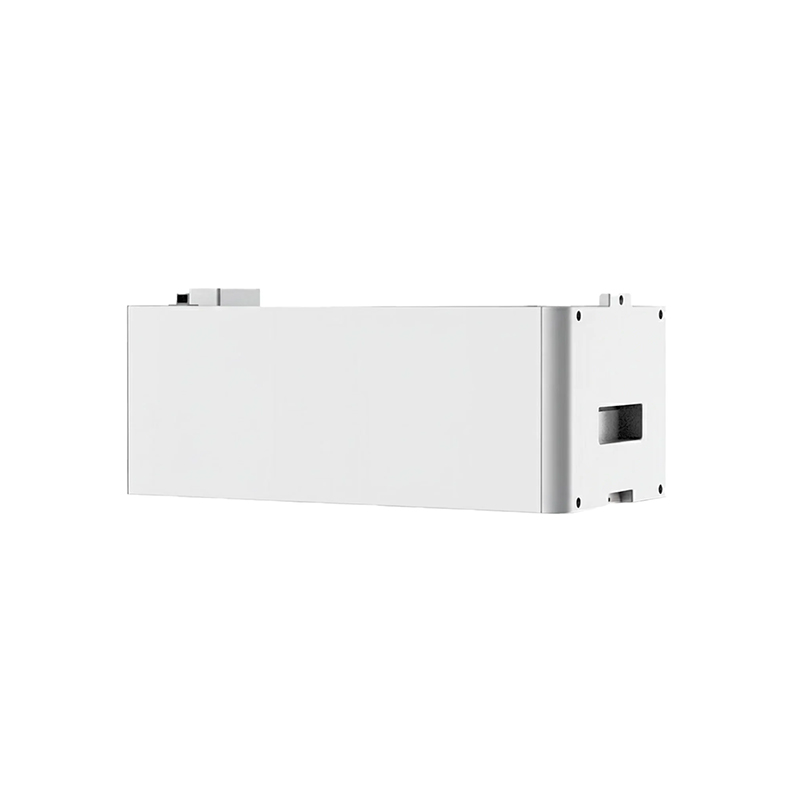

Battery module – DYNESS – HV9640 – HV
Incl. VAT
DYNESS moduł bateryjny 96V 40Ah3.84KWh,
Z funkcją grzania.
Product details
Tower Pro
Tower Pro is a high-voltage energy storage system for residential buildings using LiFePO₄ batteries. Self-configuring modules can be stacked on top of each other, simplifying installation and maintenance. The ability to connect up to 12 units in parallel allows the system to be expanded to 276.48 kWh.
Key benefits of Tower Pro
- Scalable capacity: 7.68–23.04 kWh per unit, depending on the model, and up to 276.48 kWh when connected in parallel.
- Charging and discharging up to 1C: maximum continuous power is 7.68–23.04 kW, depending on the model, when communicating with the inverter. DC-side charging and discharging efficiency exceeds 97%.
- Fire protection: built-in aerosol fire extinguisher and intelligent fire suppression system that can activate within 5 seconds in the event of a fire.
- Optional heating: enables charging and discharging at temperatures from −20 to 55°C. The system has an IP55 protection rating.
- Durability and warranty: at least 8000 cycles at a charge and discharge rate of 0.2C, a temperature of 25°C and a depth of discharge of 95%. The warranty is 10 years.
- Easy installation: the modular design requires no wiring, and installation can be completed by one person in 15 minutes.
Who is this a good choice for?
Tower Pro is designed for homeowners and households needing an expandable energy storage system. Its modular capacity allows the system size to be tailored to requirements, while optional heating enables operation at sub-zero temperatures. It is also an option for users who value built-in fire protection and a 10-year warranty.
| Parameter | Tower Pro TP7 | Tower Pro TP11 | Tower Pro TP15 | Tower Pro TP19 | Tower Pro TP23 |
|---|---|---|---|---|---|
| Battery data | |||||
| Battery technology | LiFePO₄ | ||||
| Battery module name | HV9640 | ||||
| Number of battery modules | 2 | 3 | 4 | 5 | 6 |
| Rated energy (kWh) | 7,68 | 11,52 | 15,36 | 19,2 | 23,04 |
| Usable energy (kWh) | 7,296 | 10,944 | 14,592 | 18,24 | 21,888 |
| Nominal capacity (Ah) | 40 | ||||
| Recommended depth of discharge DOD (%) | 95 | ||||
| Cycle life (cycles) | ≥8000 | ||||
| Electrical data | |||||
| Operating voltage (V) | 168~216 | 252~324 | 336~432 | 420~540 | 504~648 |
| Rated voltage (V) | 192 | 288 | 384 | 480 | 576 |
| Maximum continuous charging and discharging power (kW) | 7,68 | 11,52 | 15,36 | 19,2 | 23,04 |
| Recommended charging and discharging current (A) | 20 | ||||
| Recommended charge and discharge rate (C) | 0,5 | ||||
| Maximum charging and discharging current (A) | 40 | ||||
| Maximum charge and discharge rate (C) | 1 | ||||
| Dimensions and weight | |||||
| Product dimensions (H × W × L) (mm) | 587/310/788 | 587/310/1009 | 587/310/1230 | 587/310/1451 | 587/310/1672 |
| Gross weight (kg) | 109,5 | 150 | 190,5 | 231 | 271,5 |
| Operating conditions | |||||
| Charging temperature range (°C) | 0~55°C/-20~55°C (with heating function) | ||||
| Discharge temperature range (°C) | -10~55°C/-20~55°C (with heating function) | ||||
| Protection rating | IP55 | ||||
| Functions and protections | |||||
| Heating function | PI heating (optional) | ||||
| Fire protection function | Aerosol fire extinguisher | ||||
| Remote OTA update | Built-in | ||||
| Communication and expansion | |||||
| Communication | CAN/RS485/RS232 | ||||
| Maximum number of Tower Pro systems connected in parallel | 12 | ||||
| Compatible inverters | KOSTAL/Ingeteam/Solis/GoodWe/Growatt/Solplanet/SAJ/DEYE/Hoymiles/SOLINTEG/Kaco etc. | ||||
| Certificates | |||||
| Certificates and standards | IEC62619/IEC63056/IEC62477/IEC62040/CE-EMC/VDE2510-50 | ||||
| Warranty | |||||
| Product warranty (years) | 10 | ||||
The maximum continuous charging and discharging rate during communication with the inverter is 1 C. Cycle life test conditions: charging and discharging at 0.2 C, temperature 25 °C, DOD 95%.
