Energy storage system – DYNESS – POWERBRICK PLUS – LV
Incl. VAT
DYNESS PowerBrick Plus niskonapięciowy moduł bateryjny 16,07kWh z BMS,
Z funkcją grzania.
Product details
PowerBrick Plus

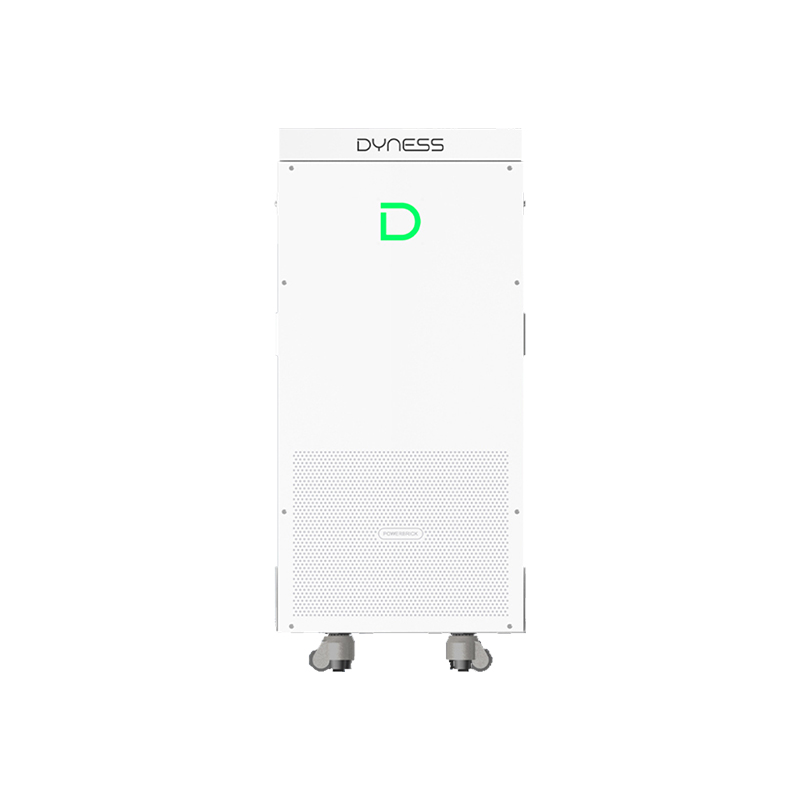

PowerBrick Plus is a low-voltage energy storage system designed for households, using LiFePO4 cells with a capacity of 314 Ah. It provides 16.07 kWh of nominal energy and 15.27 kWh of usable energy. It supports parallel connection of up to 50 units, and its IP65 protection rating allows for indoor and outdoor installation.
Key benefits of PowerBrick Plus
- Energy storage expansion: ability to connect up to 50 units in parallel and achieve a total capacity of up to 803 kWh.
- Charging and discharging: maximum current of 200 A and maximum power of 10.24 kW during both charging and discharging.
- Fire protection: built-in aerosol fire extinguisher and an intelligent fire detection and suppression system that extinguishes fires in 5 seconds.
- Wall or floor mounting: IP65 enclosure allows installation indoors and outdoors; optional wheels make it easier for one person to move the device.
- Optional automatic heating: enables charging at temperatures from -20 to 55°C; the standard charging temperature range is from 0 to 55°C.
- Durability and warranty: at least 8000 cycles at a charge and discharge rate of 0.2C, a temperature of 25°C, a depth of discharge of 95% and an end-of-life threshold of 70%, plus a 10-year warranty in accordance with Dyness terms and conditions.
Who is this a good choice for?
PowerBrick Plus is designed for households that need energy storage with capacity that can be expanded by adding more units. It is suitable for homeowners planning indoor or outdoor installation, while optional heating allows charging at temperatures below 0°C.
| Parameter | Value |
|---|---|
| Battery data | |
| Model | PowerBrick Plus |
| Battery type | LiFePO4 |
| Nominal energy (kWh) | 16.07 kWh |
| Usable energy (kWh) | 15.27 kWh |
| Nominal capacity (Ah) | 314 Ah |
| Nominal voltage (V) | 51.2 V |
| Operating voltage range (V) | 44,8~57,6 |
| Depth of discharge DOD (%) | 95 |
| Cycle life (cycles) | ≥8000 cycles |
| Maximum number of units connected in parallel | 50 |
| Charging and discharging | |
| Recommended charge and discharge rate (C) | 0,45 |
| Recommended charging and discharging current (A) | 140 |
| Maximum charge rate (C) | 0,64 |
| Maximum charging current (A) | 200 |
| Maximum discharge rate (C) | 0,64 |
| Maximum discharge current (A) | 200 |
| Peak discharge current at 25°C (A) | 300 |
| Peak discharge time (min) | 2 |
| Recommended charging and discharging power (kW) | 7.168 kW |
| Maximum charging power (kW) | 10.24 kW |
| Maximum discharge power (kW) | 10.24 kW |
| Operating conditions | |
| Charging temperature range (°C) | 0~55°C / -20~55°C (optional) |
| Discharge temperature range (°C) | -20~55°C |
| Protection rating | IP65 |
| Fire protection | Built-in aerosol fire extinguisher |
| Dimensions and weight | |
| Net weight (kg) | 119 kg |
| Dimensions — width/depth/height (mm) | 435/235/850 |
| Mounting method | Floor-mounted, wall-mounted |
| Optional accessories | |
| Number of adjustment wheels (pcs.) | 4 |
| Adjustment wheel weight (kg) | 1 |
| Adjustment wheel dimensions (mm) | 80/80/80 |
| Top cover weight (kg) | 2 |
| Top cover dimensions (mm) | 422/232/60 |
| Communication and compatibility | |
| Communication interface | CAN/RS485 |
| User interface | WIFI+APP |
| Compatible inverters | Solis/Goodwe/Growatt/SMA/Victron/Deye/APsystem etc. |
| Certificates | |
| Certificates and safety standards | UN38.3/IEC62619 |
| Warranty | |
| Product warranty (years) | 10 |
Cycle life test conditions: charging and discharging at 0.2C, temperature 25°C, DOD 95%, EOL 70%.
