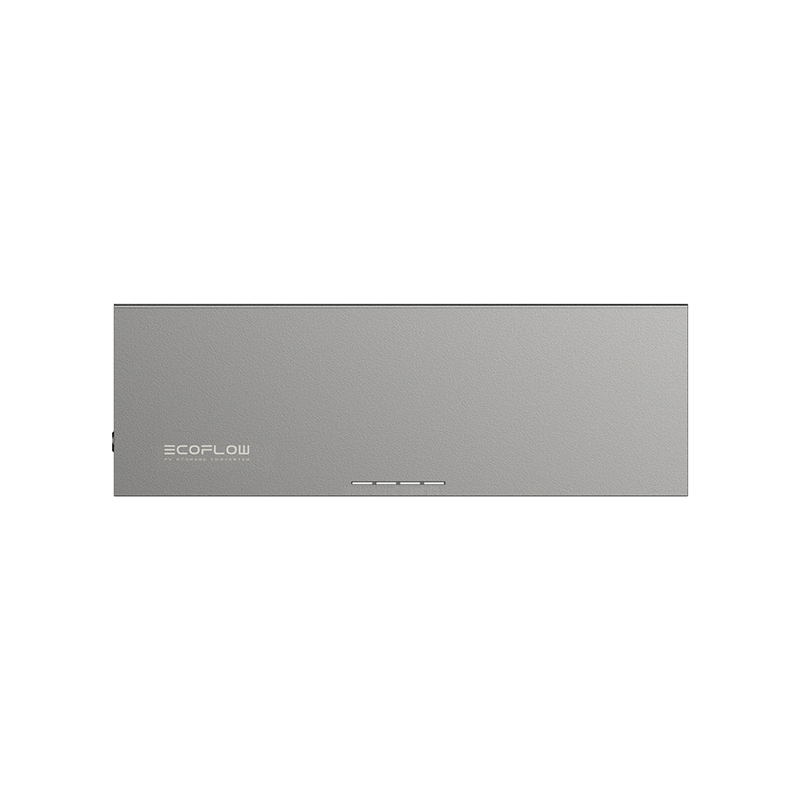

Energy storage converter – EcoFlow – PowerOcean EF PD-5-S1
SKU: 5012701002
EAN: 4895251611541
Price
Przetwornica magazynowania EcoFlow PowerOcean PV (EF PD-5-S1), w zestawie z licznikiem energii
Datasheet
Datasheet-EcoFlow-PowerOcean-DC-EN.pdf
Product details
PowerOcean DC Fit
PowerOcean DC Fit allows energy storage to be added to an existing home photovoltaic system. The system uses LFP batteries and does not require replacing the existing inverter or installing an additional storage inverter. Integration without replacing AC wiring reduces installation time.
Key benefits of PowerOcean DC Fit
- Capacity 5.1–15.3 kWh depending on the configuration with one, two or three battery modules.
- Maximum output power 3.3–5 kW and a maximum input power of 2.5–5 kW, depending on the configuration.
- Support for single-phase and three-phase inverters without having to replace the existing inverter in the photovoltaic system.
- LFP batteries with an integrated active aerosol fire protection module.
- Protection rating IP65 of the inverter and battery, as well as cooling by natural convection.
- Floor or wall mounting and access to the EcoFlow app and the EcoFlow web portal for users.
Who is this a good choice for?
PowerOcean DC Fit is designed for homeowners with an existing photovoltaic system who want to store solar energy without replacing the inverter or AC wiring. Configurations with capacities of 5.1–15.3 kWh allow users to choose the storage capacity, while support for single-phase and three-phase inverters enables integration with both types of systems.
Datasheet
Datasheet-EcoFlow-PowerOcean-DC-EN.pdf
| Parameter | EcoFlow PowerOcean DC Fit 5.1 kWh | EcoFlow PowerOcean DC Fit 10.2 kWh | EcoFlow PowerOcean DC Fit 15.3 kWh |
|---|---|---|---|
| System parameters | |||
| Module configuration | EF PD-5-S1 × 1; EF BD-5,1-S1 × 1; EF BD-B-S1 × 1 | EF PD-5-S1 × 1; EF BD-5,1-S1 × 2; EF BD-B-S1 × 1 | EF PD-5-S1 × 1; EF BD-5,1-S1 × 3; EF BD-B-S1 × 1 |
| Installation | Floor-standing / wall-mounted | ||
| Battery capacity (kWh) | 5,1 | 10,2 | 15,3 |
| Maximum output power (kW) | 3,3 | 5 | |
| Maximum input power (kW) | 2,5 | 5 | |
| System dimensions and weight | |||
| Dimensions without adjustable feet (W × D × H) (mm) | 680 × 201 × 682 | 680 × 201 × 1078 | 680 × 201 × 1475 |
| Weight without adjustable feet (kg) | 77,3 | 132,8 | 188,3 |
| Inverter — DC input data (PV) | |||
| Inverter model | EF PD-5-S1 | ||
| Maximum charging input power (kW) | 5 (2.5 per string)¹ | ||
| Maximum input charging current per string (A) | 12² | ||
| Maximum input voltage — absolute maximum (V) | 1000 | ||
| Operating voltage range (V) | 720–960 | ||
| Maximum input current per string (A) | 20 | ||
| PV short-circuit current — absolute maximum per string (A) | 21 | ||
| Converter — DC output data on the inverter side | |||
| Supported photovoltaic inverter type | Single-phase/three-phase | ||
| Bypass power per string (kW) | 15 | ||
| Maximum output current per string (A) | 20 | ||
| Maximum output voltage (V) | 1000 | ||
| Maximum discharge output power (kW) | 5 (2.5 per string)¹ | ||
| Maximum output discharge current per string (A) | 12² | ||
| Operating output voltage range (V) | 150–800 | ||
| Inverter — battery port | |||
| Battery discharge voltage range (V) | 800–900 | ||
| Maximum discharge current (A) | 6,5 | ||
| Maximum discharge power (kW) | 5,2¹ | ||
| Battery charging voltage range (V) | 800–900 | ||
| Maximum charging current (A) | 6 | ||
| Maximum charging power (kW) | 4,8¹ | ||
| Inverter — protection features | |||
| DC insulation resistance testing | ✓ | ||
| PV input reverse polarity protection | ✓ | ||
| DC switch | ✓ | ||
| Overcurrent protection | ✓ | ||
| Overvoltage/undervoltage protection | ✓ | ||
| Low/high temperature protection | ✓ | ||
| Inverter — general specifications and operating conditions | |||
| Protection class | I | ||
| Overvoltage category (OVC) | II (PV) | ||
| Operating temperature (°C) | –20 to 50 | ||
| Operating relative humidity (%) | 4–100 (condensation) | ||
| Operating altitude above sea level (m) | ≤3000 | ||
| Degree of protection | IP65 | ||
| Noise level (dB) | ≤35 | ||
| Communication method | Ethernet, Wi-Fi, Bluetooth, RS485 | ||
| Wi-Fi frequency (MHz) | 2412–2472 / 2422–2462 | ||
| Wi-Fi power (dBm) | 17,47 | ||
| Bluetooth frequency (MHz) | 2402–2480 | ||
| Bluetooth power (dBm) | 7,68 | ||
| Cooling method | Natural convection | ||
| Pollution degree | 2 | ||
| Inverter — certifications and standards | |||
| Certificates | CE Mark | ||
| Safety standard | EN62619:2022, EN62040-1:2019, EN62477-1:2012, ISO13849-1:2015, VDE-AR-E-2510-50:2017-05 | ||
| Electromagnetic compatibility | ETSI EN 300 328 V2.2.2; EN IEC 62311; ETSI EN 301 489-1 V2.2.3; ETSI EN 301 489-17 V3.2.4; EN IEC 61000-6-1; EN IEC 61000-6-3 | ||
| Battery — electrical parameters | |||
| Battery model | EF BD-5,1-S1 | ||
| Battery base model | EF BD-B-S1 | ||
| Rated voltage (V) | 800 | ||
| Operating voltage range (V) | 720–960 | ||
| Cell type | LFP | ||
| Battery — general information and operating conditions | |||
| Operating temperature (°C) | –20 to 50 | ||
| Operating altitude above sea level (m) | ≤3000 | ||
| Cooling method | Natural convection | ||
| Noise level (dB) | ≤35 | ||
| Relative humidity (%) | 0–100 (condensation) | ||
| Active aerosol fire protection module | Integrated | ||
| Degree of protection | IP65 | ||
| Protection class | I | ||
| Battery — certifications and standards | |||
| Certificates | CE Mark | ||
| Safety standards | EN62619:2022; EN62040-1:2019; EN62477-1:2012; ISO13849-1:2015; VDE-AR-E-2510-50:2017-05 | ||
| Electromagnetic compatibility | EN 61000-6-1, EN 61000-6-3 | ||
¹ The inverter's maximum charging and discharging power was measured with 3 batteries installed. ² At a charging or discharging voltage below 208 V, the device does not reach a power of 2.5 kW.
