ENVERTECH Enverbridge EVB300
| Manufacturer | |
|---|---|
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| Weight | 0,7 kg |
| CN | 85371010 |
Gross
Product details
| Manufacturer | |
|---|---|
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| Weight | 0,7 kg |
| CN | 85371010 |

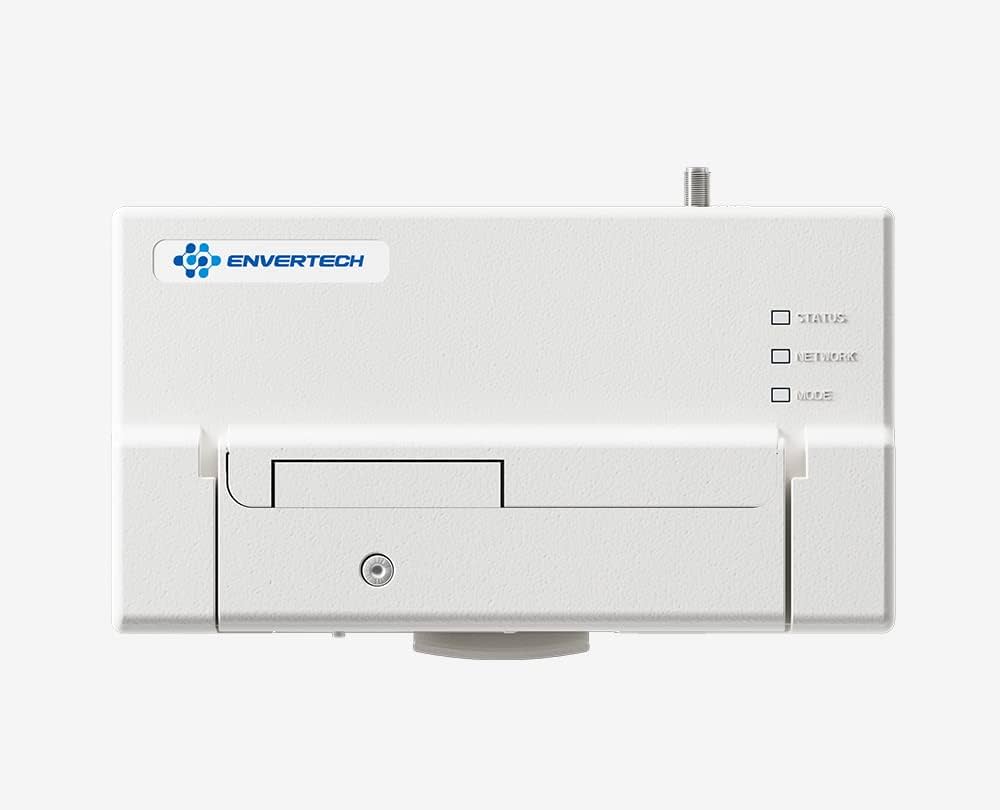

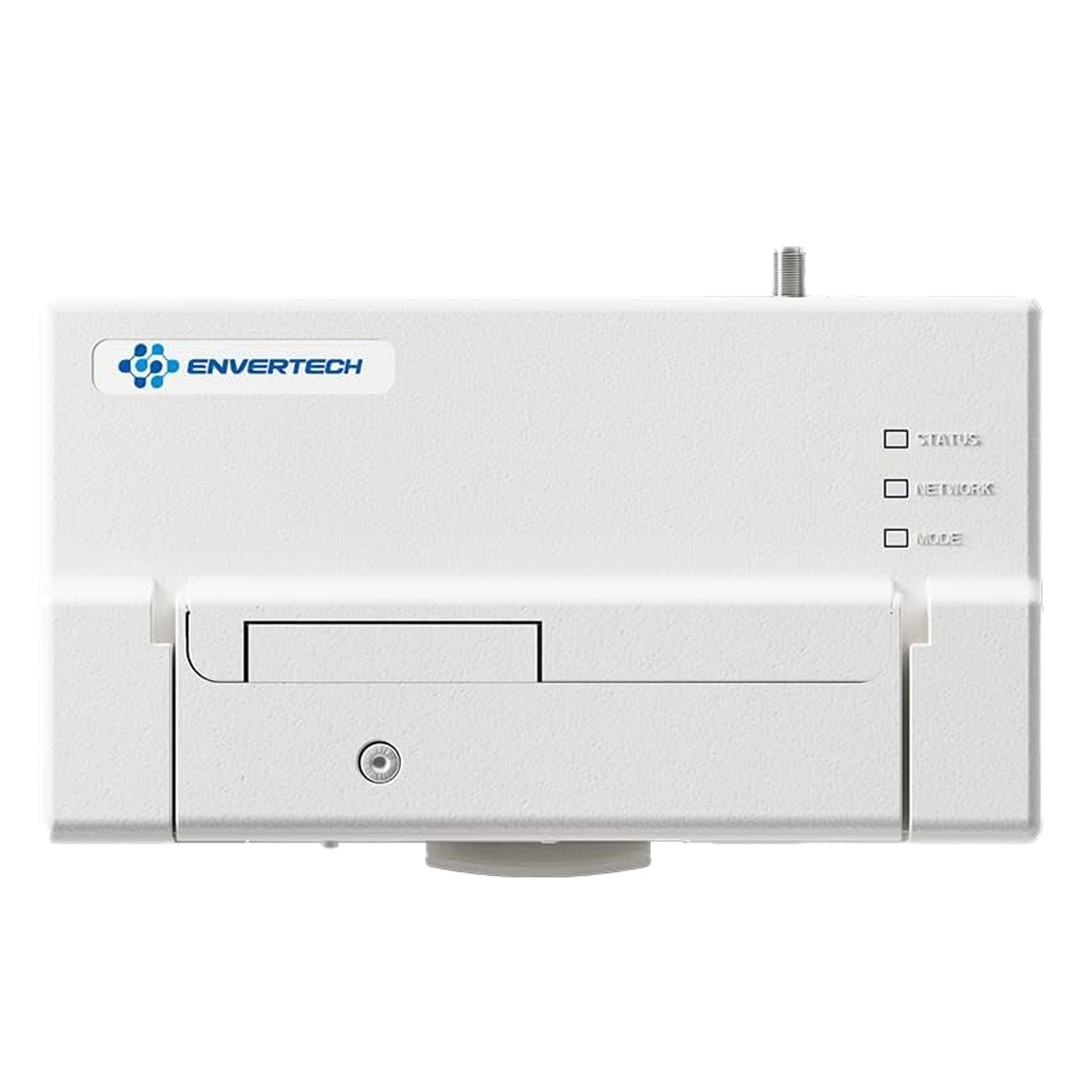

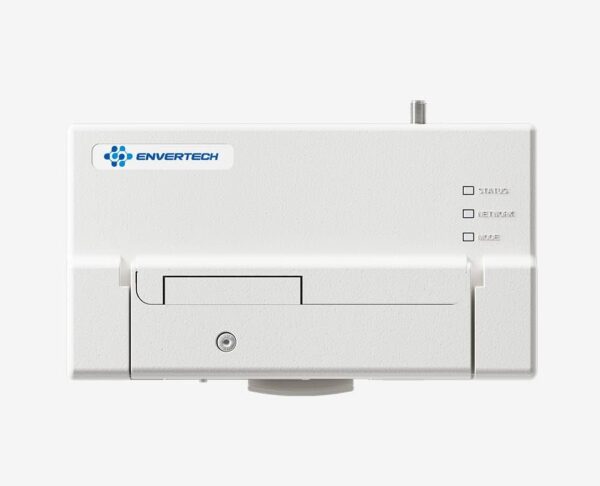

Envertech EVB300 Communication Gateway
The Envertech EVB300 communication gateway is a key device designed for advanced management of photovoltaic systems based on Envertech microinverters. It enables intelligent, module-level monitoring, giving users full digital control over system performance. The unit is highly flexible, allowing adaptation to systems of any size and optimizing the use of available space.
Key features of the Envertech EVB300 Communication Gateway:
- System flexibility: Can be adapted to photovoltaic systems of any size, optimizing the use of available space.
- Intelligent module-level monitoring: Provides detailed online insight into the operation and performance of each individual PV module.
- Leading industry warranty: The device comes with a 3-year warranty, a top offering for monitoring equipment.
- Advanced communication and control: Enables automatic control of output power and communication/control of RS485 devices via a virtual communication port.
- Multiple internet connectivity options: Can connect to the network via an Ethernet port or wirelessly over Wi‑Fi (802.11g/n).
- Support for many devices: Can connect to and monitor up to 60 MPPT units (microinverters) per phase.
Who is this a good choice for?
The Envertech EVB300 gateway is an excellent choice for owners of Envertech microinverters who want to fully control and optimize their photovoltaic installation through advanced digital management. It works well in small residential systems as well as larger commercial installations where detailed module-level performance monitoring, remote control, and rapid diagnostics are essential. It’s an indispensable tool for anyone who values smart solutions and maximizing solar energy yield.
| Parameter | EVB300 |
|---|---|
| Features | |
| RS485 Port | Automatic output power control, virtual communication port, used for communication and control between RS485 devices and the EVB300. |
| Internet connection options | Ethernet/WIFI (802.11g/n) |
| Storage (Optional) | Standard local USB storage |
| Capacity | |
| Number of connected devices | Up to 60 MPPT units per phase |
| AC Power / Consumption | |
| AC Power (VAC, Hz) | 108~264VAC, 47.5~62.5Hz |
| Power consumption (W) | <2W |
| Mechanical data | |
| Dimensions (W*H*D) (mm) | 182mm*100mm*43mm |
| Weight (g) | 345 g |
| Cooling | Natural convection – fanless |
| Ambient temperature range (°C) | -40 °C~+65 °C |
| Protection rating (IP) | IP40 |
| Compliance and Warranty | |
| Compliance | CE |
| Warranty (Years) | 3 years |
Communicates with Envertech microinverters and allows users to manage systems intelligently and digitally.
