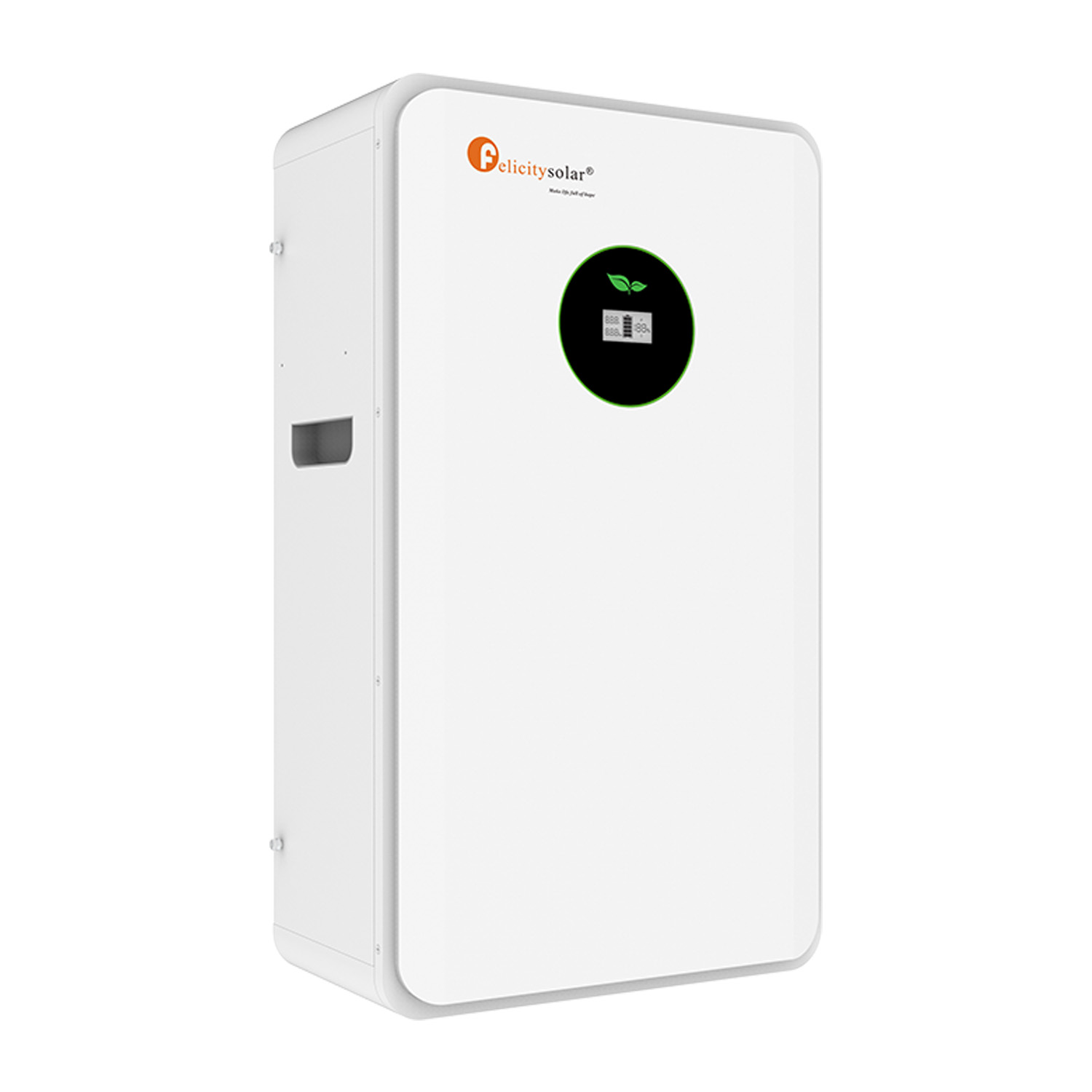

FELICITY battery FLA48200-P 10 kWh
| Manufacturer | |
|---|---|
| Capacity | |
| Number of charging cycles | |
| Battery cell type | LiFePO4 |
| Module voltage | |
| Charging current | |
| Discharge current | |
| Depth of Discharge | |
| CAN | Yes |
| RS485 | Yes |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| Weight | 108 kg |
| CN | 85076000 |
Gross
Product details
| Manufacturer | |
|---|---|
| Capacity | |
| Number of charging cycles | |
| Battery cell type | LiFePO4 |
| Module voltage | |
| Charging current | |
| Discharge current | |
| Depth of Discharge | |
| CAN | Yes |
| RS485 | Yes |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| Weight | 108 kg |
| CN | 85076000 |
Felicity solar FLA Series
The low-voltage LiFePO4 battery pack from Felicitysolar’s FLA series is an advanced energy storage solution. Using lithium iron phosphate technology, it offers high performance, safety, and long life. Its expandability and remote monitoring capabilities make it a flexible choice for a variety of applications.
Key features of the Felicitysolar FLA Series:
- LiFePO4 technology providing enhanced safety and longer cell lifespan.
- 10.5 kWh capacity, expandable up to 157.4 kWh by connecting up to 15 modules in parallel.
- Built-in fire protection system and intelligent BMS for maximum safety.
- Integrated WiFi for remote monitoring of battery pack data.
- Compatibility with leading inverter brands and RS485/CAN communication.
- Warranty period of up to 7 years.
Who is this a good choice for?
The FLA series is an ideal option for users looking for a reliable, scalable energy storage system. It performs well in both residential and commercial installations where a high depth of discharge (DOD ≥95%) and a long cycle life (≥6,000 cycles) are required. Easy expandability and remote supervision make it a practical solution for those who value flexibility and safety.
| Parameter | FLA48200-P |
|---|---|
| Model | FLA48200-P |
| Battery type | LiFePO4 |
| Nominal energy | 10.5 kWh |
| Nominal voltage | 51.2 V |
| Operating voltage | 44.8–57.6 V |
| Max continuous charge/discharge current [I] | 150 A |
| Peak charge/discharge current (15 s) | 200 A |
| Max charge/discharge power (15 s) | 10,000 W |
| Scalability | Up to 15 units in parallel (157.4 kWh) |
| Depth of discharge (DoD) | ≥95% |
| Communication | RS485/CAN |
| Protection rating | IP21 |
| Cycle life | ≥6,000 cycles |
| Charging temperature range | 0°C ~ +55°C |
| Discharging temperature range | -20°C ~ +55°C |
| Display type | LCD + LED |
| Mounting | Wall / floor mounting |
| Protections | Built-in intelligent BMS, circuit breaker, fuse |
| Warranty period | 7 years |
| Certifications | UN38.3, CE-EMC, IEC 62619 |
| Product weight | 92 kg |
| Package weight | 115.6 kg |
| Product dimensions | 783 x 450 x 274 mm |
| Package dimensions | 900 x 570 x 450 mm |
* Product specifications may change due to continuous improvement. Contact us for the latest information.
