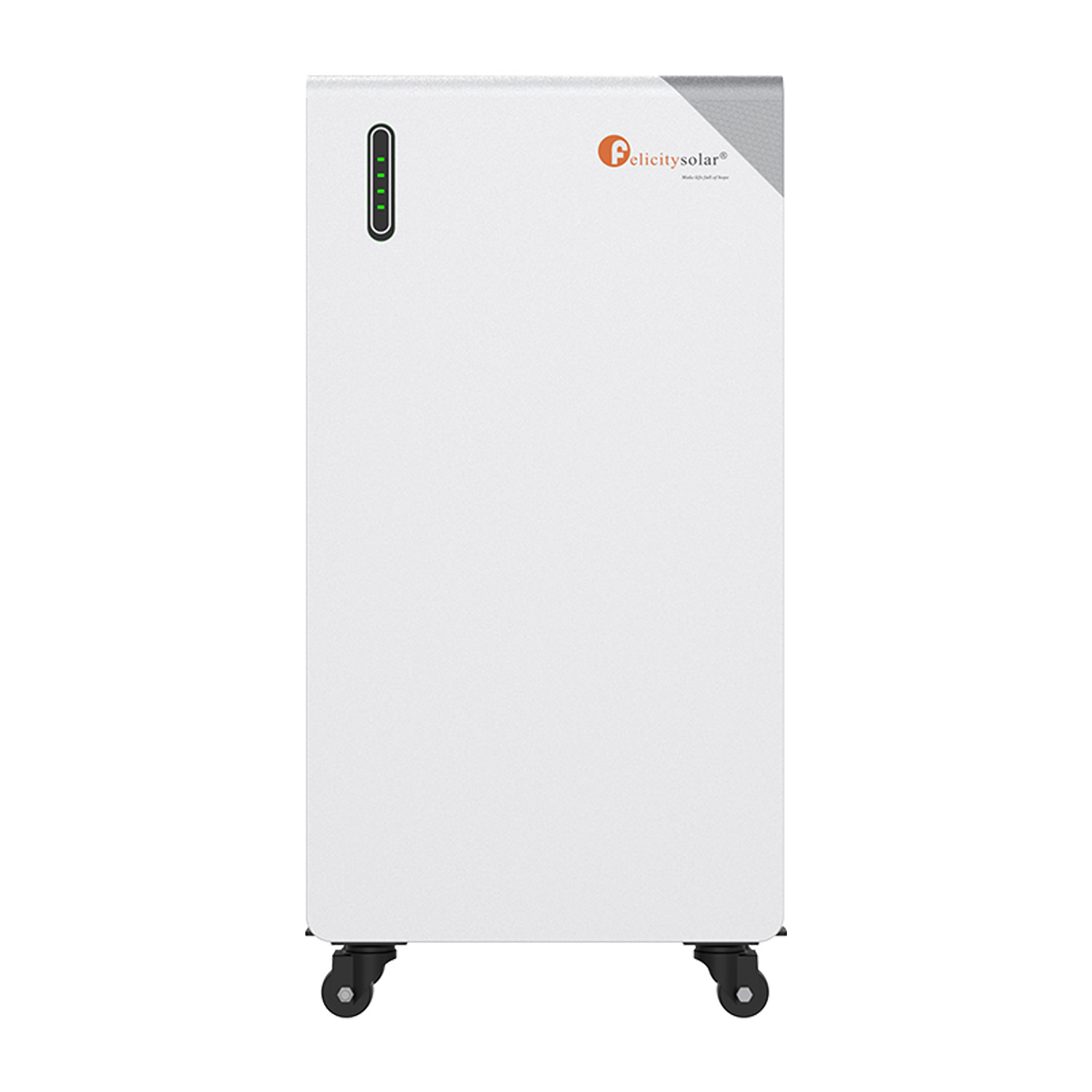

FELICITY battery FLB48314TG1 (FLB) 16 kWh
| Manufacturer | |
|---|---|
| Capacity | |
| Number of charging cycles | |
| Battery cell type | |
| Module voltage | |
| Charging current | |
| Discharge current | |
| Depth of Discharge | |
| CAN | |
| RS485 | |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| Weight | 140 kg |
| CN | 85076000 |
Gross
Product details
| Manufacturer | |
|---|---|
| Capacity | |
| Number of charging cycles | |
| Battery cell type | |
| Module voltage | |
| Charging current | |
| Discharge current | |
| Depth of Discharge | |
| CAN | |
| RS485 | |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| Weight | 140 kg |
| CN | 85076000 |
FLB Low-Voltage Series
The LiFePO4 battery pack from the FLB Low-Voltage Series is an advanced energy storage solution engineered for safety, long service life, and high performance. Leveraging LiFePO4 technology, it provides reliable power and simple management with built-in remote monitoring.
Key features of the FLB Low-Voltage Series:
- Safety and durability: LiFePO4 technology ensures higher safety and a lifespan of ≥8,000 cycles, backed by a 10-year warranty.
- Multiple protection: Equipped with an intelligent BMS, a disconnect switch, a fuse, and an innovative aerosol fire suppression system.
- High scalability: System expandable up to 32 units in parallel, allowing a total capacity of 512 kWh.
- Remote monitoring and communication: Built-in WiFi/Bluetooth enables remote access to data, while RS485/CAN interfaces provide broad compatibility.
- Weather resistance: IP65 protection rating ensures durability in harsh environments, with an operating temperature range from -20°C to 55°C (discharge).
- Optimal performance: Fast charging/discharging with a maximum continuous current of 160 A and a peak of 200 A (15 s), supported by CCS welding to reduce internal resistance.
Who is this a good choice for?
The battery pack from the FLB Low-Voltage Series is an excellent choice for homeowners and small to medium-sized businesses seeking a reliable, scalable energy storage solution. Its high safety standards, resistance to harsh conditions, and flexible expandability make it ideal for photovoltaic systems, emergency backup power, or locations that require a stable, long-lasting power source.
| Parameter | Value |
|---|---|
| Battery type | LiFePO4 |
| Nominal energy (kWh) | 16 |
| Nominal capacity (Ah) | 314 |
| Nominal voltage (V) | 51.2 |
| Operating voltage (V) | 44.8 ~ 57.6 |
| Recommended charge/discharge current (A) | 80 |
| Max. continuous charge/discharge current (A) | 160 |
| Peak charge/discharge current (A, 15s) | 200 |
| Scalability | Up to 32 units in parallel (512 kWh) |
| Depth of discharge (DOD) (%) | |
| Display type | LED |
| Protection rating | IP65 |
| Operating temperature range (charging, °C) | 0 ~ 55 |
| Operating temperature range (discharging, °C) | -20 ~ 55 |
| Storage temperature range (°C) | 0 ~ 35 |
| Humidity (%) | 5 ~ 95 |
| Maximum altitude (m above sea level) | <= 2000 |
| Communication | RS485/CAN |
| Cycle life | >= 8000 cycles |
| Mounting | Wall or floor mounting |
| Warranty period (years) | 10 |
| Certifications | UN38.3 |
| Product weight (kg) | 121 |
| Package weight (kg) | 143 |
| Product dimensions (mm) | 895 x 450 x 235 |
| Package dimensions (mm) | 958 x 548 x 424 |
The maximum continuous charge/discharge current depends on temperature and state of charge (SOC).
