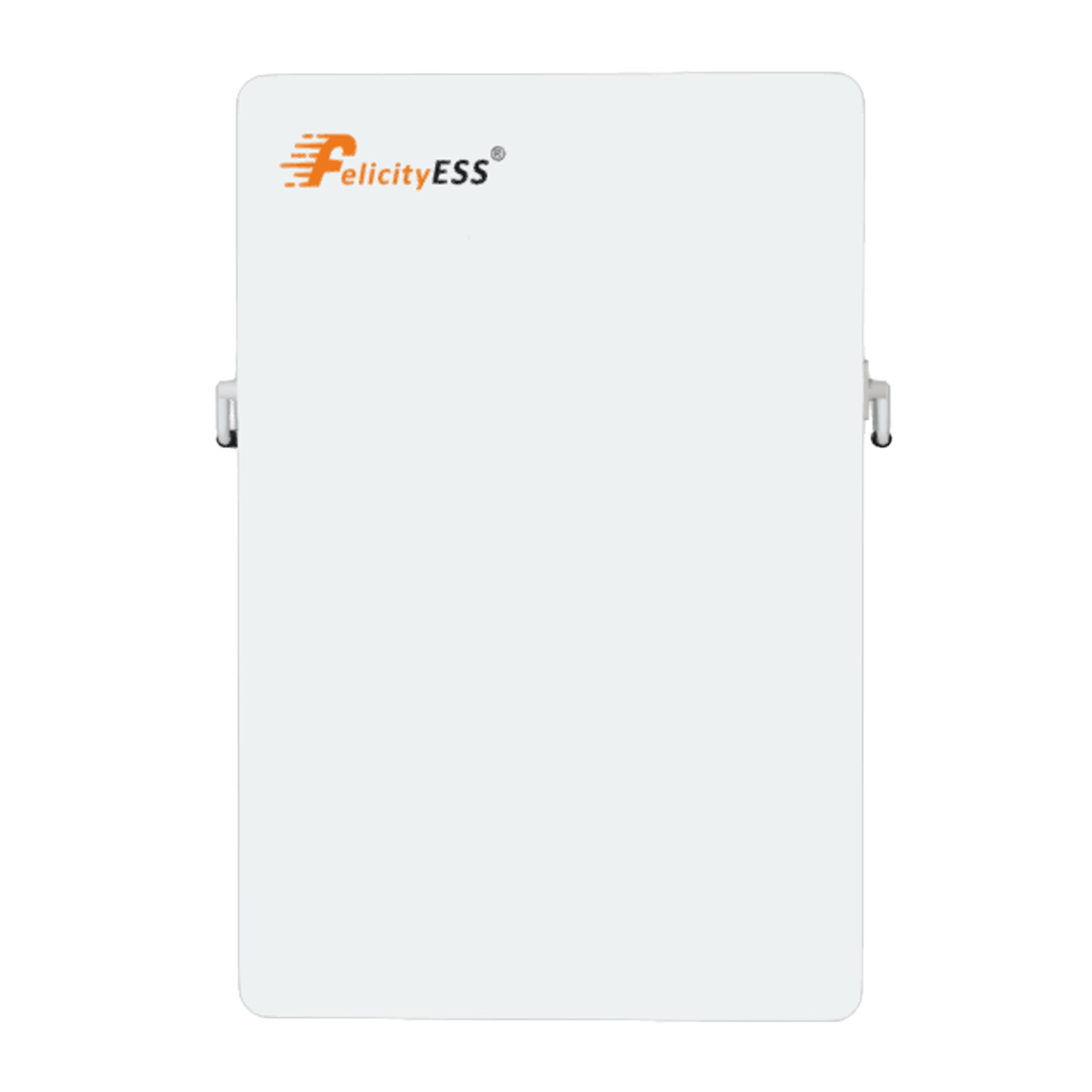

FELICITY battery LPBA48100-OL 5.12 kWh
| Manufacturer | |
|---|---|
| Capacity | |
| Number of charging cycles | |
| Battery cell type | LiFePO4 |
| Module voltage | |
| Charging current | |
| Discharge current | |
| Depth of Discharge | |
| CAN | Yes |
| RS485 | Yes |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| Weight | 64,5 kg |
| CN | 85076000 |
Gross
Product details
| Manufacturer | |
|---|---|
| Capacity | |
| Number of charging cycles | |
| Battery cell type | LiFePO4 |
| Module voltage | |
| Charging current | |
| Discharge current | |
| Depth of Discharge | |
| CAN | Yes |
| RS485 | Yes |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| Weight | 64,5 kg |
| CN | 85076000 |
LUX-E Battery Pack
The LUX-E Battery Pack is an advanced energy storage solution based on the safe and efficient LiFePO4 technology. Designed for long-lasting operation and high reliability, it offers installation flexibility and expandability, making it an ideal fit for a wide range of user needs.
Key features of the LUX-E Battery Pack:
- LiFePO4 technology: Provides exceptional safety, stability and long service life, with over 6,000 cycles at 90% DOD and a 10-year warranty.
- Integrated intelligent BMS and switch: Offers comprehensive protection against overcharge, excessive discharge and other hazards.
- High scalability: Allows up to 12 units to be connected in parallel, enabling system expansion up to 61.44 kWh.
- IP65 protection rating: Provides reliable resistance to dust and water, ensuring dependable operation in harsh conditions.
- Universal compatibility: Seamlessly integrates with leading inverter brands on the market.
- Aerosol fire suppression system: Enhances safety by providing an additional layer of fire protection.
Who is this a good choice for?
The LUX-E Battery Pack is an excellent choice for homeowners, businesses and photovoltaic system installers seeking a reliable, safe and scalable energy storage solution. With its long life, high protection rating and advanced safety features, it performs well in both residential and commercial systems, delivering stable power and optimizing the use of solar energy.
| Parameter | Value |
|---|---|
| Model | LUX-E-48100LG04 |
| Battery type | LiFePO4 |
| Nominal energy (kWh) | 5.12 |
| Nominal capacity (Ah) | 100 |
| Nominal voltage (V) | 51.2 |
| Operating voltage (V) | 44.8-57.6 |
| Recommended charge/discharge current (A) | 50 |
| Max. continuous charge/discharge current (A) | 100 |
| Peak charge/discharge current (15s) (A) | 150 |
| Scalability | Up to 12 units in parallel (61.44 kWh) |
| Depth of discharge (DOD) (%) | ≥ 95 |
| Display type | LED |
| Protection rating | IP65 |
| Operating temperature range (charging) (°C) | 0-55 |
| Operating temperature range (discharging) (°C) | -20-55 |
| Storage temperature range (°C) | 0 to +35 |
| Humidity (%) | 5-95 |
| Altitude (m) | ≤ 2000 |
| Communication | RS485 / CAN |
| Cycle life | ≥ 6000 cycles (25°C ± 2°C, 0.5C charge, 0.5C discharge, 90% DOD, 70% EOL) |
| Installation | Wall-mounted / Floor-standing |
| Protections | Built-in intelligent BMS, circuit breaker |
| Warranty period (years) | 10 |
| Product weight (kg) | approx. 48.5 |
| Package weight (kg) | approx. 64.5 |
| Product dimensions (mm) | 665 × 440 × 175 |
| Package dimensions (mm) | 760 × 540 × 345 |
The maximum continuous charge/discharge current depends on temperature and state of charge (SOC). Warranty conditions are specified in the FelicityESS warranty document.
