FELICITY battery LUX-Y-48300LG01 15 kWh
| Manufacturer | |
|---|---|
| Capacity | |
| Number of charging cycles | |
| Battery cell type | |
| Module voltage | |
| Charging current | |
| Discharge current | |
| Depth of Discharge | |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| Weight | 159 kg |
Gross
Product details
| Manufacturer | |
|---|---|
| Capacity | |
| Number of charging cycles | |
| Battery cell type | |
| Module voltage | |
| Charging current | |
| Discharge current | |
| Depth of Discharge | |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| Weight | 159 kg |

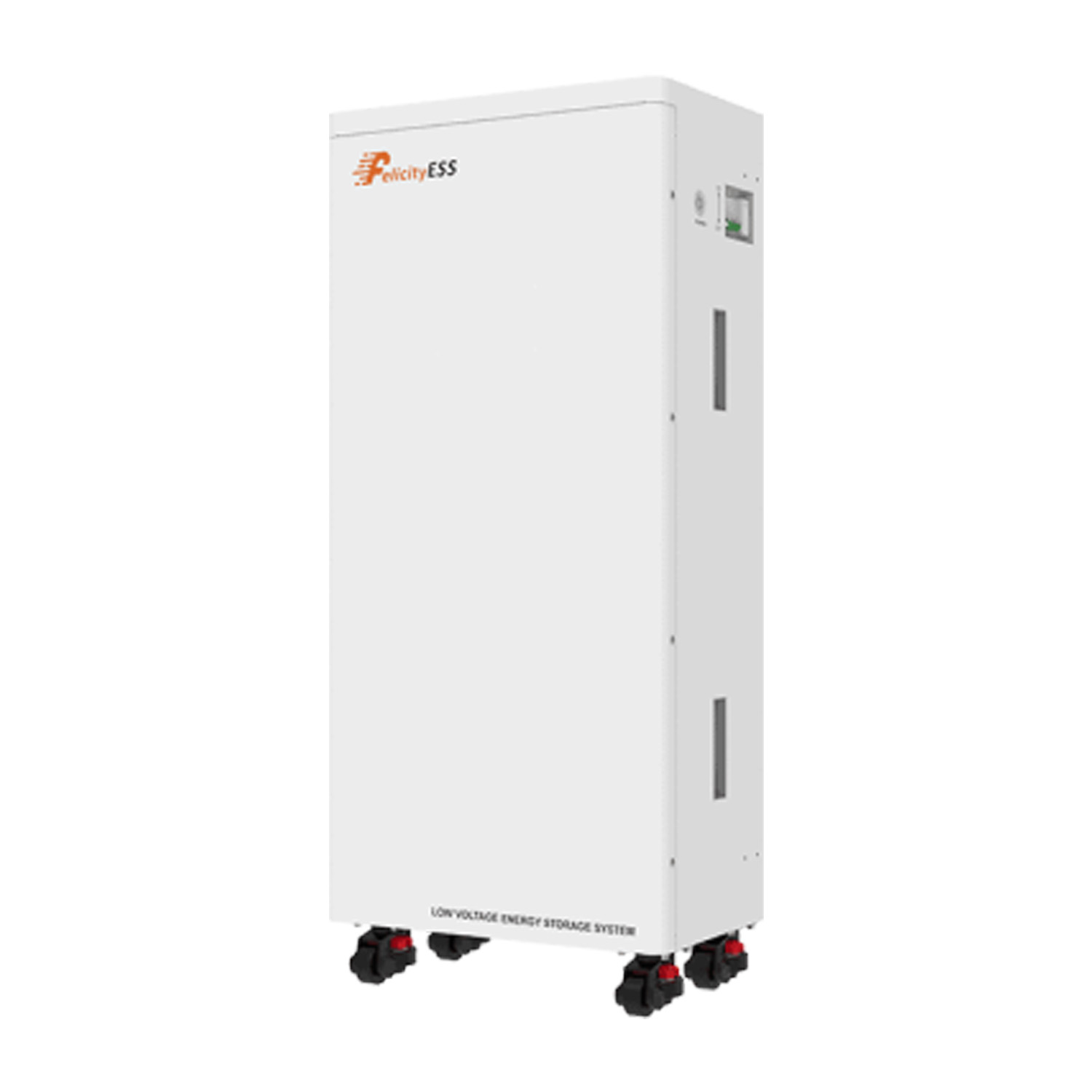

FelicityESS LUX-Y Battery Pack
The FelicityESS LUX-Y battery pack is a modern, intelligent energy storage solution designed for residential photovoltaic systems. Using safe and durable LiFePO4 technology, it delivers reliability, high performance and long service life. It’s an eco-friendly, sustainable way to maximize self-consumption of energy and increase energy independence.
Key features of the FelicityESS LUX-Y Battery Pack:
- High performance and long life: LiFePO4 technology guarantees over 6,000 cycles at a depth of discharge (DOD) of ≥ 95%, ensuring years of trouble-free operation.
- Advanced, multi-level safety: The unit includes an intelligent BMS, a disconnect switch, a fuse and a unique aerosol fire suppression system, making it one of the safest solutions on the market.
- Flexibility and scalability: The system can be mounted on a wall or floor, and its modular design allows up to 15 units to be connected, reaching a total capacity of up to 225 kWh.
- Wide compatibility and remote monitoring: The battery is compatible with inverters from leading brands, and a built-in WiFi module enables remote monitoring of key system parameters.
- Long warranty period: The manufacturer provides a 10-year warranty, reflecting the product’s high quality and reliability.
Who is this a good choice for?
The LUX-Y series battery is ideal for owners of single-family homes with photovoltaic installations who want to effectively manage excess energy. Thanks to its high scalability, it is suitable for both standard households and properties with increased energy needs or plans for future expansion. Wide inverter compatibility and flexible mounting options simplify integration with new and existing systems, while advanced safety features and a 10-year warranty give confidence in a long-term, low-maintenance investment.
| Parameter | LUX-Y-48280LG01 | LUX-Y-48300LG01 |
|---|---|---|
| Battery type | LiFePO4 | LiFePO4 |
| Nominal energy (kWh) | 14.3 | 15 |
| Nominal capacity (Ah) | 280 | 300 |
| Nominal voltage (V) | 51.2 | 51.2 |
| Operating voltage (V) | 44.8 ~ 57.6 | 44.8 ~ 57.6 |
| Recommended charge/discharge current (A) | 120 | 120 |
| Max. continuous charge/discharge current [1] (A) | 150 | 150 |
| Peak charge/discharge current (15 s) (A) | 200 | 200 |
| Scalability | max. 15 (215 kWh) | max. 15 (225 kWh) |
| Depth of discharge (DOD) (%) | ≥ 95% | ≥ 95% |
| Display type | LCD | LCD |
| Protection rating | IP21 | IP21 |
| Operating temperature range (°C) | Charging: 0 ~ +55
Discharging: -20 ~ +55 |
Charging: 0 ~ +55
Discharging: -20 ~ +55 |
| Storage temperature range (°C) | 0 ~ +35 | 0 ~ +35 |
| Humidity (%) | 5 ~ 95 | 5 ~ 95 |
| Altitude (m) | ≤ 2000 | ≤ 2000 |
| Communication | RS485/CAN | RS485/CAN |
| Lifetime [2] (cycles) | ≥ 6000 | ≥ 6000 |
| Mounting | Wall-mounted / floor-mounted | Wall-mounted / floor-mounted |
| Protection | Built-in intelligent BMS, switch, fuse | Built-in intelligent BMS, switch, fuse |
| Warranty period [3] (years) | 10 | 10 |
| Approx. product weight (kg) | 135 | 135 |
| Approx. packaging weight (kg) | 160 | 160 |
| Product dimensions (mm) | 480x1100x300 | 480x1100x300 |
| Packaging dimensions (mm) | 1150x635x498 | 1150x635x498 |
[1] The maximum continuous charging/discharging current depends on temperature and state of charge (SOC).
[2] Test conditions: 0.2C charge/discharge @25°C, 80% DOD, 60% EOL.
[3] Applicable terms: see the FelicityESS warranty statement.
* All specifications are subject to change without notice.
