Energy meter – FELICITY – ESS – 3 phase

Felicity ESS 3-phase energy meter

Acrel ACR10R-D16TE4 three-phase energy meter dedicated for Felicity inverters.

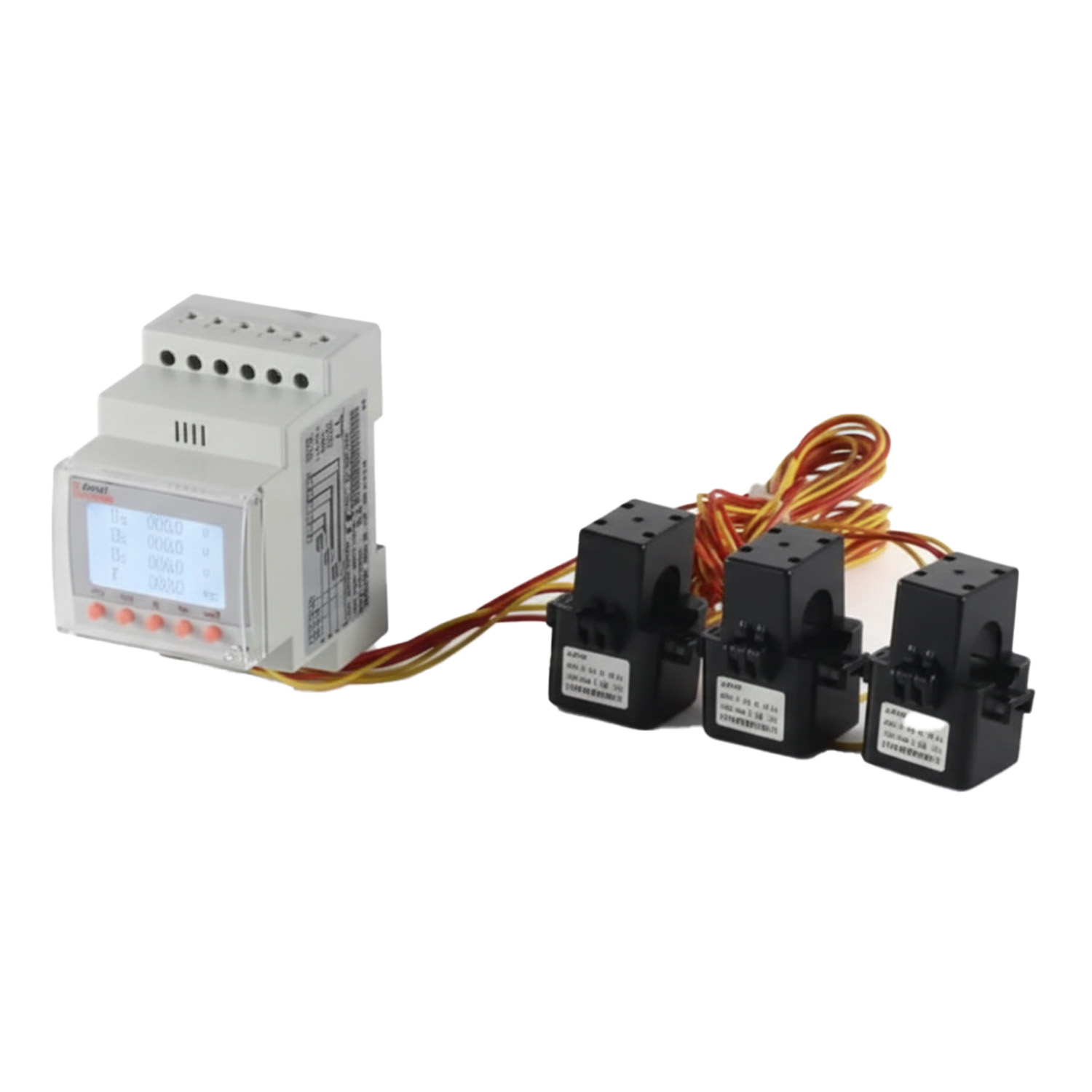

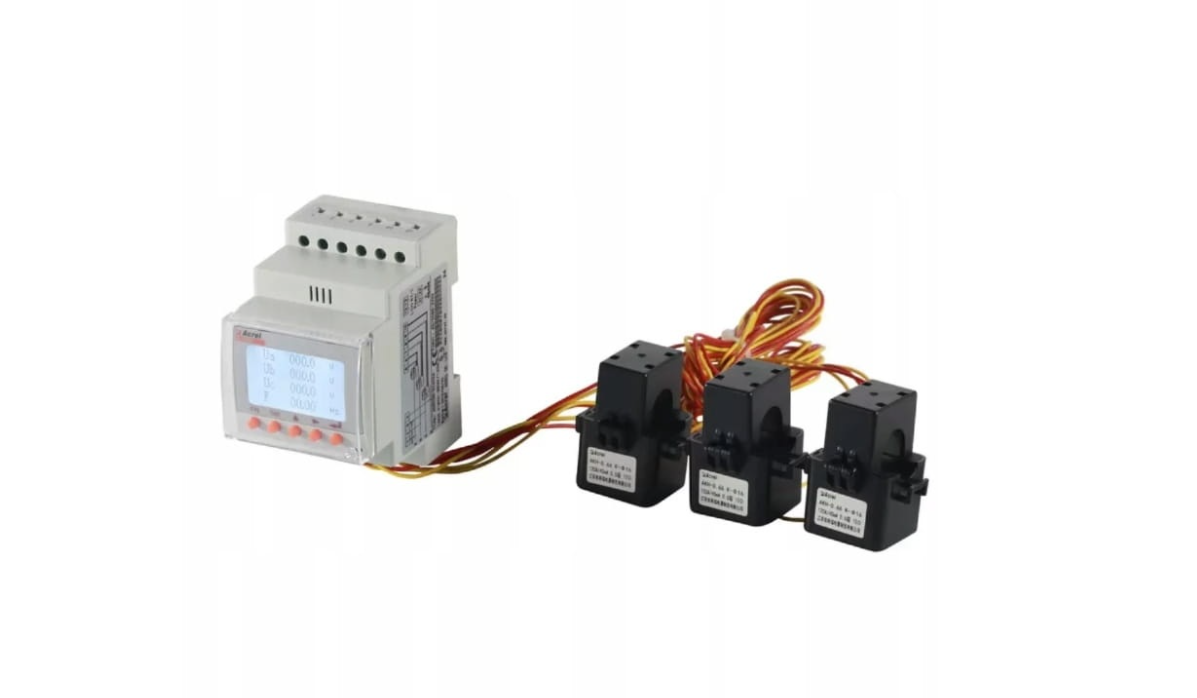

Acrel three-phase energy meter with three 16 mm CT clamps

• AC voltage 57.7V/100V, 220V/380V (400V)

• power consumption <0.2 VA

• frequency 45 Hz – 65 Hz


Measurement parameters:

• current

• voltage

• frequency

• power factor

• active power

• reactive power

• apparent power


Optional functions:

• total harmonic distortion (THD)

• multi-tariff energy measurement


Relay output:

• 2 NO contacts

• capacity: AC 250V/3A, DC 30V/3A

• operating temperature -10°C to +55°C

• storage temperature -20°C to +70°C

• relative humidity <93% (non-condensing)

• Communication – RS485, Modbus-RTU
