Control module – FoxESS – CQ16-BOX
SKU: CQ16-BOX
Product details
CQ16

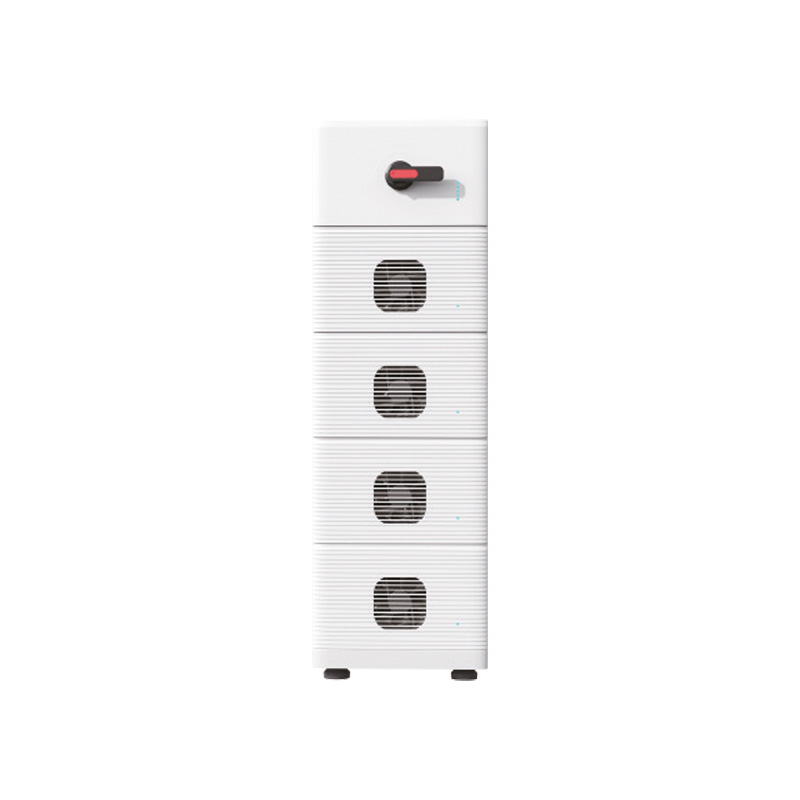

The CQ16 from FOX ESS is a high-voltage energy storage system designed for indoor floor mounting. Its modular design allows the system’s nominal energy capacity to be scaled from 64.28 to 241.05 kWh. The system offers a 90% depth of discharge and intelligent air cooling.
Key advantages of CQ16
- Scalability: from 4 to 15 modules connected in series, each with a nominal capacity of 16.07 kWh.
- Depth of discharge 90%: enables the use of a significant portion of the stored energy.
- Round-trip efficiency above 92%.
- Lifespan of 6000 cycles at 0.5C and 90% depth of discharge, down to 70% battery state of health (SOH).
- Intelligent air cooling and CAN communication.
- Indoor floor mounting and an IP20 protection rating.
Who is this a good choice for?
CQ16 is an option for users who need an energy storage system with a capacity of 64.28–241.05 kWh, with the number of modules adjustable to the required capacity. It is suitable for users with space for indoor floor-mounted installation. Each battery system requires one CQ BOX device.
Datasheet
Datasheet-CQ16-EN.pdf
| Parameter | Value |
|---|---|
| Electrical data | |
| Model | CQ16 |
| Nominal voltage (V DC) | 51,2 |
| Operating voltage range (V DC) | 46,4 ~ 58,4 |
| Nominal capacity (Ah) | 314 |
| Nominal energy (kWh) | 16,07 |
| Rated power (kW) | 8,0 |
| Maximum charging and discharging current (A) | 240 |
| Recommended discharge current (A) | 157 |
| Peak discharge current (A) | 470 for 60 s |
| Efficiency and service life | |
| Round-trip efficiency (%) | >92 |
| Depth of discharge (%) | 90 |
| Service life (cycles) | 6000 at 0.5C, 90% DOD and 70% SOH |
| System configuration | |
| Scalability | Max. 15 modules in series |
| System rated energy range (kWh) | 64,28 ~ 241,05 |
| Communication and signaling | |
| Communication | CAN |
| Display | Battery: LED1, BOX: LED6 |
| Operating conditions | |
| Storage temperature (°C) | -10 ~ 50 |
| Operating temperature during charging (°C) | 0 ~ 55 |
| Operating temperature during discharge (°C) | -10 ~ 55 |
| Humidity (%) | 5 ~ 95 (non-condensing) |
| Installation location | Inside the building |
| Altitude above sea level (m) | 3000 |
| Cooling method | Intelligent air cooling |
| Degree of protection | IP20 |
| Dimensions and weight | |
| Dimensions (W × H × D) (mm) | 390 × 235 × 810 |
| Approximate weight (kg) | 128 |
| Certificates | |
| Safety | IEC 62619 |
| Electromagnetic compatibility | IEC 61000-6-1/2/3/4 |
Minimum 4 batteries per system.
