Inverter – FoxESS – H1-3.0-E – hybrid – HV – 1 phase
SKU: F290B11
EAN: 2010000028773
| Manufacturer | |
|---|---|
| Rated power | |
| Power supply | |
| Hybrid device | |
| Off-grid mode | |
| MPPT | |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| RS485 | |
| SPD Type II | |
| SPD Type III | |
| AFCI | |
| MPPT voltage range | |
| Maximum input current per MPPT [A] | |
| Maximum input power [W] | |
| European efficiency | |
| Weight | 26,7 kg |
Product details
| Manufacturer | |
|---|---|
| Rated power | |
| Power supply | |
| Hybrid device | |
| Off-grid mode | |
| MPPT | |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| RS485 | |
| SPD Type II | |
| SPD Type III | |
| AFCI | |
| MPPT voltage range | |
| Maximum input current per MPPT [A] | |
| Maximum input power [W] | |
| European efficiency | |
| Weight | 26,7 kg |

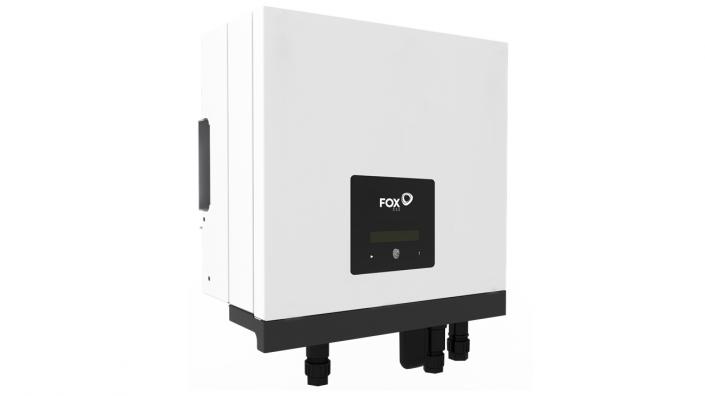

Fox ESS H1-3.0-E Inverter
Harness the power of the sun day and night with the breakthrough single-phase hybrid inverters and AC chargers of the FOX ESS H1/AC1-E series. Designed for flexibility and performance, these devices offer advanced energy management features and work with FoxESS battery modules, representing a new class of equipment in energy storage.
Key features of the Fox ESS H1-3.0-E inverter:
- Easy installation: Plug-and-play setup with built-in protections makes installation straightforward.
- High-voltage batteries: Provide maximum energy conversion performance.
- IP65 protection class: Devices are designed to operate in all conditions, including outdoors.
- Remote monitoring: Allows you to track system performance via a mobile app or online portal.
- Expandable: The system can be easily expanded by adding up to seven batteries in series, reaching up to 18.2 kWh of capacity.
- High efficiency: EU efficiency up to 97.00% and maximum PV-to-BAT efficiency up to 98.50%.
Who is this a good choice for?
The Fox ESS H1-3.0-E inverters are an ideal choice for residential and commercial users seeking reliable and efficient solar energy storage solutions. Their flexibility, scalability, and remote monitoring make them an excellent option for those who want to optimize energy use, increase energy independence, and ensure uninterrupted power supply.
Datasheet FoxESS H1-3.0-E Hybrid
datasheet-foxess-h1-3-0-e-hybrid.pdf
| Parameter | H1-3.0-E / AC1-3.0-E | H1-3.7-E / AC1-3.7-E | H1-4.6-E / AC1-4.6-E | H1-5.0-E / AC1-5.0-E | H1-6.0-E / AC1-6.0-E |
|---|---|---|---|---|---|
| PV INPUT (HYBRID INVERTERS ONLY) | |||||
| Max. PV Input Power [W] | 3900 | 4680 | 5980 | 6500 | 7800 |
| Max. Input Voltage [V] | 600 | 600 | 600 | 600 | 600 |
| Start-up Voltage [V] | 75 | 75 | 75 | 75 | 75 |
| Nominal Voltage [V] | 360 | 360 | 360 | 360 | 360 |
| MPPT Operating Voltage Range [V] | 80-550 | 80-550 | 80-550 | 80-550 | 80-550 |
| Max. Input Current [A] | 13.5/13.5 | 13.5/13.5 | 13.5/13.5 | 13.5/13.5 | 13.5/13.5 |
| Max. Short-Circuit Current [A] | 15/15 | 15/15 | 15/15 | 15/15 | 15/15 |
| Number of Independent MPPTs | 2 | 2 | 2 | 2 | 2 |
| PV Strings per MPPT | 1 | 1 | 1 | 1 | 1 |
| BATTERIES | |||||
| Battery Type | Lithium Iron Phosphate (LFP) | ||||
| Battery Voltage [V] | 85-450 | ||||
| Max. Charging/Discharging Current [A] | 40 | ||||
| Communication | CAN (inverter communication), RS485 (BMS updates) | ||||
| AC INPUT/OUTPUT (AC GRID) | |||||
| Max. AC Input Power [VA] | 7000 | 7680 | 9600 | 10000 | 12000 |
| Max. AC Input Current (per phase) [A] | 31.8 | 34.9 | 43.6 | 45.5 | 54.5 |
| AC Rated Power [W] | 3000 | 3680 | 4600 | 5000 | 6000 |
| Max. Output Apparent Power [VA] | 3300 | 4048 | 5060 | 5500 | 6600 |
| Rated Output Current (per phase) [A] | 13.0 | 16.0 | 20.0 | 21.7 | 26.1 |
| Max. Output Current [A] | 14.3 | 17.6 | 22.0 | 23.9 | 28.7 |
| Nominal Grid Voltage [V] | 220/230/240 | ||||
| Nominal Grid Frequency [Hz] | 50/60 | ||||
| Power Factor | 1 (0.8 leading to 0.8 lagging) | ||||
| THDi | <3% @ rated power | ||||
| EPS OUTPUT (WITH BATTERIES) | |||||
| Max. Output Apparent Power [VA] | 5000 | 5000 | 6000 | 6000 | 6000 |
| Peak Apparent Power (60s) [VA] | 6000 | 6000 | 7200 | 7200 | 7200 |
| Max. Current (per phase) [A] | 21.7 | 21.7 | 26.1 | 26.1 | 26.1 |
| Nominal Output Voltage [V] | 220/230/240 | ||||
| Nominal Frequency [Hz] | 50/60 | ||||
| Power Factor | 1 (0.8 leading to 0.8 lagging) | ||||
| THDV (Linear load) | <2% @ rated power | ||||
| Transfer Time [ms] | <20 | ||||
| EFFICIENCY | |||||
| European Efficiency | 97.00% | 97.00% | 97.00% | 97.00% | 97.00% |
| Max. Efficiency | 97.80% | 97.80% | 97.80% | 97.80% | |
| Max. Efficiency (PV to BAT) | 98.50% | 98.50% | 98.50% | 98.50% | 98.50% |
| at Max. Load | |||||
| Max. Efficiency (BAT to AC) | 97.00% | 97.00% | 97.00% | 97.00% | 97.00% |
| at Max. Load | |||||
| PROTECTIONS | |||||
| Insulation Monitoring | Yes | ||||
| Residual Current Protection | Yes | ||||
| Reverse DC Polarity Protection | Yes | ||||
| Anti-islanding Protection | Yes | ||||
| AC Short-Circuit Protection | Yes | ||||
| AC Overcurrent/Overvoltage Protection | Yes | ||||
| DC Disconnect | Yes | ||||
| Surge Protection | DC: Type II/AC: Type III | ||||
| GENERAL INFORMATION | |||||
| Dimensions (W x H x D) [mm] | 430 x 410 x 178 | ||||
| Weight [kg] | 23 | ||||
| Mounting | Wall-mounted | ||||
| Inverter Topology | Transformerless | ||||
| Cooling | Natural | ||||
| Noise Emission [dB] | 35 | ||||
| Max. Operating Altitude [m] | 2000 | ||||
| Operating Temperature Range [°C] | -25 to 60 | ||||
| Humidity (Non-condensing) | 0% to 100% | ||||
| Ingress Protection | IP65 | ||||
| Standby Power Consumption [W] | <10 | ||||
| Monitoring | WiFi, LAN, 4G, GPRS (Planned) | ||||
| Communication | 2*RS485, DRM, Ripple Controller, USB | ||||
| Display | LCD, Mobile App, Web | ||||
| CERTIFICATION & STANDARDS | |||||
| Safety | EN 62109-1, EN 62109-2 | ||||
| EMC | EN 61000-6-2, EN 61000-6-3 | ||||
| Grid Standards | EN50549-1, C10/11, VDE-AR-N 4105, G98, G99, CEI 0-21, NRS 097-2-1, AS/NZS 4777.2 | ||||
