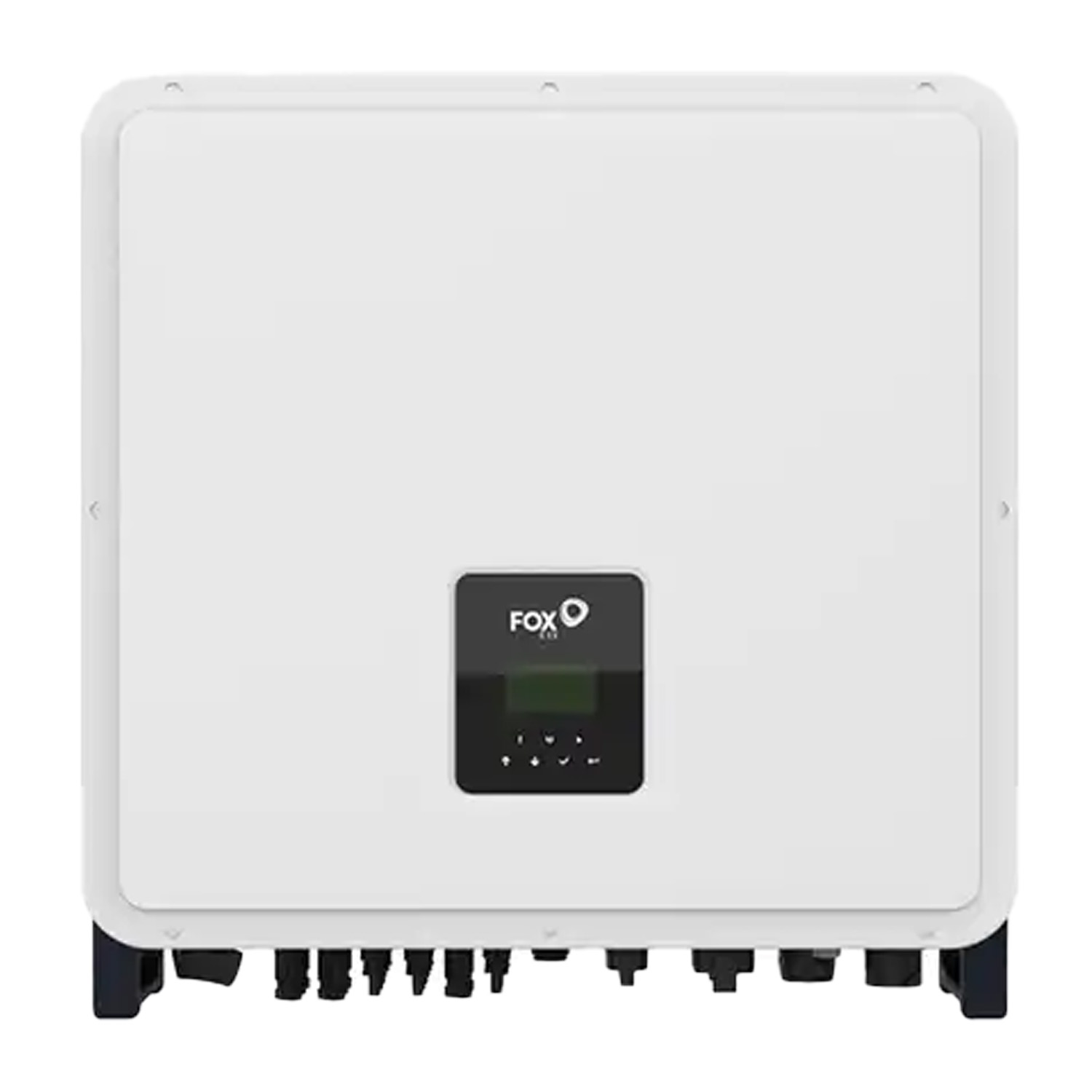

FoxESS H3 PRO Inverter – 29.9
SKU: F290B84
EAN: 5905951589657
| Manufacturer | |
|---|---|
| Rated power | |
| Power supply | |
| Hybrid device | |
| MPPT | 3 |
| AFCI | Optional |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| 4G | Optional |
| CAN | Yes |
| DRM | Yes |
| RS485 | Yes |
| USB | Yes |
| Wi-Fi | Yes |
| SPD Type II | |
| Weight | 62,6 kg |
| CN | 85044086 |
Datasheet FoxESS H3-Pro-29.9
datasheet-foxess-h3-pro-29-9.pdf
Product details
| Manufacturer | |
|---|---|
| Rated power | |
| Power supply | |
| Hybrid device | |
| MPPT | 3 |
| AFCI | Optional |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| 4G | Optional |
| CAN | Yes |
| DRM | Yes |
| RS485 | Yes |
| USB | Yes |
| Wi-Fi | Yes |
| SPD Type II | |
| Weight | 62,6 kg |
| CN | 85044086 |
FoxESS H3 PRO Series 15.0-30.0 AC3-PRO 15.0-30.0 – Three-Phase Hybrid Inverter
The FoxESS H3 PRO Series represents innovative three-phase hybrid inverters designed for flexible and efficient energy management. This device works with an intuitive mobile app, allowing complete system control and scalability with energy storage capacities of up to 83.88 kWh. It is an excellent choice for advanced photovoltaic systems.
Key Product Features
- Easy Installation: Flexible configuration and comprehensive safety features simplify installation and integration with the system.
- High-Performance Connection: The ability to connect high-efficiency FoxESS batteries ensures maximum effectiveness.
- IP65 Resistance: Designed to operate in all environmental conditions, both indoors and outdoors.
- Remote Monitoring: Monitor and manage the device’s operation through a mobile app or website.
Who is this a good choice for?
The FoxESS H3 PRO Series is an ideal solution for homeowners, businesses, and investors seeking scalable and highly efficient energy management solutions. With advanced technology, robust construction, and ease of integration, the H3 PRO Series is well-suited for extensive installations with high energy demands.
Datasheet FoxESS H3-Pro-29.9
datasheet-foxess-h3-pro-29-9.pdf
| PV Input (hybrid inverters only) | ||||||||
|---|---|---|---|---|---|---|---|---|
| Parameter | H3-Pro-15.0 AC3-Pro-15.0 | H3-Pro-20.0 AC3-Pro-20.0 | H3-Pro-22.0 AC3-Pro-22.0 | H3-Pro-24.9 AC3-Pro-24.9 | H3-Pro-25.0 AC3-Pro-25.0 | H3-Pro-29.9 AC3-Pro-29.9 | H3-Pro-30.0 AC3-Pro-30.0 | |
| Maximum Input Power [W] | 22500 | 30000 | 33000 | 37500 | 37500 | 45000 | 45000 | |
| Maximum Input Voltage [V] | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | |
| Nominal Input Voltage [V] | 750 | 750 | 750 | 750 | 750 | 750 | 750 | |
| Maximum Input Current [A] | 32 | 32 | 32 | 32 | 32 | 32 | 32 | |
| Maximum Short Circuit Current [A] | 40 | 40 | 40 | 40 | 40 | 40 | 40 | |
| MPPT Working Voltage [V] (full load) | 150~850 | 150~850 | 150~850 | 150~850 | 150~850 | 150~850 | 150~850 | |
| MPPT Working Voltage [V] (full load) | 170~850 | 230~850 | 250~850 | 280~850 | 280~850 | 340~850 | 340~850 | |
| Starting Voltage [V] | 160 | 160 | 160 | 160 | 160 | 160 | 160 | |
| Number of Independent MPPTs | 3 | 3 | 3 | 3 | 3 | 3 | 3 | |
| Number of Strings per MPPT | 2/2/2 | 2/2/2 | 2/2/2 | 2/2/2 | 2/2/2 | 2/2/2 | 2/2/2 | |
| Maximum Inverter Return Current [A] | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Batteries | ||||||||
| Battery Type | Lithium Iron Phosphate (LFP) | Lithium Iron Phosphate (LFP) | Lithium Iron Phosphate (LFP) | Lithium Iron Phosphate (LFP) | Lithium Iron Phosphate (LFP) | Lithium Iron Phosphate (LFP) | Lithium Iron Phosphate (LFP) | |
| Battery Voltage Range [V] | 150~800 | 150~800 | 150~800 | 150~800 | 150~800 | 150~800 | 150~800 | |
| Battery Voltage Range at Full AC Load [V] | 160~790 | 220~790 | 240~790 | 270~790 | 270~790 | 330~790 | 330~790 | |
| Maximum Charge/Discharge Current [A] | 50+50 | 50+50 | 50+50 | 50+50 | 50+50 | 50+50 | 50+50 | |
| Number of Battery Inputs | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
| Communication Interface | CAN | CAN | CAN | CAN | CAN | CAN | CAN | |
| AC Output | ||||||||
| Nominal Output Power [VA] | 15000 | 20000 | 22000 | 24900 | 25000 | 29900 | 30000 | |
| Max. Output Apparent Power [VA] | 16500 | 22000 | 24200 | 24900 | 27500 | 29900 | 33000 | |
| Nominal AC Grid Voltage [VAC] | 400 / 230; 380 / 220, 3L / N / PE | 400 / 230; 380 / 220, 3L / N / PE | 400 / 230; 380 / 220, 3L / N / PE | 400 / 230; 380 / 220, 3L / N / PE | 400 / 230; 380 / 220, 3L / N / PE | 400 / 230; 380 / 220, 3L / N / PE | 400 / 230; 380 / 220, 3L / N / PE | |
| Nominal AC Grid Frequency [Hz] | 50/60, ±5 | 50/60, ±5 | 50/60, ±5 | 50/60, ±5 | 50/60, ±5 | 50/60, ±5 | 50/60, ±5 | |
| Maximum AC Current (per phase) [A] | 25.0 | 33.3 | 36.7 | 37.7 | 41.7 | 45.4 | 50.0 | |
| Power Factor | 1 (Adjustable from 0.8 leading to 0.8 lagging) | 1 (Adjustable from 0.8 leading to 0.8 lagging) | 1 (Adjustable from 0.8 leading to 0.8 lagging) | 1 (Adjustable from 0.8 leading to 0.8 lagging) | 1 (Adjustable from 0.8 leading to 0.8 lagging) | 1 (Adjustable from 0.8 leading to 0.8 lagging) | 1 (Adjustable from 0.8 leading to 0.8 lagging) | |
| Export Limit | YES | YES | YES | YES | YES | YES | YES | |
| THDI [%] | < 3 for nominal power | < 3 for nominal power | < 3 for nominal power | < 3 for nominal power | < 3 for nominal power | < 3 for nominal power | < 3 for nominal power | |
| AC Input | ||||||||
| Maximum AC Input Power [VA] | 22500 | 30000 | 33000 | 35000 | 35000 | 35000 | 35000 | |
| Nominal AC Grid Voltage [V] | 400 / 230; 380 / 220, 3L / N / PE | 400 / 230; 380 / 220, 3L / N / PE | 400 / 230; 380 / 220, 3L / N / PE | 400 / 230; 380 / 220, 3L / N / PE | 400 / 230; 380 / 220, 3L / N / PE | 400 / 230; 380 / 220, 3L / N / PE | 400 / 230; 380 / 220, 3L / N / PE | |
| Nominal AC Grid Frequency [Hz] | 50 / 60, ±5 | 50 / 60, ±5 | 50 / 60, ±5 | 50 / 60, ±5 | 50 / 60, ±5 | 50 / 60, ±5 | 50 / 60, ±5 | |
| Maximum AC Current [A] (per phase) | 34.1 | 45.5 | 50.0 | 53.0 | 53.0 | 53.0 | 53.0 | |
| Power Factor | 1 (Adjustable from 0.8 capacitive to 0.8 inductive) | 1 (Adjustable from 0.8 capacitive to 0.8 inductive) | 1 (Adjustable from 0.8 capacitive to 0.8 inductive) | 1 (Adjustable from 0.8 capacitive to 0.8 inductive) | 1 (Adjustable from 0.8 capacitive to 0.8 inductive) | 1 (Adjustable from 0.8 capacitive to 0.8 inductive) | 1 (Adjustable from 0.8 capacitive to 0.8 inductive) | |
| EPS Output | ||||||||
| Maximum Apparent Power [VA] | 15000 | 20000 | 22000 | 25000 | 25000 | 30000 | 30000 | |
| Peak Apparent Power (60s) [VA] | 18000 | 24000 | 26400 | 30000 | 30000 | 36000 | 36000 | |
| Nominal EPS Grid Voltage [V] | 400 / 230, 3L / N / PE | 400 / 230, 3L / N / PE | 400 / 230, 3L / N / PE | 400 / 230, 3L / N / PE | 400 / 230, 3L / N / PE | 400 / 230, 3L / N / PE | 400 / 230, 3L / N / PE | |
| Nominal EPS Frequency [Hz] | 50 / 60 | 50 / 60 | 50 / 60 | 50 / 60 | 50 / 60 | 50 / 60 | 50 / 60 | |
| Maximum EPS Current (per phase) [A] | 22.7 | 30.3 | 33.3 | 37.9 | 37.9 | 45.5 | 45.5 | |
| Power Factor | 1 (Adjustable from 0.8 capacitive to 0.8 inductive) | 1 (Adjustable from 0.8 capacitive to 0.8 inductive) | 1 (Adjustable from 0.8 capacitive to 0.8 inductive) | 1 (Adjustable from 0.8 capacitive to 0.8 inductive) | 1 (Adjustable from 0.8 capacitive to 0.8 inductive) | 1 (Adjustable from 0.8 capacitive to 0.8 inductive) | 1 (Adjustable from 0.8 capacitive to 0.8 inductive) | |
| Parallel Connection (cascade) | Yes, up to 10 devices | Yes, up to 10 devices | Yes, up to 10 devices | Yes, up to 10 devices | Yes, up to 10 devices | Yes, up to 10 devices | Yes, up to 10 devices | |
| Switching Time [ms] | <20 | <20 | <20 | <20 | <20 | <20 | <20 | |
| THDV [%] | <3% for nominal power | <3% for nominal power | <3% for nominal power | <3% for nominal power | <3% for nominal power | <3% for nominal power | <3% for nominal power | |
| Efficiency | ||||||||
| MPPT Efficiency [%] | 99.90 | 99.90 | 99.90 | 99.90 | 99.90 | 99.90 | 99.90 | |
| Maximum Efficiency [%] | 97.80 | 97.80 | 97.80 | 97.80 | 97.80 | 97.80 | 97.80 | |
| Maximum Efficiency (BAT to AC) [%] | 97.60 | 97.60 | 97.60 | 97.60 | 97.60 | 97.60 | 97.60 | |
| Maximum Efficiency (PV to BAT) [%] | 98.10 | 98.10 | 98.10 | 98.10 | 98.10 | 98.10 | 98.10 | |
| European Efficiency [%] | 97.30 | 97.40 | 97.40 | 97.40 | 97.40 | 97.40 | 97.40 | |
| Protections | ||||||||
| PV Reverse Polarity Protection | YES | YES | YES | YES | YES | YES | YES | |
| Battery Reverse Polarity Protection | YES | YES | YES | YES | YES | YES | YES | |
| Island Operation Protection | YES | YES | YES | YES | YES | YES | YES | |
| Short Circuit Protection | YES | YES | YES | YES | YES | YES | YES | |
| Leakage Current Monitoring | YES | YES | YES | YES | YES | YES | YES | |
| Insulation Resistance Monitoring | YES | YES | YES | YES | YES | YES | YES | |
| Surge Protection Category | III (AC Side), II (DC Side) | III (AC Side), II (DC Side) | III (AC Side), II (DC Side) | III (AC Side), II (DC Side) | III (AC Side), II (DC Side) | III (AC Side), II (DC Side) | III (AC Side), II (DC Side) | |
| Reverse Polarity Protection | YES | YES | YES | YES | YES | YES | YES | |
| Overcurrent/Overtemperature Protection | YES | YES | YES | YES | YES | YES | YES | |
| AC/DC Surge Protection | Type II / Type II | Type II / Type II | Type II / Type II | Type II / Type II | Type II / Type II | Type II / Type II | Type II / Type II | |
| AFCI Protection | Optional | Optional | Optional | Optional | Optional | Optional | Optional | |
| DC Disconnect | Optional | Optional | Optional | Optional | Optional | Optional | Optional | |
| PV String Monitoring | Optional | Optional | Optional | Optional | Optional | Optional | Optional | |
| General Information | ||||||||
| Dimensions (H*W*D) [mm] | 600*560*225 | 600*560*225 | 600*560*225 | 600*560*225 | 600*560*225 | 600*560*225 | 600*560*225 | |
| Packaging Dimensions (H*W*D) [mm] | 720*680*370 | 720*680*370 | 720*680*370 | 720*680*370 | 720*680*370 | 720*680*370 | 720*680*370 | |
| Net Weight [kg] | 52.5 | 52.5 | 52.5 | 52.5 | 52.5 | 52.5 | 52.5 | |
| Gross Weight [kg] | 57.5 | 57.5 | 57.5 | 57.5 | 57.5 | 57.5 | 57.5 | |
| Mounting | Wall-mounted | Wall-mounted | Wall-mounted | Wall-mounted | Wall-mounted | Wall-mounted | Wall-mounted | |
| Operating Temperature Range [°C] | -25 ~ +60 (Limit at 45) | -25 ~ +60 (Limit at 45) | -25 ~ +60 (Limit at 45) | -25 ~ +60 (Limit at 45) | -25 ~ +60 (Limit at 45) | -25 ~ +60 (Limit at 45) | -25 ~ +60 (Limit at 45) | |
| Storage Temperature [°C] | -40 ~ +70 | -40 ~ +70 | -40 ~ +70 | -40 ~ +70 | -40 ~ +70 | -40 ~ +70 | -40 ~ +70 | |
| Noise Emission (typ) [dB] | <45 | <45 | <60 | <60 | <60 | <60 | <60 | |
| Humidity [%] | 0 ~ 95 (Non-condensing) | 0 ~ 95 (Non-condensing) | 0 ~ 95 (Non-condensing) | 0 ~ 95 (Non-condensing) | 0 ~ 95 (Non-condensing) | 0 ~ 95 (Non-condensing) | 0 ~ 95 (Non-condensing) | |
| Altitude [m] | <4000 | <4000 | <4000 | <4000 | <4000 | <4000 | <4000 | |
| Protection Class | I | I | I | I | I | I | I | |
| Protection Degree | IP65 (For outdoor use) | IP65 (For outdoor use) | IP65 (For outdoor use) | IP65 (For outdoor use) | IP65 (For outdoor use) | IP65 (For outdoor use) | IP65 (For outdoor use) | |
| Power Consumption [W] | 200 active idle state, 18 idle state | 200 active idle state, 18 idle state | 200 active idle state, 18 idle state | 200 active idle state, 18 idle state | 200 active idle state, 18 idle state | 200 active idle state, 18 idle state | 200 active idle state, 18 idle state | |
| Idle Mode | YES | YES | YES | YES | YES | YES | YES | |
| Cooling | Smart fan cooling | Smart fan cooling | Smart fan cooling | Smart fan cooling | Smart fan cooling | Smart fan cooling | Smart fan cooling | |
| Inverter Topology | Transformerless | Transformerless | Transformerless | Transformerless | Transformerless | Transformerless | Transformerless | |
| Communication | Meter, WIFI, 4G (Optional), DRM, USB, BMS (CAN), RS485 | Meter, WIFI, 4G (Optional), DRM, USB, BMS (CAN), RS485 | Meter, WIFI, 4G (Optional), DRM, USB, BMS (CAN), RS485 | Meter, WIFI, 4G (Optional), DRM, USB, BMS (CAN), RS485 | Meter, WIFI, 4G (Optional), DRM, USB, BMS (CAN), RS485 | Meter, WIFI, 4G (Optional), DRM, USB, BMS (CAN), RS485 | Meter, WIFI, 4G (Optional), DRM, USB, BMS (CAN), RS485 | |
| LCD Display | Backlit 16*4 characters | Backlit 16*4 characters | Backlit 16*4 characters | Backlit 16*4 characters | Backlit 16*4 characters | Backlit 16*4 characters | Backlit 16*4 characters | |
| Button | 4*Capacitive touch button | 4*Capacitive touch button | 4*Capacitive touch button | 4*Capacitive touch button | 4*Capacitive touch button | 4*Capacitive touch button | 4*Capacitive touch button | |
| Buzzer | 1, Internal (EPS and ground fault) | 1, Internal (EPS and ground fault) | 1, Internal (EPS and ground fault) | 1, Internal (EPS and ground fault) | 1, Internal (EPS and ground fault) | 1, Internal (EPS and ground fault) | 1, Internal (EPS and ground fault) | |
| Certification and Standards | ||||||||
| Safety | EN 62109-1, EN 62109-2 | EN 62109-1, EN 62109-2 | EN 62109-1, EN 62109-2 | EN 62109-1, EN 62109-2 | EN 62109-1, EN 62109-2 | EN 62109-1, EN 62109-2 | EN 62109-1, EN 62109-2 | |
| EMC | IEC 61000-6-2, IEC 61000-6-3 | IEC 61000-6-2, IEC 61000-6-3 | IEC 61000-6-2, IEC 61000-6-3 | IEC 61000-6-2, IEC 61000-6-3 | IEC 61000-6-2, IEC 61000-6-3 | IEC 61000-6-2, IEC 61000-6-3 | IEC 61000-6-2, IEC 61000-6-3 | |
