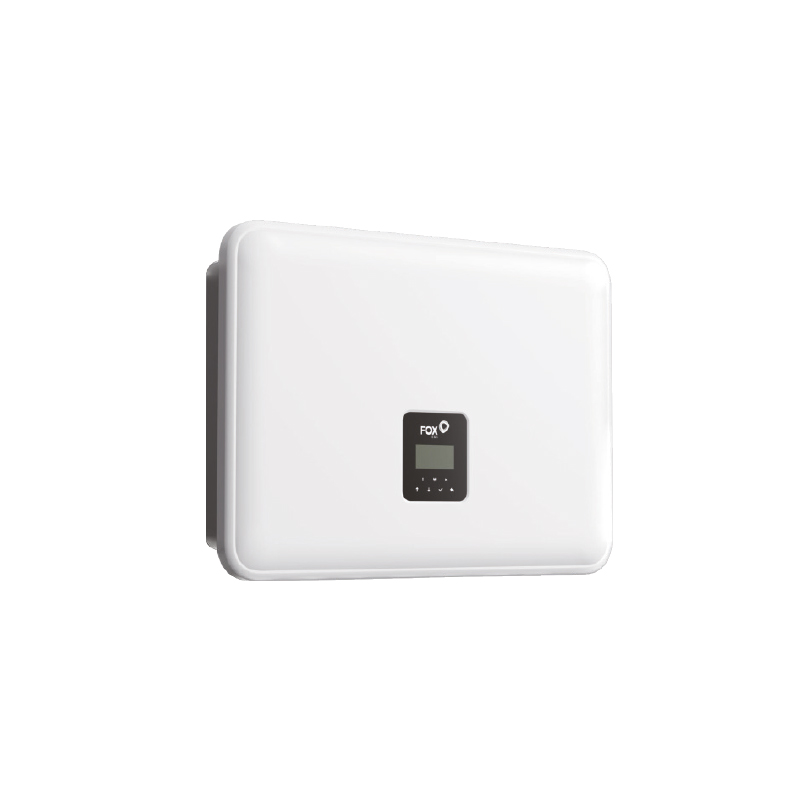

Inverter – FoxESS – P3-6.0-SH – hybrid – HV
SKU: P3-6.0-SH
Price
1 268,28 €
Incl. VAT
Incl. VAT
Falownik FoxESS 6kW, hybrydowy, trójfazowy, 2 mppt, wyświetlacz, wifi, AFCI
UWAGA: NO WIFI na opakowaniu to oznaczenie o braku zewnętrznego dongla. Falownik posiada moduł wifi wbudowany
Datasheet
Datasheet-Foxess-P3-EN-1.pdf
Product details
P3-S
P3-S is a series of Fox ESS three-phase hybrid inverters compatible with high-voltage LFP lithium-ion batteries. It enables solar energy use during the day and storage for the night, offering charging and discharging power of up to 15 kW. System operation can be monitored remotely via a mobile app or website using FoxCloud V2.0.
Key benefits of P3-S
- Nominal output power 5–15 kW and 2–3 independent MPPT circuits, depending on the model.
- Support for LFP batteries with a voltage of 100–800 V with a maximum charging and discharging current of 50 A.
- EPS emergency power output with a maximum apparent power of 5000–15000 VA, depending on the model, and a transfer time below 20 ms.
- Protection rating IP65 allowing outdoor use and wall mounting.
- Short-circuit, overcurrent and thermal protection and Type II surge protection on the PV and AC sides.
- Standard 10-year warranty.
Who is this a good choice for?
P3-S is an option for photovoltaic system users who want to store energy in Fox ESS batteries for use at night. It is also suitable for users who need an EPS emergency power output and remote system monitoring via an app or website.
Datasheet
Datasheet-Foxess-P3-EN-1.pdf
| Parameter | P3-5.0-SH | P3-6.0-SH | P3-8.0-SH | P3-10.0-SH | P3-12.0-SH | P3-15.0-SH |
|---|---|---|---|---|---|---|
| DC input data | ||||||
| Maximum PV power (Wp) | 11000 | 14000 | 18000 | 20000 | 24000 | 30000 |
| Maximum input power (W) | 11000 | 13200 | 17600 | 18000 | 22500 | |
| Maximum input voltage (V) | 1000 [1] | |||||
| Nominal input voltage (V) | 620 | |||||
| Maximum MPPT input current (A) | 20/20 | |||||
| Maximum MPPT short-circuit current (A) | 25/25 | |||||
| Maximum MPPT input power (W) | 10000/10000 | |||||
| Minimum PV operating voltage (V) | 90 [2] | |||||
| MPPT operating voltage range (V) | 120 ~ 950 | |||||
| Start-up voltage (V) | 140 | |||||
| Number of independent MPPTs | 2 | 3 | ||||
| Number of strings per MPPT | 1+1 | 1+1+1 | ||||
| Batteries | ||||||
| Battery type | Lithium-ion (LFP) | |||||
| Battery voltage range (V) | 100 ~ 800 | |||||
| Minimum battery operating voltage (V) | 100 | |||||
| Minimum battery voltage at full AC load (V) | 108 | 125 | 160 | 210 | 250 | 310 |
| Maximum charging/discharging current (A) | 50 | |||||
| Communication interface | CAN | |||||
| AC output data | ||||||
| Nominal output power (W) | 5000 | 6000 | 8000 | 10000 | 12000 | 15000 |
| Maximum apparent power (VA) | 5500 | 6600 | 8800 | 11000 [3] | 13200 | 16500 |
| Nominal grid voltage (V) | 400/230; 380/220, 3L/N/PE | |||||
| Rated grid frequency (Hz) | 50/60, ±5 | |||||
| Rated AC current per phase (A) | 7,6 | 9,1 | 12,1 | 15,2 | 18,2 | 22,7 |
| Maximum AC current per phase (A) | 8,3 | 10,0 | 13,3 | 16,7 | 20,0 | 25,0 |
| Power factor | 1 (adjustable from 0.8 capacitive to 0.8 inductive) | |||||
| Total harmonic current distortion THDI (%) | <3 at nominal power | |||||
| AC input data | ||||||
| Maximum AC input power (VA) | 6000 | 7200 | 9600 | 12000 | 14400 | 16000 |
| Nominal AC grid voltage (V) | 400/230; 380/220, 3L/N/PE | |||||
| Nominal AC grid frequency (Hz) | 50/60, ±5 | |||||
| Maximum AC current per phase (A) | 9,1 | 10,9 | 14,5 | 18,2 | 21,8 | 24,2 |
| EPS output data | ||||||
| Maximum apparent power (VA) | 5000 | 6000 | 8000 | 10000 | 12000 | 15000 |
| Peak apparent power for 60 s (VA) | 6000 | 7200 | 9600 | 12000 | 14400 | 15000 |
| Nominal EPS grid voltage (V) | 400/230; 380/220, 3L/N/PE | |||||
| Nominal EPS grid frequency (Hz) | 50/60 | |||||
| Maximum EPS current per phase (A) | 7,2 | 8,7 | 11,6 | 14,5 | 17,4 | 21,7 |
| Power factor | 1 (adjustable from 0.8 capacitive to 0.8 inductive) | |||||
| Switching time (ms) | <20 | |||||
| Total voltage harmonic distortion THDV (%) | <3 under linear load | |||||
| Efficiency | ||||||
| MPPT efficiency (%) | 97,30 | 97,70 | 97,90 | |||
| Maximum efficiency (%) | 99,90 | |||||
| European efficiency (%) | 97,20 | |||||
| Protection | ||||||
| PV reverse polarity protection | YES | |||||
| Battery reverse polarity protection | YES | |||||
| Anti-islanding protection | YES | |||||
| Short-circuit protection | YES | |||||
| Leakage current monitoring | YES | |||||
| Insulation resistance monitoring | YES | |||||
| Overvoltage category | III (AC side), II (DC side) | |||||
| Reverse polarity protection | YES | |||||
| Overcurrent / thermal protection | YES | |||||
| AC/DC surge protection | Type II(PV)/Type II(AC) | |||||
| AFCI protection | Optional | |||||
| DC disconnector | YES | |||||
| Dimensions and weight | ||||||
| Dimensions (W × H × D) (mm) | 600*450*226 | |||||
| Net weight (kg) | 34 | |||||
| Operating conditions | ||||||
| Mounting method | Wall mounting | |||||
| Operating temperature range (°C) | -25 ~ +60 (derating at 45) | |||||
| Storage temperature (°C) | -40 ~ +70 | |||||
| Storage/operating relative humidity (%) | 0 ~ 100 | |||||
| Working height (m) | <4000 (derating above 2000) | |||||
| Protection class | AND | |||||
| Degree of protection | IP65 (for outdoor use) | |||||
| Energy consumption (W) | 20 ~ 25 | |||||
| Idle mode | YES | |||||
| Cooling | Natural | Fan cooling | ||||
| Noise level (dB) | <40 | <55 | ||||
| General information | ||||||
| Inverter topology | Transformerless | |||||
| Communication | Ethernet, EMS(RS485), meter, WLAN(Wifi+LAN+Bluetooth), 4G(optional), DRM, Ripple Control, USB, BMS(CAN), SG Ready | |||||
| Buttons | 4 capacitive touch buttons | |||||
| Audible alarm | 1, Internal (EPS and ground fault) | |||||
| Warranty | ||||||
| Product warranty (years) | 10 | |||||
[1] For a 1000 V system, the maximum PV operating voltage is 950 V. [2] The inverter startup voltage is 90 V. [3] In Belgium, the apparent power of the 10000 W model is limited to 10000 VA.
