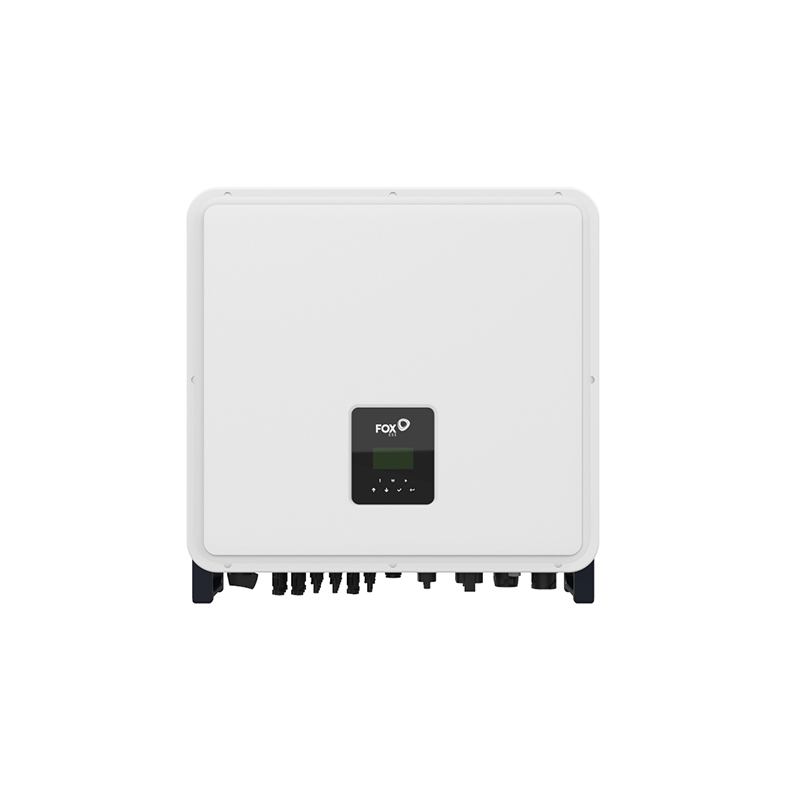

Inverter – FoxESS – P3-PRO-30.0 – hybrid – HV
SKU: P3-PRO-30.0
Price
3 002,75 €
Incl. VAT
Incl. VAT
Falownik hybrydowy FoxESS P3-Pro-30.0
UWAGA: NO WIFI na opakowaniu to oznaczenie o braku zewnętrznego dongla. Falownik posiada moduł wifi wbudowany
Datasheet
Datasheet-P3-PRO-EN-25.pdf
Product details
P3 PRO
P3 PRO by FOX ESS is a series of three-phase hybrid inverters compatible with high-voltage lithium iron phosphate (LFP) batteries. It enables the use of solar energy during the day and storage for the night, offering charging and discharging power of up to 30 kW. Remote monitoring via a mobile app or website allows system performance to be tracked in FoxCloud V2.0.
Key benefits of P3 PRO
- Nominal output power 15–30 kVA and maximum PV power of 30,000–60,000 Wp, depending on the model.
- Three independent MPPT systems, two strings per MPPT, and an MPPT efficiency of 99.9%.
- Two battery inputs and a maximum charging and discharging current of 50 + 50 A for use with LFP batteries.
- EPS output with a switchover time of less than 20 ms and a maximum apparent power of 15–30 kVA, depending on the model; up to 10 units can be connected in parallel.
- Maximum efficiency 97.8% and a function for limiting energy export to the grid.
- Protection rating IP65 permitting outdoor use and type II surge protection on the AC and DC sides.
Who is this a good choice for?
P3 PRO is an option for photovoltaic system users who want to store energy for nighttime use and use the EPS output. Users who need to expand their system can connect up to 10 units in parallel, while those who want to oversee its operation remotely can use monitoring in FoxCloud V2.0.
Datasheet
Datasheet-P3-PRO-EN-25.pdf
| Parameter | P3-Pro-15.0 | P3-Pro-20.0 | P3-Pro-25.0 | P3-Pro-30.0 |
|---|---|---|---|---|
| DC input data | ||||
| Maximum PV power (Wp) | 30000 | 40000 | 50000 | 60000 |
| Maximum input power (W) | 7500/7500/7500 | 10000/10000/10000 | 12500/12500/12500 | 15000/15000/15000 |
| Maximum input voltage (V) | 1000 | |||
| Nominal input voltage (V) | 750 | |||
| Maximum input current (A) | 32 | |||
| Maximum short-circuit current (A) | 40 | |||
| MPPT operating voltage (V) | 170 ~ 850 | 230 ~ 850 | 280 ~ 850 | 340 ~ 850 |
| MPPT operating voltage at full load (V) | 150 ~ 850 | |||
| Start-up voltage (V) | 160 | |||
| Number of independent MPPTs | 3 | |||
| Number of strings per MPPT | 2/2/2 | |||
| Maximum inverter reverse current (A) | 0 | |||
| Batteries | ||||
| Battery type | Lithium iron phosphate (LFP) | |||
| Battery voltage range (V) | 160 ~ 790 | 220 ~ 790 | 270 ~ 790 | 330 ~ 790 |
| Maximum charging/discharging current (A) | 50+50 | |||
| Number of battery inputs | 2 | |||
| Communication interface | CAN | |||
| AC output data | ||||
| Nominal output power (VA) | 15000 | 20000 | 25000 | 30000 |
| Maximum apparent power (VA) | 16500 | 22000 | 27500 | 33000 |
| Nominal AC grid voltage (V) | 400 / 230 ; 380 / 220 , 3L / N / PE | |||
| Nominal AC grid frequency (Hz) | 50 / 60 , ±5 | |||
| Maximum AC current per phase (A) | 25,0 | 33,3 | 41,7 | 50,0 |
| Power factor | 1 (adjustable from 0.8 capacitive to 0.8 inductive) | |||
| Export limit | Yes | |||
| THDI (%) | <3 at nominal power | |||
| AC input data | ||||
| Maximum AC input power (VA) | 22500 | 30000 | 35000 | |
| Nominal AC grid voltage (V) | 400 / 230 ; 380 / 220 , 3L / N / PE | |||
| Nominal AC grid frequency (Hz) | 50 / 60 , ±5 | |||
| Maximum AC current per phase (A) | 34,1 | 45,5 | 53,0 | |
| Power factor | 1 (adjustable from 0.8 capacitive to 0.8 inductive) | |||
| EPS output data | ||||
| Maximum apparent power (VA) | 15000 | 20000 | 25000 | 30000 |
| Peak apparent power for 60 s (VA) | 18000 | 24000 | 30000 | 36000 |
| Nominal EPS grid voltage (V) | 400 / 230 ; 380 / 220 , 3L / N / PE | |||
| Nominal EPS grid frequency (Hz) | 50 / 60 | |||
| Maximum EPS current per phase (A) | 22,7 | 30,3 | 37,9 | 45,5 |
| Power factor | 1 (adjustable from 0.8 capacitive to 0.8 inductive) | |||
| Parallel connection (cascade) | Yes, up to 10 devices | |||
| Switching time (ms) | <20 | |||
| THDV (%) | <3 at nominal power | |||
| Efficiency | ||||
| MPPT efficiency (%) | 99,90 | |||
| Maximum efficiency (%) | 97,80 | |||
| Maximum battery–AC efficiency (%) | 97,60 | |||
| Maximum PV–battery efficiency (%) | 98,10 | |||
| European efficiency (%) | 97,30 | 97,40 | ||
| Protection | ||||
| PV reverse polarity protection | Yes | |||
| Battery reverse polarity protection | Yes | |||
| Anti-islanding protection | Yes | |||
| Short-circuit protection | Yes | |||
| Leakage current monitoring | Yes | |||
| Insulation resistance monitoring | Yes | |||
| Overvoltage category | III (AC side), II (DC side) | |||
| Reverse polarity protection | Yes | |||
| Overcurrent / thermal protection | Yes | |||
| AC/DC surge protection | Type II/Type II | |||
| AFCI protection | Optional | |||
| DC disconnector | Optional | |||
| PV string monitoring | Optional | |||
| Dimensions and weight | ||||
| Dimensions (W × H × D) (mm) | 600*560*225 | |||
| Net weight (kg) | 52,5 | |||
| Operating conditions | ||||
| Installation | Wall-mounted | |||
| Operating temperature range (°C) | -25 ~ +60 (derating at 45) | |||
| Storage temperature (°C) | -40 ~ +70 | |||
| Humidity (%) | 0 ~ 95 (Non-condensing) | |||
| Height (m) | <4000 | |||
| Protection class | AND | |||
| Degree of protection | IP65 (for outdoor use) | |||
| Cooling | Intelligent active cooling | |||
| Typical noise emission (dB) | <45 | <60 | ||
| General information | ||||
| Power consumption (W) | 200 active idle, 18 idle | |||
| Idle mode | Yes | |||
| Inverter topology | Transformerless | |||
| Communication | Meter, WIFI, 4G (Optional), DRM, USB, BMS (CAN), RS485 | |||
| Buttons | 4*Capacitive touch button | |||
| Audible alarm | 1, Internal (EPS and ground fault) | |||
| Certificates and standards | ||||
| Safety | EN 62109-1, EN 62109-2 | |||
| Electromagnetic compatibility | IEC 61000-6-2, IEC 61000-6-3 | |||
[1] The maximum input power per MPPT is 15 kW. [2] At the voltage limit of 1000 V, the inverter's maximum PV operating voltage is 950 V. Exceeding 955 V triggers a high-voltage error.
