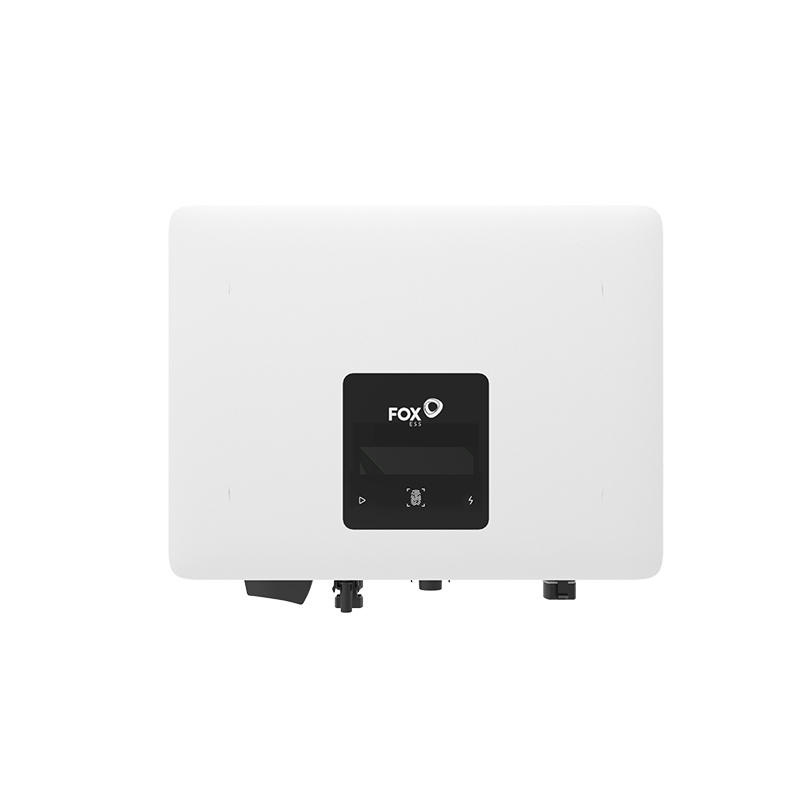

Inverter – FoxESS – S2500-G2_AFCI_WILAN – single-phase
SKU: S2500-G2_AFCI_WILAN
Price
268,71 €
Incl. VAT
Incl. VAT
Falownik FoxESS 2,5kW, on-grid, jednofazowy, 1 mppt, wyświetlacz, wifi, lan, AFCI
Datasheet
Datasheet-S2500-G2-EN.pdf
Product details
S(G2)
S(G2) is a series of single-phase photovoltaic inverters with one MPPT and a transformerless topology. The nominal AC power is 700–3300 W, and the maximum efficiency is 97.2–97.4%, depending on the model. The series enables remote monitoring of system performance in real time via a smartphone app or web portal.
Key advantages of S(G2)
- PV input parameters: start-up voltage 60 V, MPPT voltage range 50–480 V and MPPT efficiency 99%.
- Outdoor installation: IP65 protection rating and operating temperature range from -25 to +60°C.
- Remote access: Wi-Fi as standard, optional GPRS or LAN, as well as an LCD screen and a Polish-language menu.
- Expansion capability: operation with FoxESS energy storage systems requires additional FoxESS equipment; the series also supports power optimizers.
- Protection: protection against islanding, reverse DC polarity, AC short circuits and surges, and a built-in DC disconnector.
- 12-year warranty in accordance with the datasheet.
Who is this a good choice for?
S(G2) is an option for photovoltaic system owners who need a single-phase inverter with one MPPT and a nominal AC power output of 700–3300 W. The series meets the needs of users who want to monitor system operation remotely or plan to add FoxESS energy storage using the required additional equipment.
Datasheet
Datasheet-S2500-G2-EN.pdf
| Parameter | S700 G2 | S1000 G2 | S1500 G2 | S2000 G2 | S2500 G2 | S3000 G2 | S3300 G2 |
|---|---|---|---|---|---|---|---|
| DC input data | |||||||
| Maximum recommended DC power (W) | 1050 | 1500 | 2250 | 3000 | 3750 | 4500 | 4950 |
| Maximum DC voltage (V) | 500 | ||||||
| Nominal DC operating voltage (V) | 360 | ||||||
| Maximum input current (A) | 14 | ||||||
| Maximum short-circuit current (A) | 18 | ||||||
| MPPT voltage range (V DC) | 50-480 | ||||||
| Start-up voltage (V) | 60 | ||||||
| Number of MPPT trackers | 1 | ||||||
| Number of strings per MPPT | 1 | ||||||
| AC output data | |||||||
| Nominal AC power (W) | 700 | 1000 | 1500 | 2000 | 2500 | 3000 | 3300 |
| Maximum AC apparent power (VA) | 800 | 1100 | 1650 | 2200 | 2750 | 3300 | |
| Rated grid voltage (V AC) | 220/230/240 | ||||||
| Rated grid frequency (Hz) | 50/60 | ||||||
| Nominal AC current (A) | 3,0 | 4,3 | 6,5 | 8,7 | 10,9 | 13,0 | 14,3 |
| Maximum AC current (A) | 3,5 | 4,8 | 7,2 | 9,6 | 12,0 | 14,3 | |
| Displacement power factor | 1 (Adjustable from 0.8 leading to 0.8 lagging) | ||||||
| Total harmonic current distortion at rated power THDi (%) | <3 | ||||||
| Efficiency | |||||||
| MPPT efficiency (%) | 99,00 | ||||||
| European efficiency (%) | 96,50 | 96,80 | |||||
| Maximum efficiency (%) | 97,20 | 97,30 | 97,40 | ||||
| Protection | |||||||
| DC reverse polarity protection | YES | ||||||
| Anti-islanding protection | YES | ||||||
| Insulation monitoring | YES | ||||||
| Residual current protection | YES | ||||||
| AC short-circuit protection | YES | ||||||
| AC output overcurrent protection | YES | ||||||
| AC output overvoltage protection | YES | ||||||
| Surge protection | YES | ||||||
| Thermal protection | YES | ||||||
| Built-in DC disconnect switch | YES | ||||||
| Certificates | |||||||
| Safety standards | IEC 62109-1/2 | ||||||
| Electromagnetic compatibility | IEC 61000-6-1/IEC 61000-6-2/1 EC 61000-6-3 | ||||||
| Certification | EN 50549; C10/11; IEC 61727; ABNT NBR 16149/16150; IEC62116 | ||||||
| Dimensions and weight | |||||||
| Dimensions (W × H × D) (mm) | 290*220*116 | ||||||
| Weight (kg) | 5,4 | ||||||
| Operating conditions | |||||||
| Cooling | Natural (Convection) | ||||||
| Degree of protection according to IEC60529 | IP65 | ||||||
| Overvoltage category | III (AC side), II (PV side) | ||||||
| Typical noise level (dB) | <30 | ||||||
| Maximum working height (m) | 3000 | ||||||
| Operating temperature range (°C) | -25 / +60 | ||||||
| Humidity (%) | 0-100% (non-condensing) | ||||||
| Nighttime self-consumption (W) | <3 | ||||||
| General data and communication | |||||||
| Topology | Transformerless | ||||||
| Monitoring module | WIFI (standard)/GPRS (optional)/LAN (optional) | ||||||
| Communication | RS485, meter, CT, ISO alarm | ||||||
| Display and user interface | LCD screen, touch button, mobile app, website, Polish menu | ||||||
| Power optimizer support | Yes | ||||||
| Warranty | |||||||
| Product warranty (years) | 12 | ||||||
