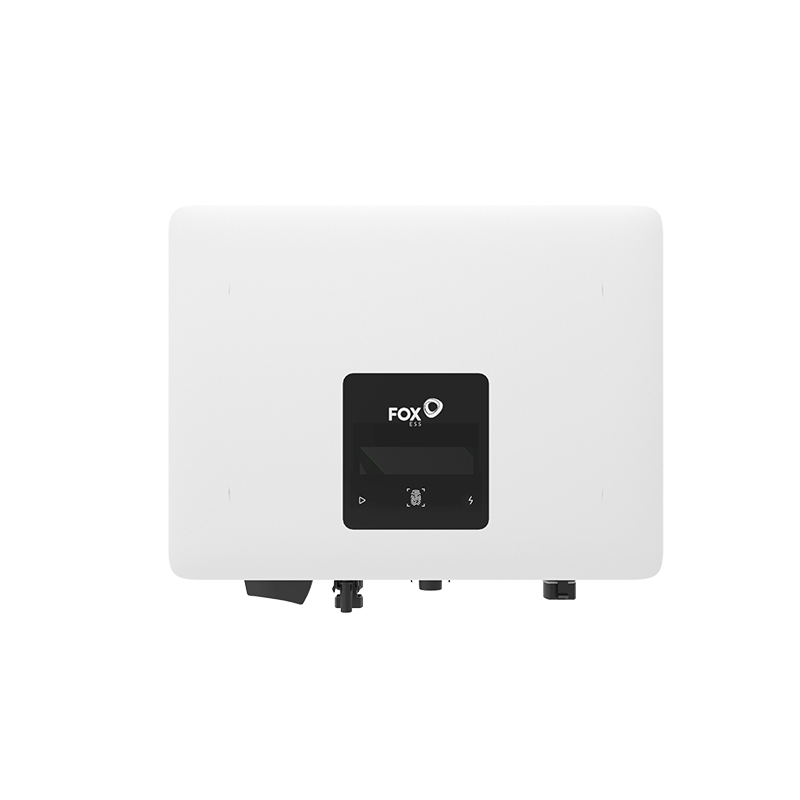

Inverter – FoxESS – S3300-G2_AFCI_WILAN – single-phase

S(G2)

S(G2) is a series of single-phase photovoltaic inverters with one MPPT and a transformerless topology. It includes devices with a nominal AC power of 700–3300 W, depending on the model, and a maximum efficiency of 97.2–97.4%. It enables remote monitoring of system performance in real time via a smartphone app or web portal.

Key advantages of S(G2)

• Start-up voltage 60 V and an MPPT voltage range of 50–480 V with an MPPT efficiency of 99%.
• Protection rating IP65 and the option of outdoor installation; operating temperature range from -25 to +60 °C.
• Wi-Fi monitoring as standard, optionally via GPRS or LAN; LCD screen, touch button and menu in Polish.
• Expandable with a FoxESS energy storage system with additional FoxESS equipment and support for power optimizers.
• Electrical and thermal protection, including protection against reverse DC polarity, islanding and overvoltage, as well as a built-in DC disconnect switch.
• 12-year warranty, natural convection cooling and a weight of 5.4 kg with dimensions of 290 × 220 × 116 mm.

Who is this a good choice for?

S(G2) is a choice for photovoltaic system owners who need a single-phase inverter with one MPPT and real-time system monitoring. The series also meets the needs of users planning to add FoxESS energy storage, provided that the required additional equipment is used.
