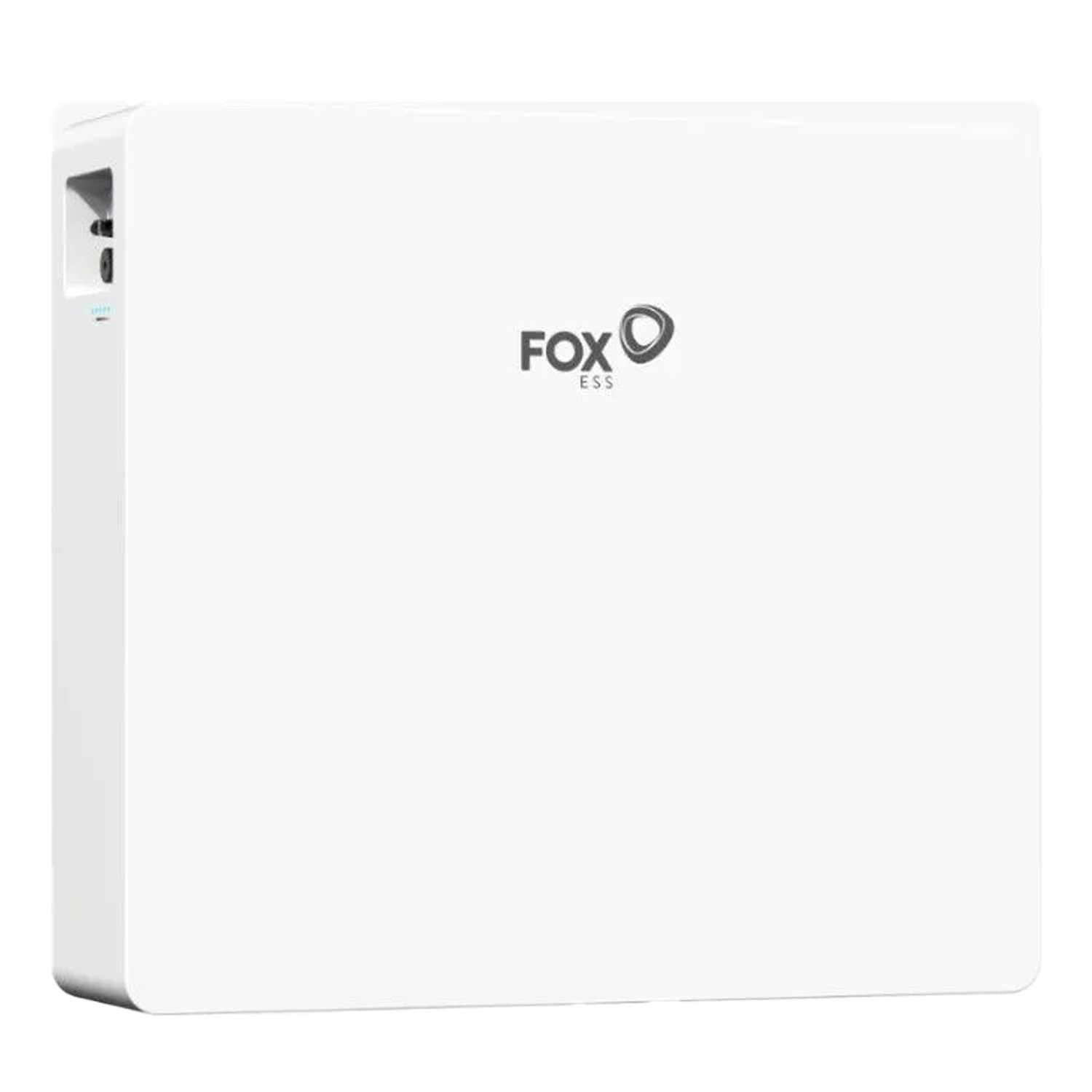

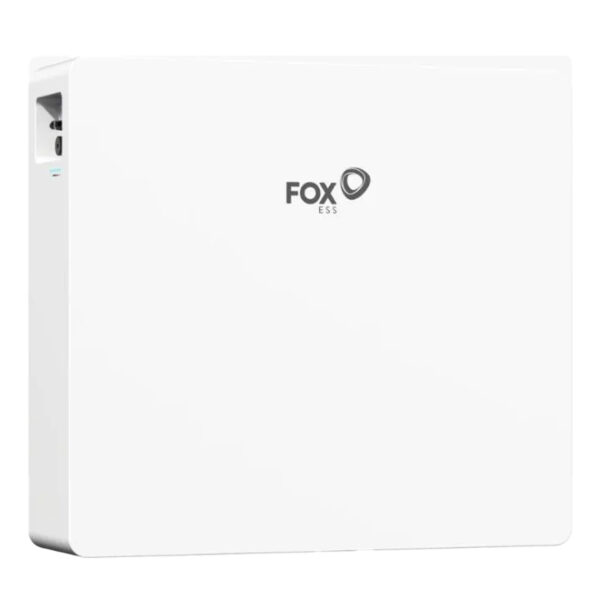

FoxESS Storage Battery HV EP12
SKU: F11CB1
EAN: 2010000034651
| Manufacturer | |
|---|---|
| Capacity | |
| Number of charging cycles | |
| Battery cell type | LiFePO4 |
| Module voltage | |
| Charging current | |
| Discharge current | |
| Depth of Discharge | |
| CAN | Yes |
| Net width | |
| Net depth | |
| Net height | |
| Weight | 110 kg |
| CN | 85076000 |
Price
2 738,74 €
Gross
Gross
Datasheet FoxESS EV EP12
FoxESS-EV-EP12-Datasheet.pdf
Certificate of compliance 1 FoxESS EV EP12
FoxESS-EV-EP12-Certificate-of-compliance-1.pdf
Certificate of compliance 2 FoxESS EV EP12
FoxESS-EV-EP12-Certificate-of-compliance-2.pdf
Certificate of compliance 3 FoxESS EV EP12
FoxESS-EV-EP12-Certificate-of-compliance-3.pdf
Product details
| Manufacturer | |
|---|---|
| Capacity | |
| Number of charging cycles | |
| Battery cell type | LiFePO4 |
| Module voltage | |
| Charging current | |
| Discharge current | |
| Depth of Discharge | |
| CAN | Yes |
| Net width | |
| Net depth | |
| Net height | |
| Weight | 110 kg |
| CN | 85076000 |
Key features of EP12:
- Scalability up to 46.08 kWh by connecting up to 4 units in parallel.
- High-performance prismatic LiFePO4 cells with 90% depth of discharge.
- High nominal voltage of 384 V and battery cycle efficiency ≥95%.
- Durable construction with IP65 protection rating, suitable for both indoor and outdoor installation.
- Flexible mounting options: wall-mounted or floor-standing.
- Compatible with a wide range of inverters (H1, KH, H3, H3-Pro, P3-S, US series).
Who is it a good choice for?
EP12 is an excellent choice for users seeking a reliable, scalable, and highly efficient energy storage system that adapts flexibly to growing needs. Thanks to its versatility, the option for indoor or outdoor installation, and broad inverter compatibility, this system is ideal for demanding home installations as well as smaller commercial applications, ensuring stable and optimized energy management.
Datasheet FoxESS EV EP12
FoxESS-EV-EP12-Datasheet.pdf
Certificate of compliance 1 FoxESS EV EP12
FoxESS-EV-EP12-Certificate-of-compliance-1.pdf
Certificate of compliance 2 FoxESS EV EP12
FoxESS-EV-EP12-Certificate-of-compliance-2.pdf
Certificate of compliance 3 FoxESS EV EP12
FoxESS-EV-EP12-Certificate-of-compliance-3.pdf
| Parameter | Value |
|---|---|
| OPERATIONAL CHARACTERISTICS | |
| Device Compatibility | All series: H1, KH, H3, H3-Pro, P3-S, US |
| Battery Type | LiFePO4 Prismatic Cell |
| Nominal Capacity (kWh) | 11.52 |
| Nominal Voltage (V) | 384 |
| Rated Power (kW) | 5.8 |
| Operating Voltage (V) | 348~438 |
| Maximum Charge/Discharge Current (A) | 30 |
| Recommended Discharge Current (A) | 15 |
| Peak Discharge Current (A) | 65 @ 60s |
| Peak Charge Current (A) | 36 @ 5s |
| Battery Efficiency (full cycle) (%) | ≥95 |
| Depth of Discharge (%) | 90 |
| Cycle Life | ≥6000 |
| Communication | CAN |
| Display | LED*5 |
| Scalability | Up to 4 devices in parallel |
| OPERATING CONDITIONS | |
| Installation Location | Outdoor / Indoor |
| Operating Temperature (°C) | Charging: 0~55°C; Discharging: -10~55°C |
| Storage Temperature (°C) | -10~40 |
| Cooling Method | Convection |
| Humidity (%) | 5~95% (non-condensing) |
| Maximum Operating Altitude (m) | 3000 |
| MECHANICAL CHARACTERISTICS | |
| Dimensions (W × H × D) (mm) | 710 × 640 × 185 |
| Weight (kg) | 100 |
| CERTIFICATIONS | |
| Safety | IEC62619 |
| EMC | EN IEC 61000-6-1/2/3/4 |
| Transport | UN38.3 |
| Protection Rating | IP65 |
Current values depend on temperature, voltage, and SOC.
