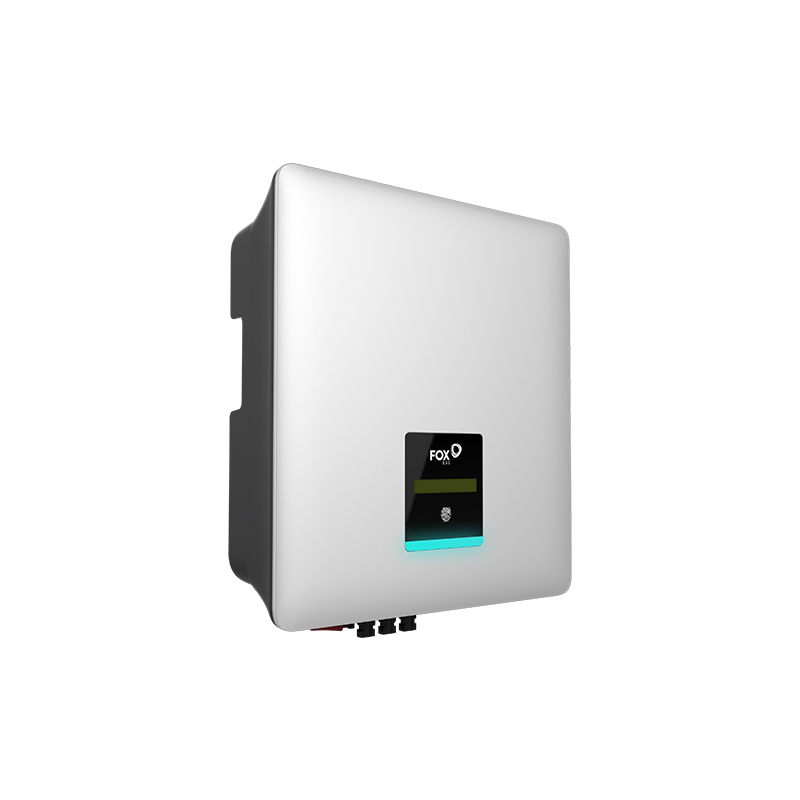

Inverter – FoxESS – T10-G3-GD470
SKU: T10-G3-GD470
Product details
T(G3)
T(G3) is a series of three-phase inverters designed for residential and small commercial installations. It includes units with power ratings of 3–25 kW, depending on the model, with remote monitoring of system operation.
Key benefits of T(G3)
- Maximum efficiency 98.6% specified for the series.
- Low startup voltage and wide voltage range work.
- Maximum DC voltage 1100 V and a nominal DC operating voltage of 600 V.
- IP65 protection rating and the option of outdoor installation.
- Real-time monitoring via a smartphone app or web portal.
- Expandable with a FoxESS energy storage system — requires an additional FoxESS device.
Who is this a good choice for?
The T(G3) series is designed for households with three-phase electrical systems and businesses using small commercial installations. The power range allows the unit to be matched to the installation, while remote monitoring enables its performance to be tracked. The option to add FoxESS energy storage is relevant to users planning to expand their system later, taking into account the additional device required.
Datasheet
Datasheet-TG3-EN-3.pdf
| Parameter | Value |
|---|---|
| Model | FoxESS T10-G3 |
| Maximum recommended DC power | 15000 W |
| Maximum DC voltage | 1100 V |
| Nominal DC operating voltage | 600 V |
| Maximum input current A/B | 14/14 A |
| Maximum short-circuit current A/B | 18.2/18.2 A |
| MPPT voltage range | 140–1000 V |
| MPPT range at full load | 380–850 V |
| Start-up voltage | 140 V |
| Number of MPPT points | 2 |
| Number of inputs per MPPT | 1+1 |
| Rated AC output power | 10000 W |
| Maximum AC apparent power | 11000 VA |
| Nominal grid voltage | 3/N/PE, 220/380 V, 230/400 V, 240/415 V |
| Rated grid frequency | 50/60 Hz, ±5 Hz |
| Rated AC current | 14.5 A |
| Maximum AC current | 15.9 A |
| Power factor | 1; adjustable from 0.8 leading to 0.8 lagging |
| THD | <3% |
| MPPT efficiency | 99,8% |
| European efficiency | 97,8% |
| Maximum efficiency | 98,6% |
| Surge protection | Type II DC / Type II AC |
| Anti-islanding protection | Yes |
| DC reverse polarity protection | Yes |
| Insulation resistance monitoring | Yes |
| AC short-circuit protection | Yes |
| AC overcurrent protection | Yes |
| Thermal protection | Yes |
| Built-in DC disconnect switch | Yes |
| AFCI protection | Yes |
| Dimensions according to the manufacturer's datasheet | 480 × 370 × 183.5 mm |
| Weight | 17 kg |
| Cooling | Natural convection |
| Degree of protection | IP65 |
| Topology | Transformerless |
| Noise level | <30 dB |
| Operating temperature | −25 to +60°C; power derating at +45°C |
| Storage temperature | −40 to +70°C |
| Maximum working height | 3000 m |
| Humidity | 0–100%, non-condensing |
| Night-time self-consumption | <3 W |
| Display | LCD, touch button, app, website |
