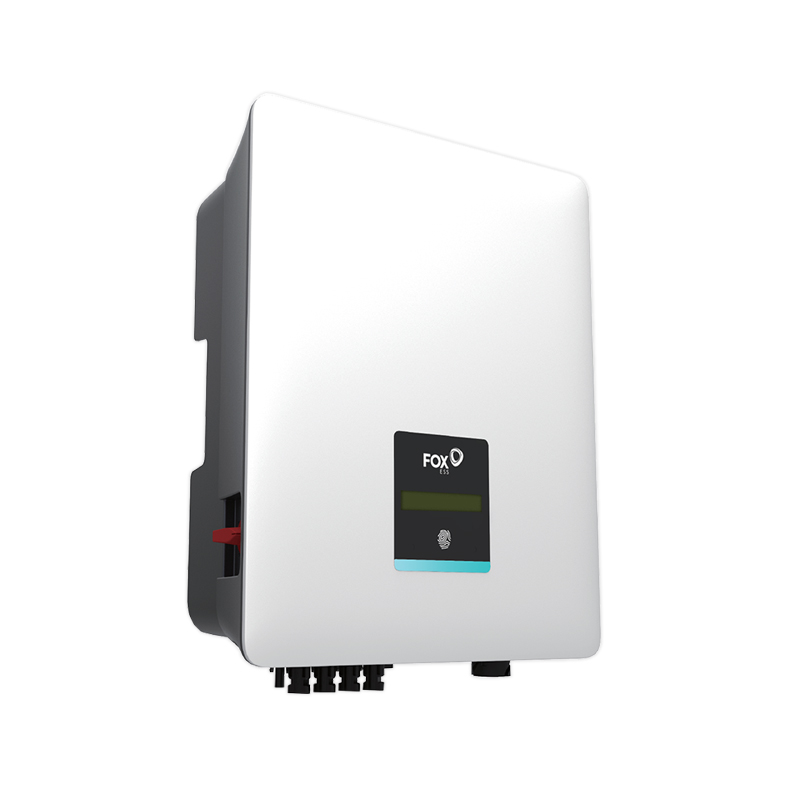

Inverter – FoxESS – T20-G3-GD470
SKU: T20-G3-GD470
Product details
T(G3)
T(G3) is a series of three-phase inverters designed for residential and small commercial installations, covering power ratings of 3–25 kW. Low startup voltage, a wide voltage range, and a maximum efficiency of 98.6% are its key features. A remote monitoring platform enables real-time tracking of system performance.
Key benefits of T(G3)
- Power range 3–25 kW depending on the model, for three-phase installations.
- Maximum efficiency 98.6% and low start-up voltage and a wide voltage range.
- IP65 protection rating and the option of outdoor installation.
- Remote real-time monitoring via a smartphone app or web portal.
- Expandable with FoxESS storage systems — requires an additional FoxESS device.
Who is this a good choice for?
The T(G3) series is designed for households with three-phase systems and businesses using small commercial installations. The 3–25 kW power range allows users to select a model suited to their installation, while remote monitoring makes it easier for owners to track its performance. The option to add FoxESS energy storage, using an additional FoxESS device, meets the needs of users planning to expand their system.
Datasheet
Datasheet-TG3-EN-4.pdf
| Parameter | Value |
|---|---|
| Model | FoxESS T20-G3 |
| Maximum recommended DC power | 30000 W |
| Maximum DC voltage | 1100 V |
| Nominal DC operating voltage | 600 V |
| Maximum input current A/B | 28/28 A |
| Maximum short-circuit current A/B | 36.4/36.4 A |
| MPPT voltage range | 140–1000 V |
| MPPT range at full load | 370–850 V |
| Start-up voltage | 140 V |
| Number of MPPT points | 2 |
| Number of inputs per MPPT | 2+2 |
| Rated AC output power | 20000 W |
| Maximum AC apparent power | 22000 VA |
| Nominal grid voltage | 3/N/PE, 220/380 V, 230/400 V, 240/415 V |
| Rated grid frequency | 50/60 Hz, ±5 Hz |
| Rated AC current | 29.0 A |
| Maximum AC current | 31.9 A |
| Power factor | 1; adjustable from 0.8 leading to 0.8 lagging |
| THD | <3% |
| MPPT efficiency | 99,8% |
| European efficiency | 97,8% |
| Maximum efficiency | 98,6% |
| Surge protection | Type II DC / Type II AC |
| Anti-islanding protection | Yes |
| DC reverse polarity protection | Yes |
| Insulation resistance monitoring | Yes |
| AC short-circuit protection | Yes |
| AC overcurrent protection | Yes |
| Thermal protection | Yes |
| Built-in DC disconnect switch | Yes |
| AFCI protection | Yes |
| Dimensions according to the manufacturer's datasheet | 480 × 370 × 183.5 mm |
| Weight | 20 kg |
| Cooling | Forced convection (fans) |
| Degree of protection | IP65 |
| Topology | Transformerless |
| Noise level | <55 dB |
| Operating temperature | −25 to +60°C; power derating at +45°C |
| Storage temperature | −40 to +70°C |
| Maximum working height | 3000 m |
| Humidity | 0–100%, non-condensing |
| Night-time self-consumption | <3 W |
| Display | LCD, touch button, app, website |
