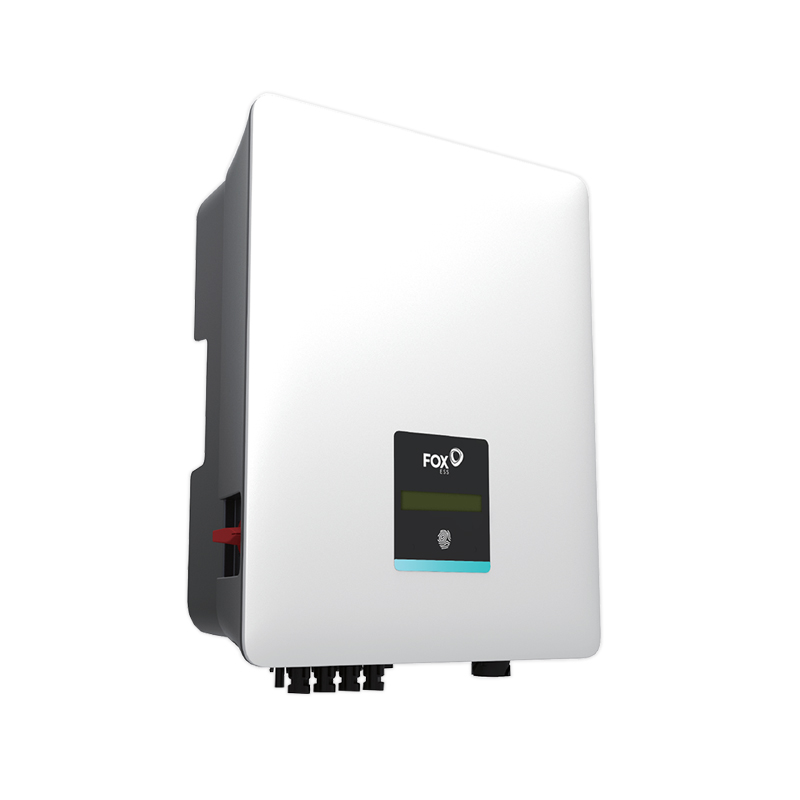

Inverter – FoxESS – T4-G3-GD470
Product details
T(G3)
T(G3) is a series of three-phase inverters designed for residential and small commercial installations, covering power ratings from 3 to 25 kW. Low startup voltage, a wide voltage range and a maximum efficiency of 98.6% are the key features of the series. A remote monitoring platform enables real-time tracking of system performance.
Key benefits of T(G3)
- Power range 3–25 kW — depending on the model, for three-phase installations.
- Maximum efficiency 98.6% and low start-up voltage and a wide voltage range.
- Protection rating IP65 — suitable for outdoor installation.
- Remote real-time monitoring — access to system performance data via a smartphone app or web portal.
- Expandable with FoxESS energy storage — requires an additional FoxESS device.
Who is this a good choice for?
T(G3) is an option for homeowners with three-phase systems and businesses using small commercial installations. The power range allows a model to be matched to the installation, while monitoring via an app or web portal provides ongoing insight into its performance. The option to expand with a FoxESS storage system meets the needs of users planning to add energy storage, provided that an additional FoxESS device is used.
| Parameter | Value |
|---|---|
| Model | FoxESS T4-G3 |
| Maximum recommended DC power | 6000 W |
| Maximum DC voltage | 1100 V |
| Nominal DC operating voltage | 600 V |
| Maximum input current A/B | 14/14 A |
| Maximum short-circuit current A/B | 18.2/18.2 A |
| MPPT voltage range | 140–1000 V |
| MPPT range at full load | 155–850 V |
| Start-up voltage | 140 V |
| Number of MPPT points | 2 |
| Number of inputs per MPPT | 1+1 |
| Rated AC output power | 4000 W |
| Maximum AC apparent power | 4400 VA |
| Nominal grid voltage | 3/N/PE, 220/380 V, 230/400 V, 240/415 V |
| Rated grid frequency | 50/60 Hz, ±5 Hz |
| Rated AC current | 5.8 A |
| Maximum AC current | 6.4 A |
| Power factor | 1; adjustable from 0.8 leading to 0.8 lagging |
| THD | <3% |
| MPPT efficiency | 99,8% |
| European efficiency | 97,8% |
| Maximum efficiency | 98,6% |
| Surge protection | Type II DC / Type II AC |
| Anti-islanding protection | Yes |
| DC reverse polarity protection | Yes |
| Insulation resistance monitoring | Yes |
| AC short-circuit protection | Yes |
| AC overcurrent protection | Yes |
| Thermal protection | Yes |
| Built-in DC disconnect switch | Yes |
| AFCI protection | Yes |
| Dimensions according to the manufacturer's datasheet | 480 × 370 × 183.5 mm |
| Weight | 17 kg |
| Cooling | Natural convection |
| Degree of protection | IP65 |
| Topology | Transformerless |
| Noise level | <30 dB |
| Operating temperature | −25 to +60°C; power derating at +45°C |
| Storage temperature | −40 to +70°C |
| Maximum working height | 3000 m |
| Humidity | 0–100%, non-condensing |
| Night-time self-consumption | <3 W |
| Display | LCD, touch button, app, website |
