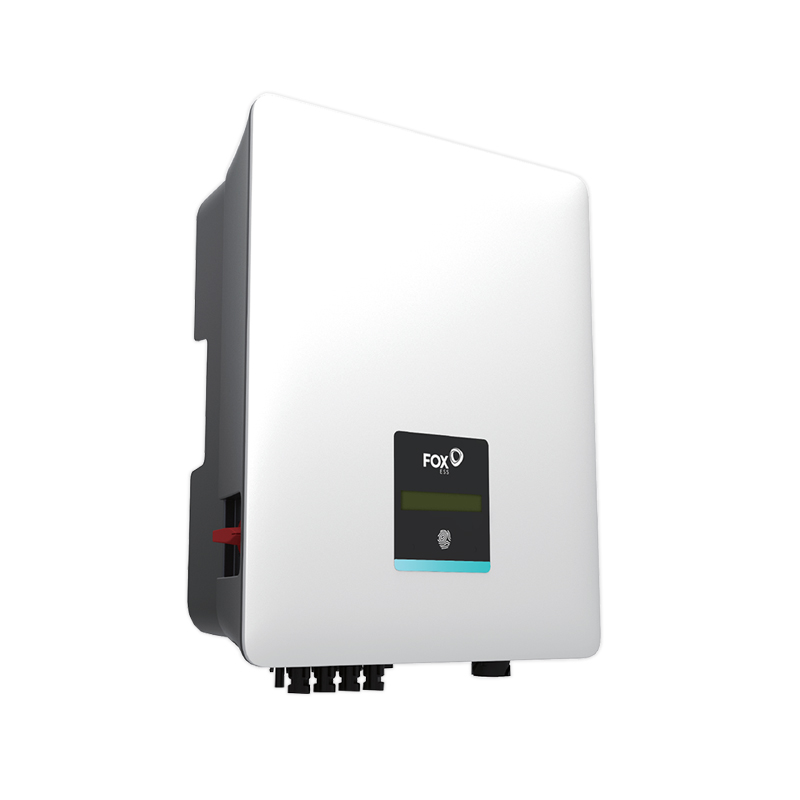

Inverter – FoxESS – T8-G3-GD470
SKU: T8-G3-GD470
Product details
T(G3)
T(G3) is a series of three-phase inverters designed for residential and small commercial installations. A low start-up voltage and a wide voltage range support longer power generation periods.
Key benefits of T(G3)
- Power 3–25 kW depending on the model, allows you to select an inverter for the installation.
- Maximum efficiency 98.6% ensures high energy conversion efficiency.
- Maximum DC input voltage 1100 V and a maximum recommended DC power of 4500–37500 W, depending on the model.
- IP65 protection rating and the option of outdoor installation.
- Remote real-time monitoring via a smartphone app or web portal.
- Expandable with FoxESS energy storage — requires an additional FoxESS device.
Who is this a good choice for?
The T(G3) series is designed for households with three-phase installations and businesses using small commercial installations. The power range allows the inverter to be matched to the installation, while remote monitoring makes it easier to track its ongoing performance. The option to add FoxESS energy storage meets the needs of users planning to expand their system.
Datasheet
Datasheet-TG3-EN-6.pdf
| Parameter | Value |
|---|---|
| Model | FoxESS T8-G3 |
| Maximum recommended DC power | 12000 W |
| Maximum DC voltage | 1100 V |
| Nominal DC operating voltage | 600 V |
| Maximum input current A/B | 14/14 A |
| Maximum short-circuit current A/B | 18.2/18.2 A |
| MPPT voltage range | 140–1000 V |
| MPPT range at full load | 300–850 V |
| Start-up voltage | 140 V |
| Number of MPPT points | 2 |
| Number of inputs per MPPT | 1+1 |
| Rated AC output power | 8000 W |
| Maximum AC apparent power | 8800 VA |
| Nominal grid voltage | 3/N/PE, 220/380 V, 230/400 V, 240/415 V |
| Rated grid frequency | 50/60 Hz, ±5 Hz |
| Rated AC current | 11.6 A |
| Maximum AC current | 12.8 A |
| Power factor | 1; adjustable from 0.8 leading to 0.8 lagging |
| THD | <3% |
| MPPT efficiency | 99,8% |
| European efficiency | 97,8% |
| Maximum efficiency | 98,6% |
| Surge protection | Type II DC / Type II AC |
| Anti-islanding protection | Yes |
| DC reverse polarity protection | Yes |
| Insulation resistance monitoring | Yes |
| AC short-circuit protection | Yes |
| AC overcurrent protection | Yes |
| Thermal protection | Yes |
| Built-in DC disconnect switch | Yes |
| AFCI protection | Yes |
| Dimensions according to the manufacturer's datasheet | 480 × 370 × 183.5 mm |
| Weight | 17 kg |
| Cooling | Natural convection |
| Degree of protection | IP65 |
| Topology | Transformerless |
| Noise level | <30 dB |
| Operating temperature | −25 to +60°C; power derating at +45°C |
| Storage temperature | −40 to +70°C |
| Maximum working height | 3000 m |
| Humidity | 0–100%, non-condensing |
| Night-time self-consumption | <3 W |
| Display | LCD, touch button, app, website |
