Inverter – GOODWE – GW150K-GT-G10
Incl. VAT
Falownik GoodWe GW150K-GT-G10, on-grid, 3-fazowy, 10 mppt, AFCI, SPD DC TYPE II + AC TYPE II, LAN, WIFI, Bluetooth, RS485
Product details

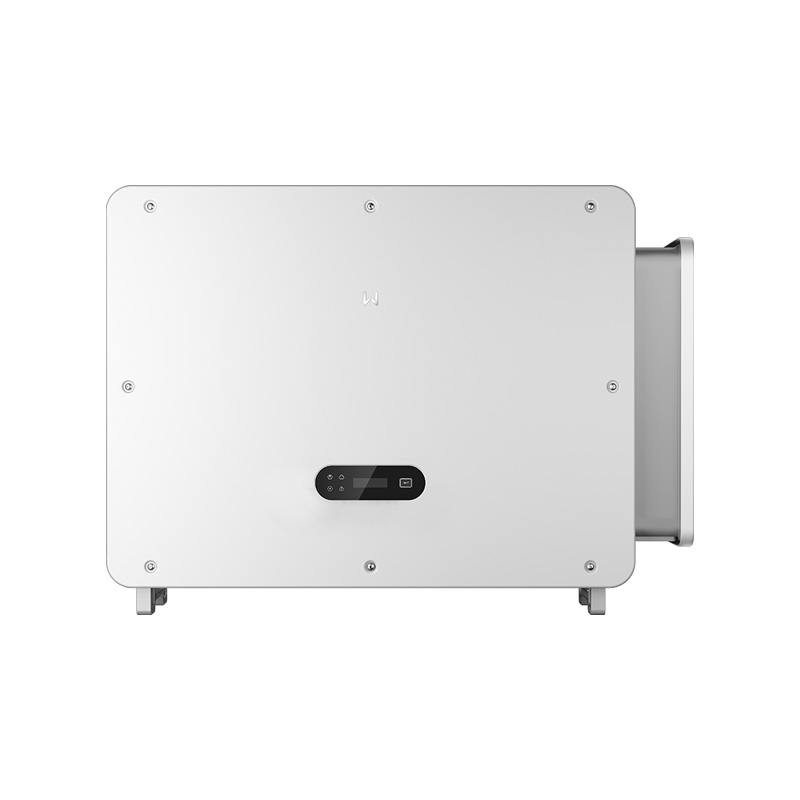

GW150K-GT-G10
The GW150K-GT-G10 is a GoodWe three-phase string inverter with a rated output power of 150 kW, designed for large-scale commercial and industrial installations. It features 10 MPPTs and has a maximum efficiency of 99.0%. Integrated monitoring and protection functions support safe operation and system maintenance.
Key advantages of GW150K-GT-G10
- Rated power 150 kW and a maximum AC active power of 165 kW.
- 10 MPPT systems with the option to connect 2 strings to each of them; input current up to 21 A per string and 42 A per MPPT.
- Maximum efficiency 99.0% and European efficiency of 98.5%.
- Integrated protection: protection against islanding, reverse PV polarity, and AC overcurrents and short circuits; type II surge arresters on the DC and AC sides. AFCI arc fault protection is optional.
- Enclosure with IP66 protection rating, operating temperature range from -30 to +60°C and intelligent fan cooling.
- PV string current monitoring and remote shutdown are integrated; operation is supported by an app and RS485, WiFi, LAN, Bluetooth and 4G connectivity.
Who is this a good choice for?
GW150K-GT-G10 is designed for companies using large-scale photovoltaic installations in commercial facilities and industrial enterprises. A rated power of 150 kW, 10 MPPT trackers and a maximum efficiency of 99.0% meet the needs of these installations, while PV string monitoring and remote shutdown support their ongoing operation.
| Parameter | Value |
|---|---|
| General information | |
| Model | GW150K-GT-G10 |
| Topology | Without galvanic isolation |
| DC input data | |
| Maximum input voltage (V) | 1100 |
| MPPT operating voltage range (V) | 180 ~ 1000 |
| Start-up voltage (V) | 200 |
| Rated input voltage (V) | 600 |
| Maximum input current per MPPT (A) | 42 |
| Maximum short-circuit current per MPPT (A) | 52,5 |
| Number of MPPT trackers | 10 |
| Number of strings per MPPT | 2 |
| AC output data | |
| Rated output power (kW) | 150 |
| Rated apparent output power (kVA) | 150 |
| Maximum AC active power (kW) | 165 |
| Maximum AC apparent power (kVA) | 165 |
| Rated output voltage (V) | 220 / 380, 230 / 400, 240 / 415 |
| AC connection layout | 3L / N / PE or 3L / PE |
| Output voltage range (V) | 323 ~ 498 |
| Rated AC grid frequency (Hz) | 50 / 60 |
| AC grid frequency range (Hz) | 45 ~ 55 / 55 ~ 65 |
| Maximum output current at 380 V AC (A) | 250,7 |
| Maximum output current at 400 V AC (A) | 238,2 |
| Maximum output current at 415 V AC (A) | 229,6 |
| Power factor | 0.8 capacitive ~ 0.8 inductive |
| Maximum total harmonic distortion (%) | <3 |
| Efficiency | |
| Maximum efficiency (%) | 99,0 |
| European efficiency (%) | 98,5 |
| CEC efficiency (%) | 98,5 |
| Protection and functions | |
| PV string current monitoring | Integrated |
| PV insulation resistance detection | Integrated |
| Residual current monitoring | Integrated |
| PV reverse polarity protection | Integrated |
| Anti-islanding protection | Integrated |
| AC overcurrent protection | Integrated |
| AC short-circuit protection | Integrated |
| AC overvoltage protection | Integrated |
| DC disconnector | Integrated |
| DC surge protection | Type II (optionally type I + II) |
| AC surge protection | Type II |
| AFCI arc fault protection | Optional |
| Remote shutdown | Integrated |
| PID recovery | Optional |
| Reactive power compensation at night | Optional |
| Power supply at night | Optional |
| Operating conditions | |
| Operating temperature range (°C) | -30 ~ +60 |
| Relative humidity (%) | 0 ~ 100 |
| Maximum working height (m) | 4000 |
| Cooling method | Intelligent fan cooling |
| Degree of protection | IP66 |
| Nighttime self-consumption (W) | <2 |
| Interfaces and communication | |
| User interface | LED, LCD (optional), app |
| Communication | RS485, WiFi + LAN + Bluetooth, 4G + Bluetooth |
| Communication protocols | Modbus-RTU (SunSpec-compliant), Modbus-TCP |
| DC connector | MC4 (4 ~ 6 mm²) |
| AC connector | OT / DT terminal (max. 400 mm²) |
| Dimensions and weight | |
| Weight (kg) | ≤99 |
| Dimensions (W × H × D) (mm) | 995 × 758 × 358 |
At an input voltage of 1000–1100 V, the inverter enters standby mode; it resumes normal operation when the voltage returns to the MPPT operating range. The MPPT voltage range at rated power is specified in the user manual.
