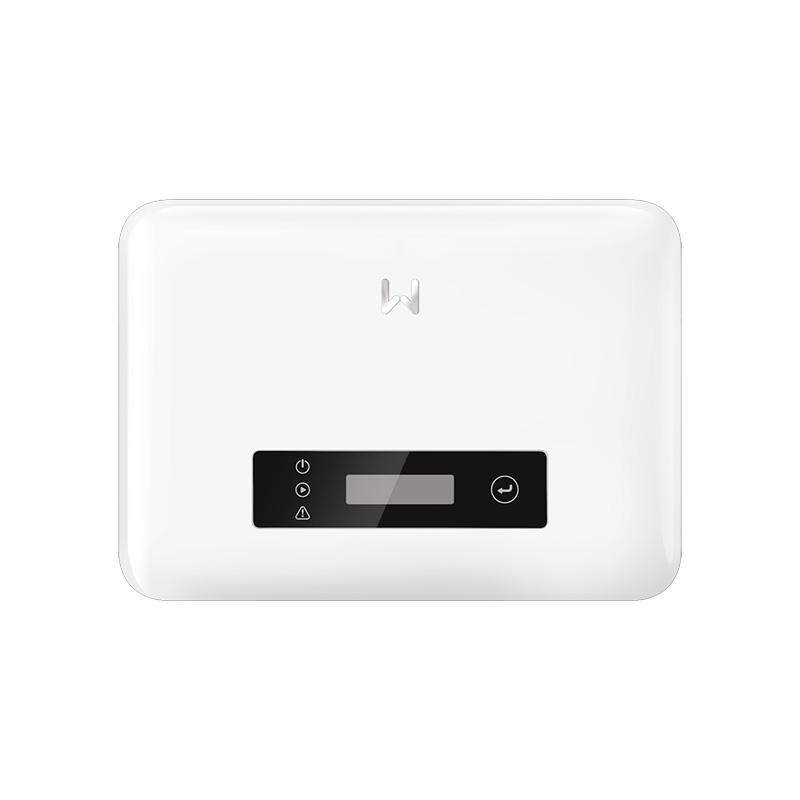

Inverter – GOODWE – GW2000-XS-30_AFCI – single-phase

XS G3

XS G3 by GoodWe is a series of single-phase photovoltaic inverters for residential applications, with one MPPT and a rated power of 0.7–3.3 kW depending on the model. Maximum efficiency is 97.0–97.6%, and permitted DC input oversizing reaches 200%. A weight of 4.6 kg and a compact enclosure make installation easier, while the fanless design ensures a noise level below 20 dB.

Key benefits of XS G3

• Photovoltaic input parameters: one MPPT tracker, a maximum input current of 16 A and the option to oversize the DC input by up to 200%.
• Maximum efficiency 97.0–97.6% depending on the model, at a rated power of 0.7–3.3 kW.
• Compact design: weight 4.6 kg and dimensions 306 × 218 × 119 mm.
• Quiet operation: cooling by natural convection, without a fan, and noise emissions below 20 dB.
• Monitoring and control: round-the-clock energy consumption monitoring, limiting power fed into the grid, and operation via WLAN and an app.
• IP66 protection rating and built-in type III surge protection on the DC and AC sides. Type II protection and the AFCI function are optional and require a separate purchase.

Who is this a good choice for?

XS G3 is a choice for homeowners planning a single-phase photovoltaic installation with a 0.7–3.3 kW inverter. For households interested in controlling energy consumption, it offers round-the-clock monitoring and limits on power fed into the grid, while noise-conscious users benefit from fanless operation at below 20 dB.
