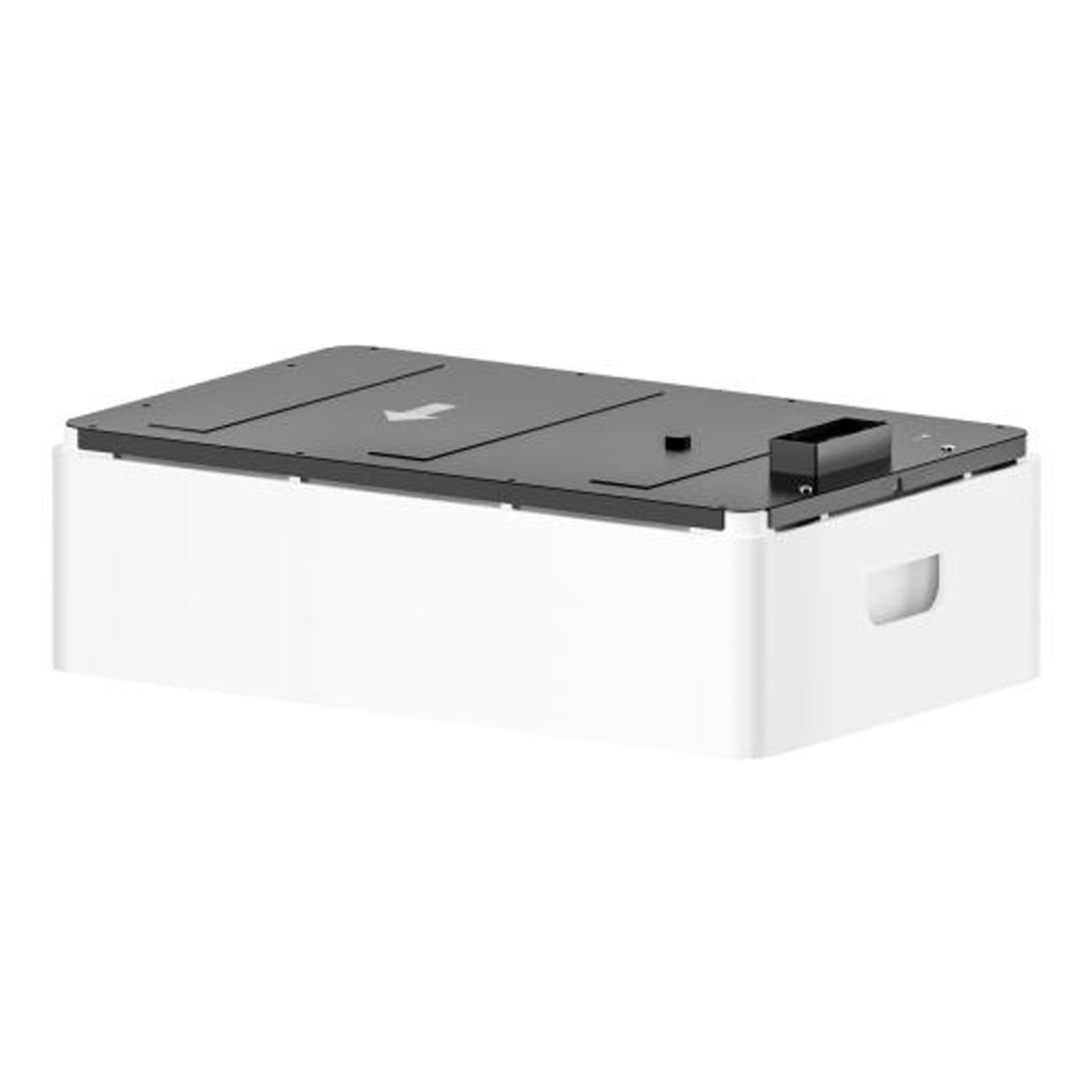

GOODWE Lynx-HV F-H PLUS+ Battery Module 3.27 kWh
SKU: F11912
EAN: 5905951589664
| Manufacturer | |
|---|---|
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| Number of charging cycles | |
| Module voltage | |
| Capacity | |
| Charging current | |
| Discharge current | |
| Cell type | |
| Required number of modules | |
| Weight | 45,66 kg |
| CN | 85076000 |
Datasheet Goodwe Lynx-HV F-H PLUS+ battery module 3,27 kWh
datasheet-goodwe-lynx-hv-f-h-plus-battery-module-327-kwh.pdf
Product details
| Manufacturer | |
|---|---|
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| Number of charging cycles | |
| Module voltage | |
| Capacity | |
| Charging current | |
| Discharge current | |
| Cell type | |
| Required number of modules | |
| Weight | 45,66 kg |
| CN | 85076000 |
Goodwe Lynx Home F PLUS+ 6.6-16.4 kWh – High-Voltage Energy Storage
The Goodwe Lynx Home F PLUS+ series is a modern and safe solution for managing energy in residential photovoltaic installations. With intelligent technology and the ability for backup power, this energy storage system not only optimizes energy consumption but also provides a high level of energy autonomy. Its modular design allows for easy installation, and the reliable lithium iron phosphate (LFP) batteries ensure safety and longevity.
Key Product Features
- Reliable LFP Batteries: Long lifespan and maximum safety thanks to lithium iron phosphate technology.
- Scalability: Supports up to 8 parallel towers, allowing for a capacity of up to 131 kWh.
- Remote Diagnostics and Updates: Ability to manage and monitor device operation via the inverter.
- Wide Capacity Range: From 6.6 kWh to 16.4 kWh, perfect for various energy needs.
- Compatibility: Works with GoodWe inverters BH/EH/BT/ET, meeting VDE 2510-50 battery safety standards.
Who is this a good choice for?
The Goodwe Lynx Home F PLUS+ is an excellent choice for homeowners looking for a reliable and scalable energy management solution. With the ability to easily increase capacity and compatibility with advanced photovoltaic systems, this series is suitable for both smaller and larger installations, ensuring maximum autonomy and energy security.
Datasheet Goodwe Lynx-HV F-H PLUS+ battery module 3,27 kWh
datasheet-goodwe-lynx-hv-f-h-plus-battery-module-327-kwh.pdf
| Technical Specification of GOODWE Lynx Home F PLUS+ | ||||
|---|---|---|---|---|
| Parameter | LX F6.6-H | LX F9.8-H | LX F13.1-H | LX F16.4-H |
| Usable Energy (kWh) | 6.55 | 9.83 | 13.10 | 16.38 |
| Energy Storage Module | LX F3.3-H: 102.4V 3.27kWh | LX F3.3-H: 102.4V 3.27kWh | LX F3.3-H: 102.4V 3.27kWh | LX F3.3-H: 102.4V 3.27kWh |
| Number of Modules | 2 | 3 | 4 | 5 |
| Cell Type | LFP (LiFePO4) | LFP (LiFePO4) | LFP (LiFePO4) | LFP (LiFePO4) |
| Nominal Voltage (V) | 204.8 | 307.2 | 409.6 | 512.0 |
| Operating Voltage Range (V) | 182.4 ~ 230.4 | 273.6 ~ 345.6 | 364.8 ~ 460.8 | 456.0 ~ 576.0 |
| Nominal Discharge/Charge Current (A) | 25 | 25 | 25 | 25 |
| Nominal Power (kW) | 5.12 | 7.68 | 10.24 | 12.80 |
| Operating Temperature Range (°C) | Charging: 0 ~ +50; Discharging: -20 ~ +50 | Charging: 0 ~ +50; Discharging: -20 ~ +50 | Charging: 0 ~ +50; Discharging: -20 ~ +50 | Charging: 0 ~ +50; Discharging: -20 ~ +50 |
| Relative Humidity (%) | 0 ~ 95% | 0 ~ 95% | 0 ~ 95% | 0 ~ 95% |
| Maximum Operating Altitude (m) | 2000 | 2000 | 2000 | 2000 |
| Cooling | Natural convection | Natural convection | Natural convection | Natural convection |
| Display | LED indicators; Integrated WLAN + FusionSolar App | LED indicators; Integrated WLAN + FusionSolar App | LED indicators; Integrated WLAN + FusionSolar App | LED indicators; Integrated WLAN + FusionSolar App |
| Communication | RS485; WLAN/Ethernet via Smart Dongle-WLAN-FE (optional) 4G / 3G / 2G via Smart Dongle-4G (optional) | RS485; WLAN/Ethernet via Smart Dongle-WLAN-FE (optional) 4G / 3G / 2G via Smart Dongle-4G (optional) | RS485; WLAN/Ethernet via Smart Dongle-WLAN-FE (optional) 4G / 3G / 2G via Smart Dongle-4G (optional) | RS485; WLAN/Ethernet via Smart Dongle-WLAN-FE (optional) 4G / 3G / 2G via Smart Dongle-4G (optional) |
| Weight (kg) | 115 | 158 | 201 | 244 |
| Dimensions (w × h × d mm) | 600 × 625 × 380 | 600 × 780 × 380 | 600 × 935 × 380 | 600 × 1090 × 380 |
| IP Protection Class | IP55 | IP55 | IP55 | IP55 |
| Mounting Method | Floor-mounted | Floor-mounted | Floor-mounted | Floor-mounted |
| Safety Standards | IEC62619, IEC62040, VDE2510-50, CEC, CE | IEC62619, IEC62040, VDE2510-50, CEC, CE | IEC62619, IEC62040, VDE2510-50, CEC, CE | IEC62619, IEC62040, VDE2510-50, CEC, CE |
| EMC | CE, RCM | CE, RCM | CE, RCM | CE, RCM |
| Transport | UN38.3 | UN38.3 | UN38.3 | UN38.3 |
