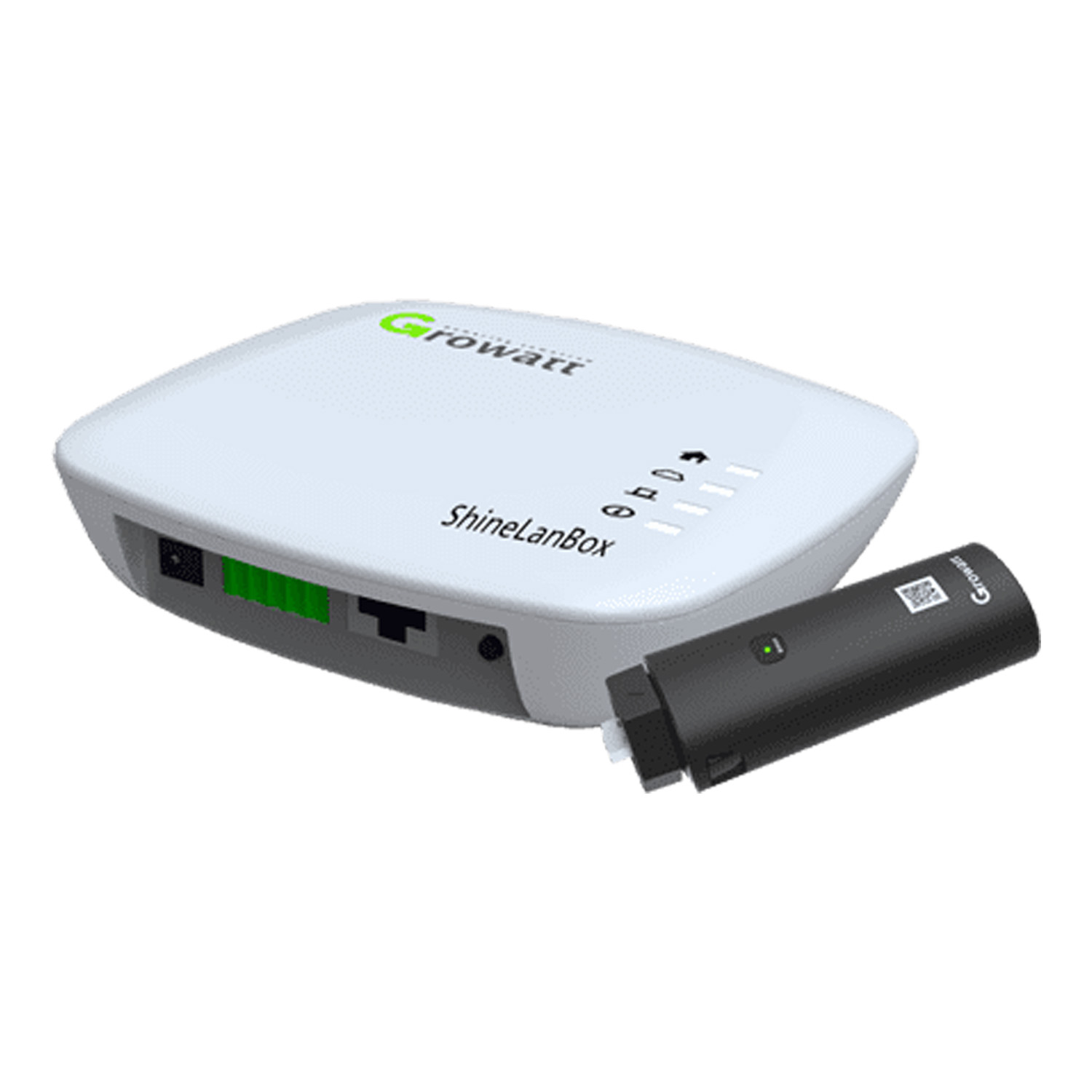

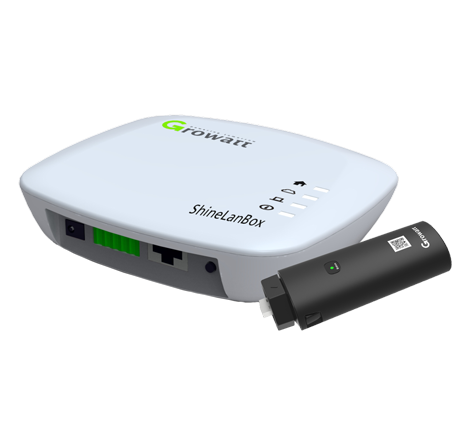

Growatt ShineLink-X monitoring system
The Growatt ShineLink-X is an advanced wireless monitoring system designed for Growatt inverters. It provides stable radio communication, eliminating the need for signal cabling. With simple plug-and-play installation and automatic configuration, setting up remote monitoring for a photovoltaic installation is quick and easy.
Key features of the Growatt ShineLink-X:
- Stable wireless communication: Uses RF433 radio technology, offering a range of up to 120 meters in open space to ensure a reliable connection.
- Monitoring multiple devices: A single ShineLink-X set can monitor up to 8 inverters simultaneously, making it ideal for larger installations.
- Easy installation and operation: The device is plug-and-play and automatically assigns IP addresses, so configuration is hassle-free and requires no specialist knowledge.
- Data logging and remote access: Built-in memory stores system data for 30 days, and free access via the Shine server and Android/iOS apps provides continuous insight into energy production.
- Remote software updates: The system supports remote updates so the device always runs the latest, most optimized software.
Who is this a good choice for?
The ShineLink-X is an excellent option for owners of photovoltaic systems using Growatt inverters who value convenience, reliability, and no extra cabling. It is particularly well suited for single-family homes and small commercial sites, especially when the inverter is installed far from the internet router. With support for multiple devices and stable wireless communication, this system addresses range issues and provides constant, convenient access to energy production data.
| Parameter | ShineLink-X |
|---|---|
| Communication interface | |
| RF433 communication | Yes |
| RF433 range (open space) (m) | Up to 120 |
| RF433 range (two walls) (m) | 20 |
| Power supply | |
| Power consumption (W) | <2 W standby, <5 W peak |
| AC adapter input voltage (V) | 196 V ~ 250 V |
| AC adapter operating frequency (Hz) | 50/60 |
| General | |
| Dimensions (W / H / D) (mm) | 105/85/26 |
| Weight (kg) | < 1 |
| Mounting | Tabletop / wall-mounted |
| Protection rating | IP30 |
| Display | LED |
| Operating temperature range (°C) | -25 ~ +60 |
| Relative humidity (%) | 0-95 |
| Features | |
| Graphical user interface | Android/iOS app |
| Remote software update | Yes |
| Maximum number of monitored devices | 8 (RF433) |
| Warranty (years) | 1 |
| Certifications | CE |
