Energy storage system – HAIER – HBHS-4.8KB1_LPP – HV
SKU: HBHS-4.8KB1_LPP
| Manufacturer | |
|---|---|
| Net depth | |
| Weight | 53,4 kg |
Product details
| Manufacturer | |
|---|---|
| Net depth | |
| Weight | 53,4 kg |

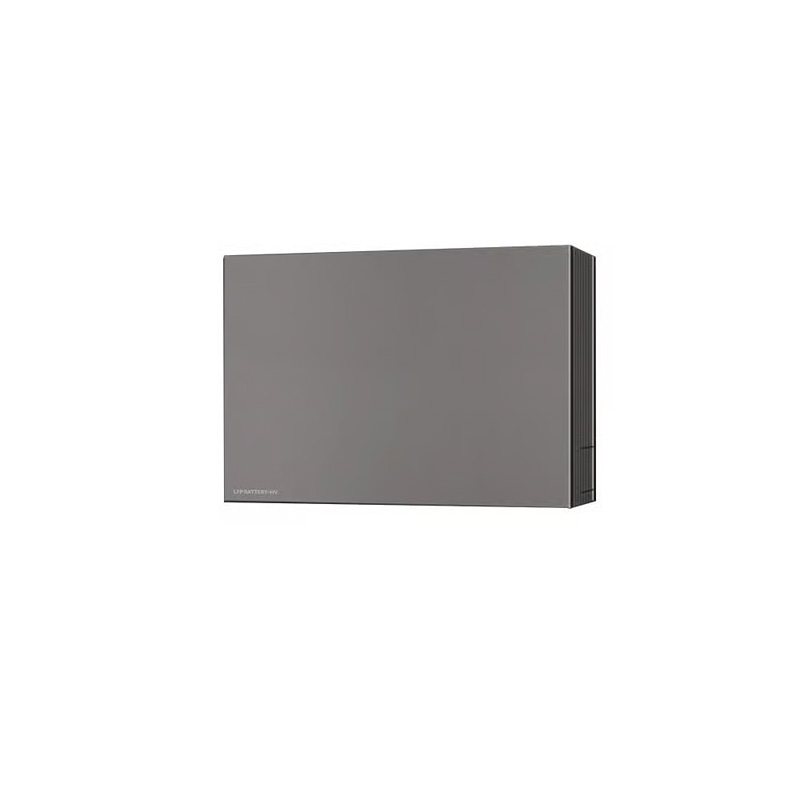

Haier HBHS-4.8KB1/LPP
High-voltage LFP battery module intended for the compatible Haier E-Tower system. The module’s nominal energy is 4.8 kWh, usable energy 4.5 kWh, and nominal voltage 96 V. The operating voltage range is 90–108 V.
The maximum charge and discharge current is 50 A, and the depth of discharge is 95%. The module communicates via CAN and has an IP65 enclosure. Dimensions in order width × height × depth are 620 × 430 × 206 mm; mass is 54 ± 2 kg.
The charging temperature range is 0 to 50°C, and the discharging range is −10 to 50°C. The number of modules and the configuration of the entire storage should be selected in accordance with the documentation of the compatible E-Tower system.
Datasheet
Datasheet-Haier-E-Tower-EN-176.pdf
| Parameter | HBHS-4.8KB1_LPP |
|---|---|
| Battery type | LFP (LiFePO4) |
| Rated energy (kWh) | 4.8 |
| Usable energy (kWh) | 4.5 |
| Rated voltage (V) | 96 |
| Operating voltage range (V) | 90–108 |
| Maximum charging current (A) | 50 |
| Maximum discharge current (A) | 50 |
| Depth of discharge (%) | 95 |
| Dimensions (W × H × D) (mm) | 620 × 430 × 206 |
| Weight (kg) | 54 ± 2 |
| Degree of protection | IP65 |
| Communication | CAN |
| Charging temperature (°C) | 0–50 |
| Discharge temperature (°C) | −10–50 |
