HELUKABEL H1Z2Z2-K Solar Cable – 1×4 mm² – Black / OUTLET

SKU: F3701O EAN: 2010000019696
Solar cable HELUKABEL H1Z2Z2-K - 1x4mm2 - black / OUTLET
Manufacturer

Weight 0,059 kg
Price 0,62 €
Gross

0,62 €
Gross

In stock:

33 lm
Login to place an order

Login to place an order

0,62 €
Gross

In stock:

33 lm
Login to place an order

Product details

Manufacturer

Weight 0,059 kg

Cables sold in the following lengths: 1 m / 2 m / 4.5 m / 6 m / 7 m / 7 m / 12 m



Full-quality cable, available only in short lengths




Cable type


SOLARFLEX®-X H1Z2Z2-K


Number of cores (part 1)


1 x


Cross-sectional area (part 1)


4 mm²


Cross-sectional area (part 1+2)


1 x 4 mm²


Cable specification


flame-retardant, halogen-free, UV-resistant


Outer diameter


5.4 mm


Color


black


Rated voltage


1500 V


Nominal voltage U0


1000 V




Test voltage


6500 V


Insulation material


copolymer


Bending radius for solid conductor


5


Products sold by the meter


no


Halogen-free


yes


Shielded


no

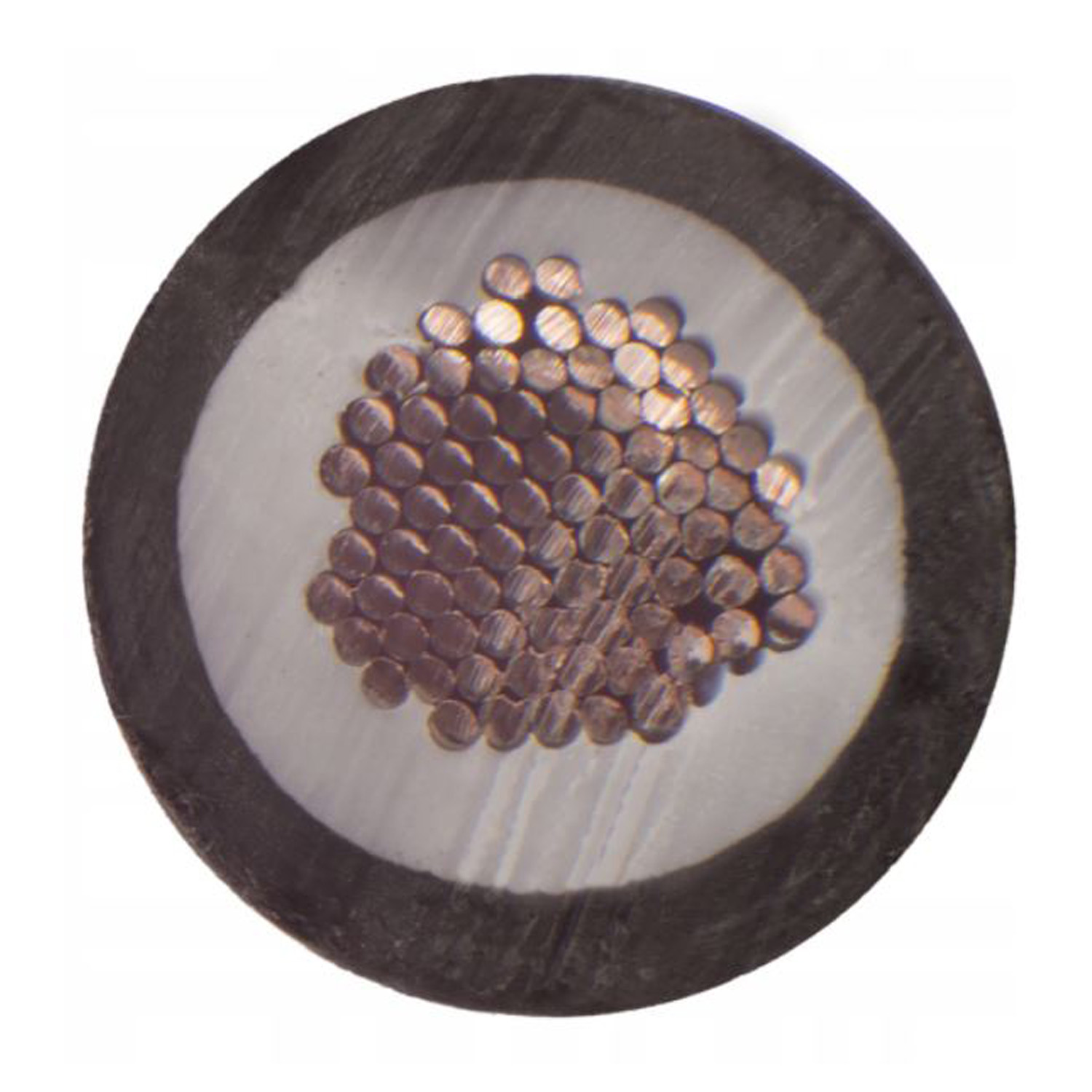

Conductor construction


Bare stranded conductor, according to DIN VDE 0295 Cl.5, made of fine wires, BS6360 cl.


Minimum temperature for fixed connections


-40 °C


Maximum temperature for fixed connections


90 °C


RoHS compliant


Yes


Certificates, standards


EN 50618 TÜV Rheinland 2 PfG 1990/05.12 TÜV R60115689
