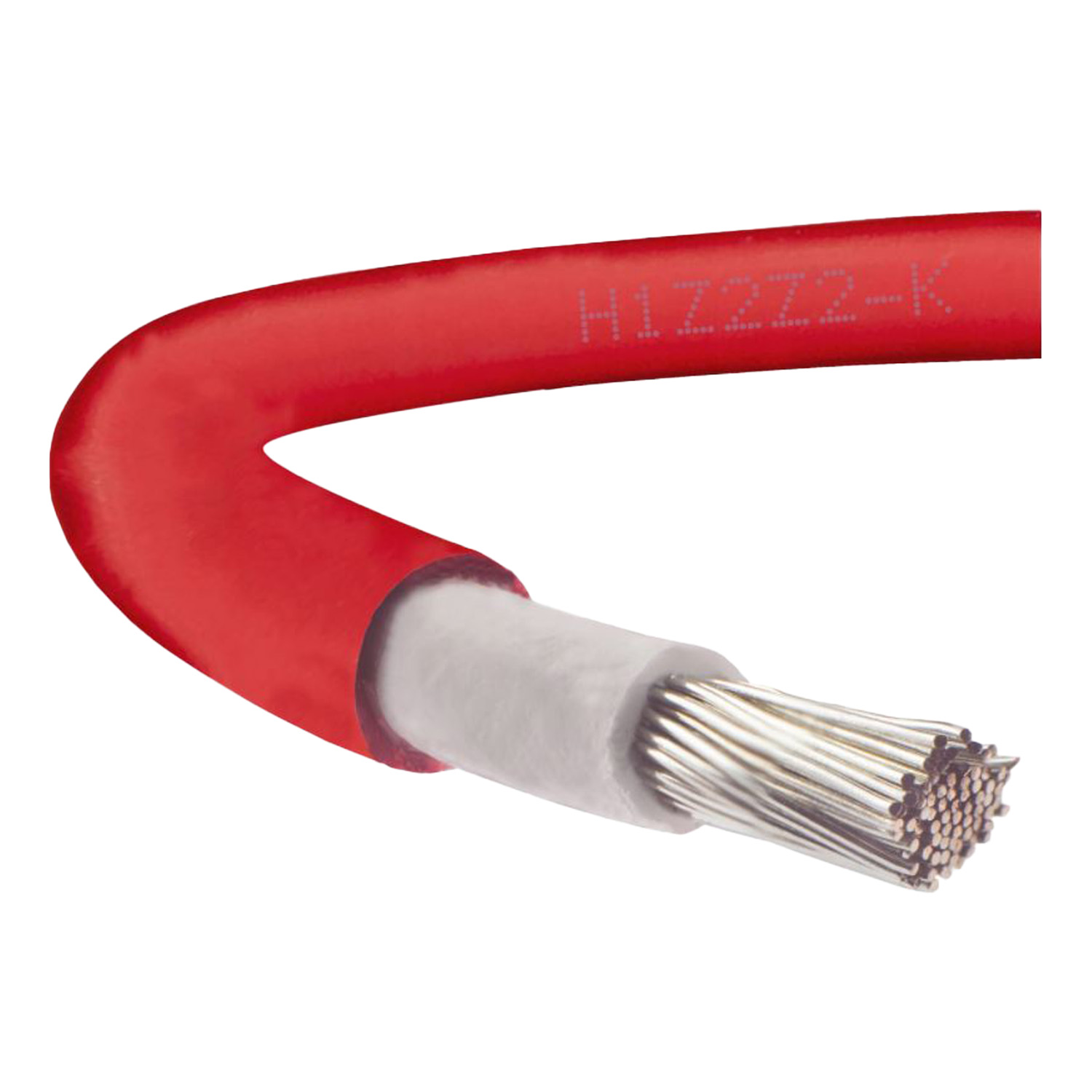

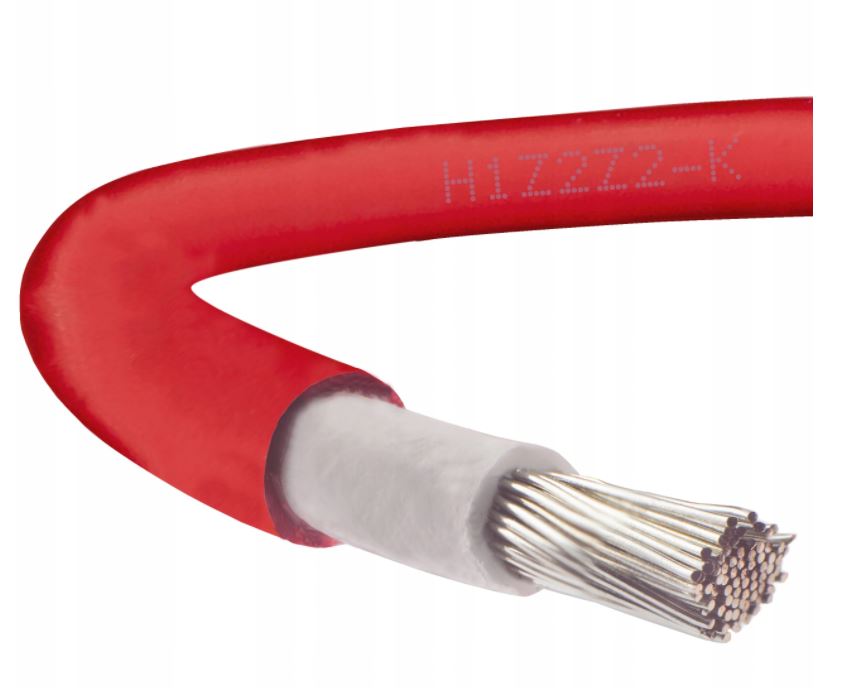

Solar cable – HELUKABEL – H1Z2Z2-K – 1x6mm2 – red – OUTLET

Cable type

SOLARFLEX®-X H1Z2Z2-K

Number of cores (part 1)

1 x

Cross-sectional area (part 1)

6 mm²

Cross-sectional area (part 1+2)

1 x 6 mm²

Cable specification

flame-retardant, halogen-free, UV-resistant

Outer diameter

6.2 mm

Color

red

Rated voltage

1500 V

Nominal voltage U0

1000 V

Test voltage

6500 V

Insulation material

copolymer

Bending radius for rigid cable

5

Packaged

no

Products sold by running meters

no

Halogen-free

yes

Shielded

no

Conductor construction

Bare braided conductor, according to DIN VDE 0295 Cl.5, made of fine wires, BS 6360 cl.

Minimum temperature range for fixed connections

-40 °C

Maximum temperature range for fixed connections

90 °C

RoHS compliant

Yes

Certificates, standards

EN 50618 TÜV Rheinland 2 PfG 1990/05.12 TÜV R60115689
