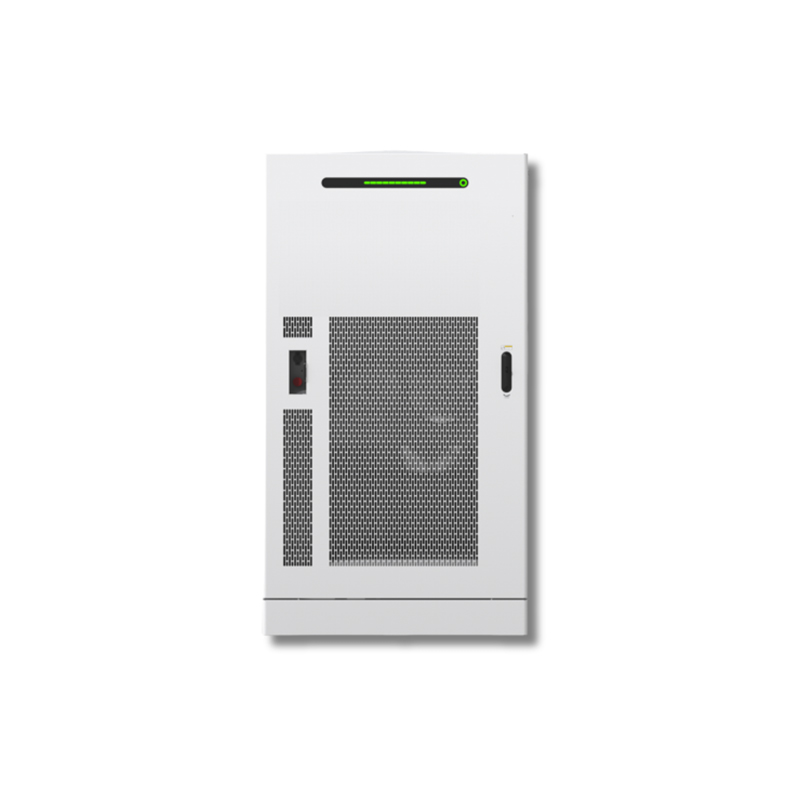

Energy storage system – HUAWEI – LUNA2000-161KWH-2S11 – HV
SKU: LUNA2000-161KWH-2S11
Product details
LUNA2000-161-2S11
LUNA2000-161-2S11 is an energy storage system with LFP cells and a three-phase converter with a rated output power of 108 kW. Hybrid cooling, active balancing and automatic state-of-charge calibration support battery operation management.
Key advantages of LUNA2000-161-2S11
- Energy storage and discharge: energy capacity of 161.3 kWh and rated AC output power of 108 kW.
- Cycle parameters: maximum cycle efficiency of 88.0% and charging and discharging depth of 0–100%.
- Battery management: LFP cells, hybrid cooling, active balancing and automatic state-of-charge calibration.
- Fire protection: oxygen barrier at the battery pack level, directional gas outlet, explosion-proof top vent and fire-extinguishing aerosol.
- Enclosure protection and operating temperature: IP55 protection rating and a temperature range from -30 to 55°C, with reduced performance above 50°C.
- Communication: Ethernet or fiber-optic connection and Modbus TCP protocol.
Who is this a good choice for?
This solution is designed for users who need energy storage with a three-phase AC output rated at 108 kW. The system meets the needs of those responsible for operating the energy storage system, for whom automatic state-of-charge calibration, active battery balancing and Modbus TCP communication are important.
Datasheet
Datasheet-LUNA2000-161kWh-2S11-EN.pdf
| Parameter | Value |
|---|---|
| Energy storage system specifications | |
| Model | LUNA2000-161-2S11 |
| Rated energy (kWh) | 161,3 |
| Maximum cycle frequency (CP) | 0,67 |
| Maximum cycle efficiency (%) | 88,0 |
| Depth of charge and discharge (%) | 0~100% |
| System temperature control mode | Hybrid cooling |
| Balancing mode | Active balancing |
| State of charge (SOC) calibration mode | Automatic |
| Dimensions and weight | |
| Dimensions (W × D × H) (mm) | 1150×1800×2100 |
| Weight (t) | ≤ 2,4 |
| Operating conditions | |
| Operating temperature range (°C) | -30 °C ~ 55 °C (>50°C performance derating) |
| Storage temperature range (°C) | -35 °C ~ 60 °C |
| Operating humidity (%) | 0 ~ 100 (non-condensing) |
| Maximum operating altitude above sea level (m) | 4,000 |
| Noise under rated operating conditions (dB(A)) | ≤65 |
| Auxiliary power supply | |
| AC supply voltage (V) | 176~300 |
| Number of power supply phases | 1 |
| Auxiliary power supply rating (kW) | ≤ 5 |
| Standby power consumption (W) | ≤150 |
| Communication | |
| Communication port | Ethernet / fiber optic |
| Communication protocol | Modbus TCP |
| Safety and protection | |
| Protection rating | IP55 |
| Electromagnetic compatibility (EMC) class | Class B |
| Lightning protection | Type II (AC port) |
| Protection | Anti-islanding protection, residual current detection, insulation resistance detection, AC overcurrent protection and AC cable connection protection |
| Fire suppression mode | Battery pack-level oxygen barrier, directional gas outlet, explosion-proof top vent, fire-extinguishing aerosol |
| Certificates | |
| Environmental compliance | RoHS6 |
| Certification standards | UL9540A; UL1973; UN38.3; IEC 62477-1; IEC 62040-1; IEC 61000-6-1/2/3/4; IEC 62619; IEC 60529; VDE-AR-E 2510-2/50; IEC 62933-5-1/2; IEC 61727; EN 50549; GB/T 34120 |
| Battery parameters (DC) | |
| Cell material | LFP |
| Rated battery capacity (Ah) | 280 |
| System battery configuration | 180S1P |
| Number of battery packs | 3 |
| Operating voltage range (V) | 486~648 |
| Rated DC current (A) | 187 |
| PCS converter parameters (AC) | |
| PCS model | PCS2000-108K-MB1 |
| Rated output power (kW) | 108 |
| Rated AC current (A) | 155,9 |
| AC voltage (V) | 380/400/415/420/440/480 |
| AC connection layout | 3P4W |
| AC frequency (Hz) | 50/60 |
| Adjustable power factor range | -1 ... +1 |
| Current harmonic distortion THDi at rated output power in grid-connected operation (%) | ≤1,5 |
Rated grid operating conditions: ambient temperature 25°C, charge/discharge rate 0.67 CP, AC output voltage 400 V.
