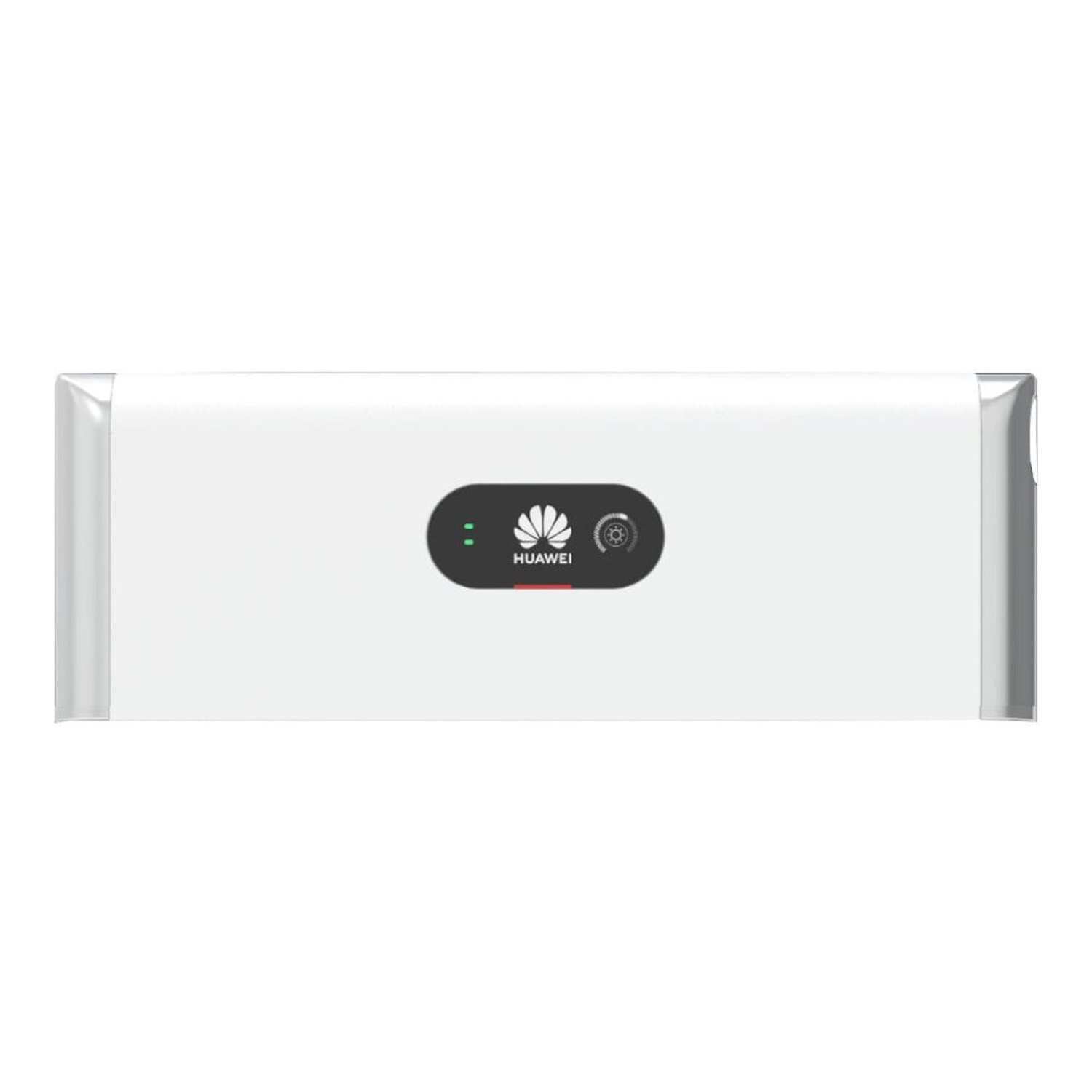

HUAWEI LUNA2000-5-C0 Control Module
SKU: F220U2
EAN: 5905951585017
| Manufacturer | |
|---|---|
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| CAN | Yes |
| RS485 | Yes |
| Weight | 16 kg |
| CN | 85371010 |
Warranty Huawei LUNA2000-5-C0 control unit
warranty-huawei-luna2000-5-c0-control-unit.pdf
Product details
| Manufacturer | |
|---|---|
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| CAN | Yes |
| RS485 | Yes |
| Weight | 16 kg |
| CN | 85371010 |
Huawei LUNA2000-5/10/15-S0 Energy Storage System
The Huawei LUNA2000 energy storage system is a modern solution designed for households and small commercial installations. With advanced lithium iron phosphate (LFP) technology, it ensures safety, reliability, and efficiency in energy storage.
Key Features:
- More Usable Energy – A depth of discharge (DoD) of 100%, allowing you to fully utilize stored energy and optimize consumption at the pack level.
- Flexible Investment – Modular design with a capacity of 5 kWh, enabling system scalability from 5 to 30 kWh, tailored to individual needs.
- Safe and Reliable – The lithium iron phosphate (LFP) battery ensures long life, high safety levels, and resistance to high temperatures.
- Easy Installation – The lightweight design of the control module (12 kg) and the energy storage module (50 kg) allows for quick and convenient setup.
- Quick Startup – The system is automatically detected in the app, simplifying configuration and speeding up the deployment process.
- Excellent Compatibility – Designed to work with both single-phase and three-phase inverters, allowing for broad application in different PV systems.
Why Choose LUNA2000?
The Huawei LUNA2000-5/10/15-S0 is an ideal choice for users seeking a reliable and scalable energy storage solution that guarantees maximum efficiency and flexibility of use. With innovative technological solutions, the Huawei energy storage system is equipped to meet both today’s and future energy needs.
Warranty Huawei LUNA2000-5-C0 control unit
warranty-huawei-luna2000-5-c0-control-unit.pdf
| LUNA2000-5-S0 | LUNA2000-10-S0 | LUNA2000-15-S0 | |
|---|---|---|---|
| Performance | |||
| Power Module | LUNA2000-5KW-C0 | LUNA2000-5KW-C0 | LUNA2000-5KW-C0 |
| Number of Control Modules | 1 | 1 | 1 |
| Energy Storage Module | LUNA2000-5-E0 | LUNA2000-5-E0 | LUNA2000-5-E0 |
| Control Module Capacity | 5 kWh | 5 kWh | 5 kWh |
| Number of Energy Storage Modules | 1 | 2 | 3 |
| Usable Capacity of Control Module | 5 kWh | 10 kWh | 15 kWh |
| Maximum Output Power | 2.5 kW | 5 kW | 5 kW |
| Peak Output Power | 3.5 kW, 10s | 7 kW, 10s | 7 kW, 10s |
| Nominal Voltage (Single-phase System) | 450 V | 450 V | 450 V |
| Operating Voltage Range (Single-phase System) | 350 ~ 560 V | 350 ~ 560 V | 350 ~ 560 V |
| Nominal Voltage (Three-phase System) | 600 V | 600 V | 600 V |
| Operating Voltage Range (Three-phase System) | 600 ~ 980 V | 600 ~ 980 V | 600 ~ 980 V |
| Communication | |||
| Display | SOC Status Indicator, LED Indicator | SOC Status Indicator, LED Indicator | SOC Status Indicator, LED Indicator |
| Communication | RS485 / CAN (for parallel operation only) | RS485 / CAN (for parallel operation only) | RS485 / CAN (for parallel operation only) |
| General Specification | |||
| Dimensions (W x D x H) | 670 x 150 x 600 mm | 670 x 150 x 960 mm | 670 x 150 x 1320 mm |
| Weight (includes floor stand) | 63.8 kg | 113.8 kg | 163.8 kg |
| Power Module Dimensions | 670 x 150 x 240 mm | 670 x 150 x 240 mm | 670 x 150 x 240 mm |
| Power Module Weight | 12 kg | 12 kg | 12 kg |
| Energy Storage Module Dimensions | 670 x 150 x 360 mm | 670 x 150 x 360 mm | 670 x 150 x 360 mm |
| Energy Storage Module Weight | 50 kg | 50 kg | 50 kg |
| Installation | Floor stand (standard), wall mounting (optional) | Floor stand (standard), wall mounting (optional) | Floor stand (standard), wall mounting (optional) |
| Operating Temperature | -10°C ~ +55°C | -10°C ~ +55°C | -10°C ~ +55°C |
| Relative Humidity | 5% ~ 95% | 5% ~ 95% | 5% ~ 95% |
| Cooling | Natural Convection | Natural Convection | Natural Convection |
| Protection Class | IP 65 | IP 65 | IP 65 |
| Noise Emission | < 29 dB | < 29 dB | < 29 dB |
| Cell Technology | LiFePO4 | LiFePO4 | LiFePO4 |
| Warranty | 10 years | 10 years | 10 years |
| Scalability | Maximum 2 systems operating in parallel | Maximum 2 systems operating in parallel | Maximum 2 systems operating in parallel |
| Compatible Inverters | SUN2000L-2/3/3.68/4/4.6/5KTL, SUN2000-2/3/3.68/4/4.6/5/6KTL-L1, SUN2000-3/4/5/6/8/10KTL-M0, SUN2000-3/4/5/6/8/10KTL-M1 | SUN2000L-2/3/3.68/4/4.6/5KTL, SUN2000-2/3/3.68/4/4.6/5/6KTL-L1, SUN2000-3/4/5/6/8/10KTL-M0, SUN2000-3/4/5/6/8/10KTL-M1 | SUN2000L-2/3/3.68/4/4.6/5KTL, SUN2000-2/3/3.68/4/4.6/5/6KTL-L1, SUN2000-3/4/5/6/8/10KTL-M0, SUN2000-3/4/5/6/8/10KTL-M1 |
| Compliance with Standards (more available upon request) | |||
| Certifications | CE, RCM, CEC, VDE2510-50, IEC62619, IEC 60730, UN38.3 | CE, RCM, CEC, VDE2510-50, IEC62619, IEC 60730, UN38.3 | CE, RCM, CEC, VDE2510-50, IEC62619, IEC 60730, UN38.3 |
| Ordering and Delivery of Parts | |||
| Product Ordering Model | LUNA2000-5KW-C0, LUNA2000-5-E0, LUNA2000 Wall Mounting Brackets | LUNA2000-5KW-C0, LUNA2000-5-E0, LUNA2000 Wall Mounting Brackets | LUNA2000-5KW-C0, LUNA2000-5-E0, LUNA2000 Wall Mounting Brackets |
