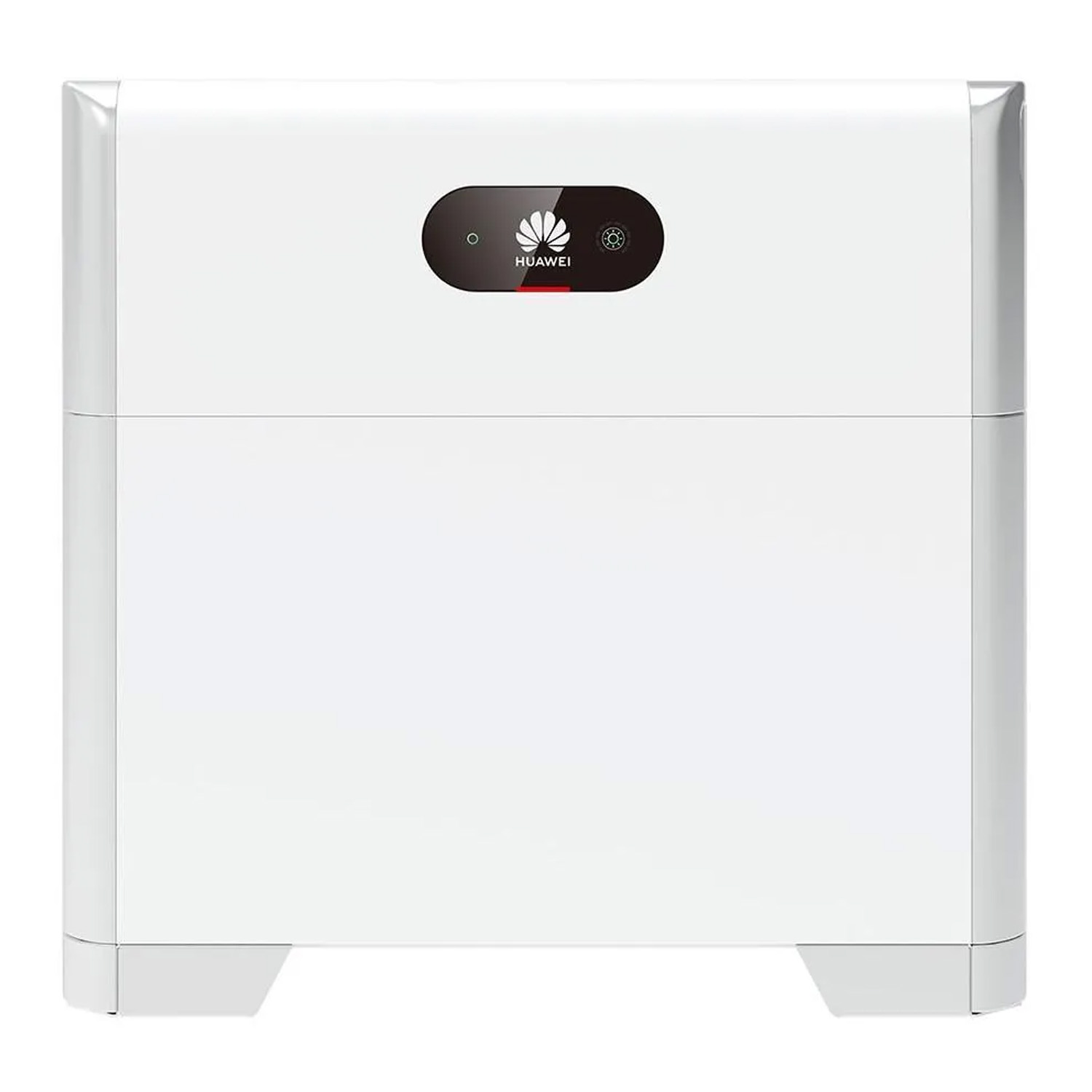

HUAWEI LUNA2000-5-E0 5kW Battery Module + HUAWEI LUNA2000-5-C0 Control Module
SKU: F220U5
EAN: 5905951587158
| Manufacturer | |
|---|---|
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| CAN | Yes |
| Capacity | |
| RS485 | Yes |
| Weight | 70,1 kg |
| CN | 85076000 |
Warranty Huawei LUNA2000-5-E0 battery extension 5kW + Huawei LUNA2000-5-C0 BMS
warranty-huawei-luna2000-5-e0-battery-extension-5kw-huawei-luna2000-5-c0-bms.pdf
Product details
| Manufacturer | |
|---|---|
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| CAN | Yes |
| Capacity | |
| RS485 | Yes |
| Weight | 70,1 kg |
| CN | 85076000 |
Huawei Energy Storage LUNA2000-5/10/15-S0
The Huawei Energy Storage LUNA2000-5/10/15-S0 is a technologically advanced energy storage system that offers exceptional flexibility, safety, and efficiency. It is designed for both residential and commercial users, providing reliable energy storage for everyday use and emergency situations.
Key Features:
- More Usable Energy – With a depth of discharge (DoD) of 100%, the storage optimizes energy consumption at the package level, providing greater efficiency and effectiveness.
- Flexible Investment – 5 kWh modules can be scaled from 5 to 30 kWh, allowing for customization of the system to meet individual needs.
- Safe and Reliable – The use of lithium iron phosphate (LFP) batteries ensures safety, durability, and reliability throughout the entire lifecycle.
- Easy Installation – The lightweight control module weighs only 12 kg, and the energy storage module weighs 50 kg, making installation quick and hassle-free.
- Quick Setup – The system is automatically detected by the app, simplifying configuration and speeding up the installation process.
- Excellent Compatibility – The energy storage system works with both single-phase and three-phase inverters, ensuring versatility and ease of integration with various PV systems.
Why Choose LUNA2000-5/10/15-S0?
The LUNA2000-5/10/15-S0 is the ideal solution for users seeking a reliable and scalable energy storage option. With modern technology and ease of installation, this system meets the requirements of both small households and larger commercial installations.
Warranty Huawei LUNA2000-5-E0 battery extension 5kW + Huawei LUNA2000-5-C0 BMS
warranty-huawei-luna2000-5-e0-battery-extension-5kw-huawei-luna2000-5-c0-bms.pdf
| LUNA2000-5-S0 | LUNA2000-10-S0 | LUNA2000-15-S0 | |
|---|---|---|---|
| Performance | |||
| Power Module | LUNA2000-5KW-C0 | LUNA2000-5KW-C0 | LUNA2000-5KW-C0 |
| Number of Control Modules | 1 | 1 | 1 |
| Energy Storage Module | LUNA2000-5-E0 | LUNA2000-5-E0 | LUNA2000-5-E0 |
| Control Module Capacity | 5 kWh | 5 kWh | 5 kWh |
| Number of Energy Storage Modules | 1 | 2 | 3 |
| Usable Capacity of Control Module | 5 kWh | 10 kWh | 15 kWh |
| Maximum Output Power | 2.5 kW | 5 kW | 5 kW |
| Peak Output Power | 3.5 kW for 10s | 7 kW for 10s | 7 kW for 10s |
| Nominal Voltage (Single-phase System) | 450 V | 450 V | 450 V |
| Operating Voltage Range (Single-phase System) | 350 ~ 560 V | 350 ~ 560 V | 350 ~ 560 V |
| Nominal Voltage (Three-phase System) | 600 V | 600 V | 600 V |
| Operating Voltage Range (Three-phase System) | 600 ~ 980 V | 600 ~ 980 V | 600 ~ 980 V |
| Communication | |||
| Display | SOC Status Indicator, LED Indicator | SOC Status Indicator, LED Indicator | SOC Status Indicator, LED Indicator |
| Communication | RS485 / CAN (for parallel operation only) | RS485 / CAN (for parallel operation only) | RS485 / CAN (for parallel operation only) |
| General Specification | |||
| Dimensions (W x D x H) | 670 x 150 x 600 mm | 670 x 150 x 960 mm | 670 x 150 x 1320 mm |
| Weight (includes floor stand) | 63.8 kg | 113.8 kg | 163.8 kg |
| Power Module Dimensions | 670 x 150 x 240 mm | 670 x 150 x 240 mm | 670 x 150 x 240 mm |
| Power Module Weight | 12 kg | 12 kg | 12 kg |
| Energy Storage Module Dimensions | 670 x 150 x 360 mm | 670 x 150 x 360 mm | 670 x 150 x 360 mm |
| Energy Storage Module Weight | 50 kg | 50 kg | 50 kg |
| Installation | Floor stand (standard), wall mounting (optional) | Floor stand (standard), wall mounting (optional) | Floor stand (standard), wall mounting (optional) |
| Operating Temperature | -10°C ~ +55°C | -10°C ~ +55°C | -10°C ~ +55°C |
| Relative Humidity | 5% ~ 95% | 5% ~ 95% | 5% ~ 95% |
| Cooling | Natural Convection | Natural Convection | Natural Convection |
| Protection Class | IP 65 | IP 65 | IP 65 |
| Noise Emission | < 29 dB | < 29 dB | < 29 dB |
| Cell Technology | LiFePO4 | LiFePO4 | LiFePO4 |
| Scalability | Up to 2 systems operating in parallel | Up to 2 systems operating in parallel | Up to 2 systems operating in parallel |
| Compatible Inverters | SUN2000L-2/3/3.68/4/4.6/5KTL, SUN2000-2/3/3.68/4/4.6/5/6KTL-L1, SUN2000-3/4/5/6/8/10KTL-M0, SUN2000-3/4/5/6/8/10KTL-M1 | SUN2000L-2/3/3.68/4/4.6/5KTL, SUN2000-2/3/3.68/4/4.6/5/6KTL-L1, SUN2000-3/4/5/6/8/10KTL-M0, SUN2000-3/4/5/6/8/10KTL-M1 | SUN2000L-2/3/3.68/4/4.6/5KTL, SUN2000-2/3/3.68/4/4.6/5/6KTL-L1, SUN2000-3/4/5/6/8/10KTL-M0, SUN2000-3/4/5/6/8/10KTL-M1 |
| Compliance with Standards (more available upon request) | |||
| Certifications | CE, RCM, CEC, VDE2510-50, IEC62619, IEC 60730, UN38.3 | CE, RCM, CEC, VDE2510-50, IEC62619, IEC 60730, UN38.3 | CE, RCM, CEC, VDE2510-50, IEC62619, IEC 60730, UN38.3 |
| Ordering and Delivery of Parts | |||
| Product Ordering Model | LUNA2000-5KW-C0, LUNA2000-5-E0, LUNA2000 Wall Mounting Brackets | LUNA2000-5KW-C0, LUNA2000-5-E0, LUNA2000 Wall Mounting Brackets | LUNA2000-5KW-C0, LUNA2000-5-E0, LUNA2000 Wall Mounting Brackets |
