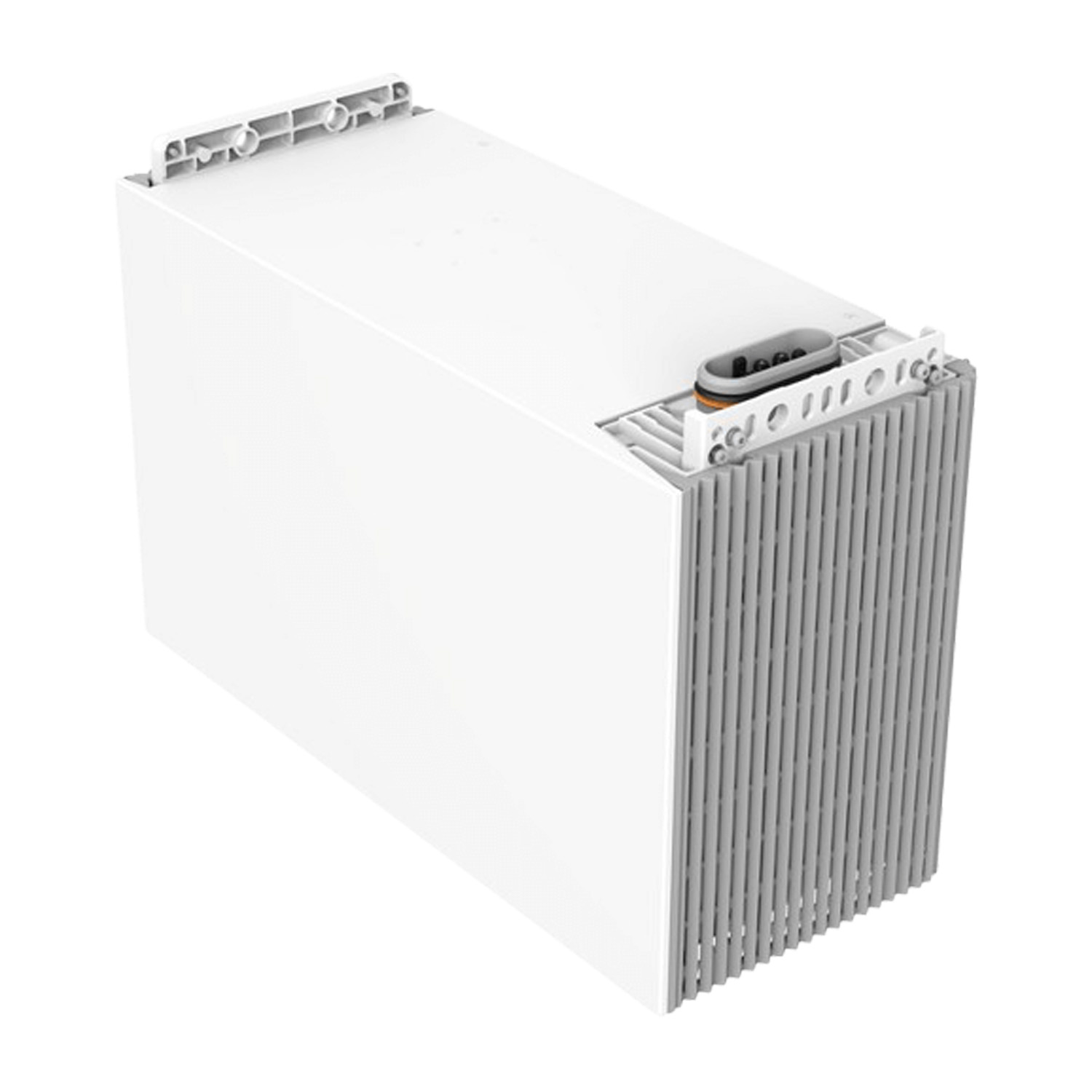

HUAWEI LUNA2000-7-E1 7kW Battery Module
SKU: F220U31
EAN: 5905951589237
| Manufacturer | |
|---|---|
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| Capacity | |
| Cell type | |
| Weight | 75 kg |
| CN | 85076000 |
Warranty Huawei LUNA2000-7-E1
warranty-huawei-luna2000-7-e1.pdf
Product details
| Manufacturer | |
|---|---|
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| Capacity | |
| Cell type | |
| Weight | 75 kg |
| CN | 85076000 |
Huawei LUNA2000-7/14/21-S1 Energy Storage
The Huawei LUNA2000-7/14/21-S1 is a modern energy storage solution designed to maximize energy efficiency and safety. Its modular design and advanced features make it an ideal choice for both households and small commercial installations.
Key Features:
- Flexible capacity – Modules with a capacity of 6.9 kWh allow for system scalability from 6.9 kWh to 20.7 kWh. The ability to connect up to 4 modules to an inverter results in a total capacity of up to 82.8 kWh.
- More usable energy – Deep discharge capability up to 100% thanks to the built-in energy optimizer. This ensures prolonged device lifespan and optimal energy management.
- 5-level safety protection – Comprehensive protection at the cell, circuit, and overall structure level. The system offers active safety measures and reliability in emergency situations.
- User-friendly benefits – A wide operating temperature range from -20°C to +55°C. Maximum charging and discharging power of 10.5 kW per module. The device operates quietly.
- Easy installation – Absolute connectivity between modules, adjustable positioning, and quick startup. The intuitive installation process facilitates integration with existing PV systems.
- Aesthetic design – A modern look with an intuitive LED indicator and ergonomic structure, perfectly fitting into contemporary interiors and installations.
Why choose LUNA2000-7/14/21-S1?
This energy storage solution is an excellent choice for users who value reliability, safety, and flexibility in energy management. With its innovative design and scalability options, the Huawei LUNA2000-7/14/21-S1 meets both current and future energy needs.
Warranty Huawei LUNA2000-7-E1
warranty-huawei-luna2000-7-e1.pdf
| LUNA2000-7-S1 | LUNA2000-14-S1 | LUNA2000-21-S1 | |
|---|---|---|---|
| Parameters | |||
| Power Module | LUNA2000-10KW-C1 | LUNA2000-10KW-C1 | LUNA2000-10KW-C1 |
| Number of Power Modules | 1 | 1 | 1 |
| Battery Module Energy | LUNA2000-7-E1 | LUNA2000-7-E1 | LUNA2000-7-E1 |
| Battery Module Capacity | 6.9 kWh | 6.9 kWh | 6.9 kWh |
| Number of Battery Modules | 1 | 2 | 3 |
| Usable Battery Energy | 6.9 kWh | 13.8 kWh | 20.7 kWh |
| Max Charging and Discharging Power | 3.5 kW | 7 kW | 10.5 kW |
| Operating Voltage Range (Single-phase System) | 350 – 560 V | 350 – 560 V | 350 – 560 V |
| Operating Voltage Range (Three-phase System) | 600 – 980 V | 600 – 980 V | 600 – 980 V |
| Communication | |||
| Display | State of Charge (SOC) Indicator, LED Indicator | State of Charge (SOC) Indicator, LED Indicator | State of Charge (SOC) Indicator, LED Indicator |
| Communication | RS485/FE/CAN | RS485/FE/CAN | RS485/FE/CAN |
| General Technical Data | |||
| Dimensions (W x D x H) | 590 mm x 255 mm x 510 mm | 590 mm x 255 mm x 870 mm | 590 mm x 255 mm x 1230 mm |
| Weight (with floor stand) | 80 kg | 148 kg | 216 kg |
| Power Module Dimensions (W x D x H) | 590 mm x 255 mm x 150 mm | 590 mm x 255 mm x 150 mm | 590 mm x 255 mm x 150 mm |
| Power Module Weight | 10 kg | 10 kg | 10 kg |
| Battery Module Dimensions (W x D x H) | 590 mm x 255 mm x 360 mm | 590 mm x 255 mm x 360 mm | 590 mm x 255 mm x 360 mm |
| Battery Module Weight | 68 kg | 68 kg | 68 kg |
| Mounting | Floor stand (standard), wall mounting (optional) | Floor stand (standard), wall mounting (optional) | Floor stand (standard), wall mounting (optional) |
| Operating Temperature | -20°C to +55°C (-4°F to +131°F) | -20°C to +55°C (-4°F to +131°F) | -20°C to +55°C (-4°F to +131°F) |
| Max Operating Altitude | 4000 m (13,123 ft) (derating above 2000 m) | 4000 m (13,123 ft) (derating above 2000 m) | 4000 m (13,123 ft) (derating above 2000 m) |
| Mounting Environment | Outdoor/Indoor | Outdoor/Indoor | Outdoor/Indoor |
| Relative Humidity | 5% – 95% | 5% – 95% | 5% – 95% |
| Cooling | Natural Convection | Natural Convection | Natural Convection |
| Protection Class | IP 66 | IP 66 | IP 66 |
| Noise Emission Level | < 29 dB | < 29 dB | < 29 dB |
| Cell Type | Lithium Iron Phosphate (LiFePO4) | Lithium Iron Phosphate (LiFePO4) | Lithium Iron Phosphate (LiFePO4) |
| Scalability | Max. 4 systems operating in parallel | Max. 4 systems operating in parallel | Max. 4 systems operating in parallel |
| Compatible Inverters | SUN2000-12/15/17/20/25K-MB0, SUN2000-3/4/5/6/8/10KTL-M1, SUN2000-8/10K-LC0, SUN2000-2/3/3.68/4/4.6/5/6KTL-L1 | SUN2000-12/15/17/20/25K-MB0, SUN2000-3/4/5/6/8/10KTL-M1, SUN2000-8/10K-LC0, SUN2000-2/3/3.68/4/4.6/5/6KTL-L1 | SUN2000-12/15/17/20/25K-MB0, SUN2000-3/4/5/6/8/10KTL-M1, SUN2000-8/10K-LC0, SUN2000-2/3/3.68/4/4.6/5/6KTL-L1 |
| Compliance with Standards (more information available upon request) | |||
| Certifications | CE, RCM, CEC, VDE2510-50, IEC62619, IEC 60730, UN38.3, ISO13849, REACH, RoHS | CE, RCM, CEC, VDE2510-50, IEC62619, IEC 60730, UN38.3, ISO13849, REACH, RoHS | CE, RCM, CEC, VDE2510-50, IEC62619, IEC 60730, UN38.3, ISO13849, REACH, RoHS |
| Ordering and Delivery of Parts | |||
| Ordering Options | LUNA2000-7-E1, LUNA2000-10KW-C1, wall mounting bracket for LUNA2000-7/14/21-S1 | LUNA2000-7-E1, LUNA2000-10KW-C1, wall mounting bracket for LUNA2000-7/14/21-S1 | LUNA2000-7-E1, LUNA2000-10KW-C1, wall mounting bracket for LUNA2000-7/14/21-S1 |
