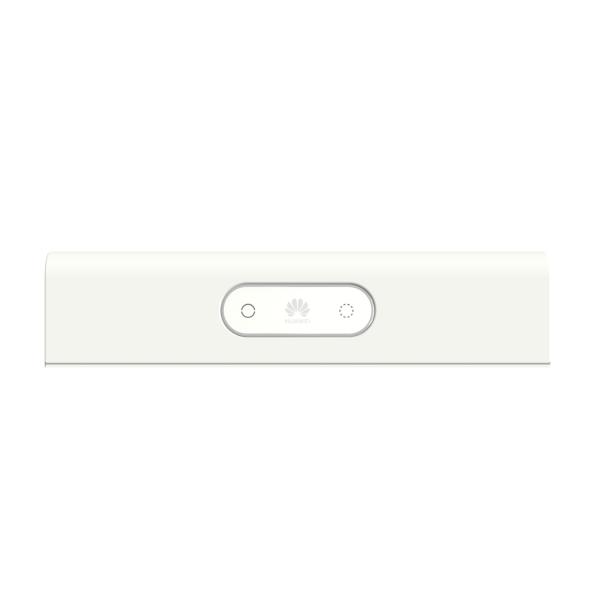

HUAWEI LUNA2000-7-E1 battery module 7kW / OUTLET
SKU: F220U31O
EAN: 2010000034781
| Manufacturer | |
|---|---|
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| Capacity | |
| Battery cell type | LiFePO4 |
| Weight | 75 kg |
| CN | 85076000 |
Price
2 713,85 €
Gross
Gross
Datasheet Huawei LUNA2000-7-21-S1
Huawei-LUNA2000-7-21-S1-Datasheet.pdf
Warranty Huawei LUNA2000-7-21-S1
Huawei-LUNA2000-7-21-S1-Warranty.pdf
Product details
| Manufacturer | |
|---|---|
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| Capacity | |
| Battery cell type | LiFePO4 |
| Weight | 75 kg |
| CN | 85076000 |
Huawei LUNA2000-7/14/21-S1 Energy Storage System
The Huawei LUNA2000-7/14/21-S1 is a modern energy storage system designed to maximize energy efficiency and safety. Its modular design and advanced features make it an ideal solution for both households and small commercial installations.
Key features:
- Flexible capacity – 6.9 kWh modules allow the system to scale from 6.9 kWh up to 20.7 kWh. It is possible to connect up to 4 modules per inverter, resulting in a total capacity of up to 82.8 kWh.
- More usable energy – Deep discharge up to 100% thanks to the built-in energy optimizer. Extended device lifespan and optimal energy management.
- 5-level safety protection – Comprehensive protection at the cell, circuit, and system levels. The system provides active protection and reliability in emergency situations.
- User benefits – Wide operating temperature range from -20°C to +55°C. Maximum charge and discharge power of 10.5 kW per module. The device operates quietly.
- Easy installation – Secure connections between modules, adjustable positioning, and quick commissioning. The intuitive installation process simplifies integration with existing PV systems.
- Attractive design – Modern look with an intuitive LED indicator and ergonomic construction, fitting perfectly into contemporary interiors and installations.
Why choose the LUNA2000-7/14/21-S1?
This energy storage system is an excellent choice for users who value reliability, safety, and flexibility in energy management. Thanks to its innovative design and scalability, the Huawei LUNA2000-7/14/21-S1 meets both current and future energy needs.
Datasheet Huawei LUNA2000-7-21-S1
Huawei-LUNA2000-7-21-S1-Datasheet.pdf
Warranty Huawei LUNA2000-7-21-S1
Huawei-LUNA2000-7-21-S1-Warranty.pdf
| Parameter | LUNA2000-7-S1 | LUNA2000-14-S1 | LUNA2000-21-S1 |
|---|---|---|---|
| Power module | |||
| Number of power modules | 1 | 1 | 1 |
| Battery module | |||
| Battery module energy (kWh) | 6.9 | 13.8 | 20.7 |
| Usable battery energy¹ (kWh) | 6.9 | 13.8 | 20.7 |
| Max. charging and discharging power (kW) | 3.5 | 7 | 10.5 |
| Number of battery modules | 1 | 2 | 3 |
| General specifications | |||
| Dimensions (W x D x H) (mm) | 590 mm x 255 mm x 510 mm | 590 mm x 255 mm x 870 mm | 590 mm x 255 mm x 1230 mm |
| Weight (including floor stand) (kg) | 80 kg | 148 kg | 216 kg |
| Power module dimensions (W x D x H) (mm) | 590 mm x 255 mm x 150 mm | 590 mm x 255 mm x 150 mm | 590 mm x 255 mm x 150 mm |
| Power module weight (kg) | 10 kg | 10 kg | 10 kg |
| Battery module dimensions (W x D x H) (mm) | 590 mm x 255 mm x 360 mm | 590 mm x 255 mm x 720 mm | 590 mm x 255 mm x 1080 mm |
| Battery module weight³ (kg) | 68 kg | 136 kg | 204 kg |
| Mounting | Floor stand (standard), wall mount (optional) | Floor stand (standard), wall mount (optional) | Floor stand (standard), wall mount (optional) |
| Operating temperature (°C) | -20°C to +55°C | ||
| Max. altitude above sea level⁵ (m) | 4000 m (rated performance derates above 2000 m) | ||
| Installation environment | Outdoor/Indoor | ||
| Relative humidity (%) | 5% – 95% | ||
| Cooling | Natural convection | ||
| Protection rating | IP 66 | ||
| Noise emission level (dB) | < 29 dB | ||
| Cell type | Lithium iron phosphate (LiFePO4) | ||
| Scalability³ | Up to 4 systems operating in parallel | ||
| Compatible inverters⁹ | SUN2000-12/15/17/20/25K-MB0, SUN2000-3/4/5/6/8/10KTL-M1, SUN2000-8/10K-LCO, SUN2000-2/3/3.68/4/4.6/5/6KTL-L1 | ||
| Certifications | CE, RCM, CEC, VDE2510-50, IEC62619, IEC 60730, UN38.3, ISO13849, REACH, ROHS | ||
| Communication² | RS485/FE/CAN | ||
| Display | State of charge (SOC) indicator, LED indicator | ||
Battery module weights vary by product, with a tolerance of +3%. CAN communication is used exclusively for communication between storage systems in parallel connection scenarios. Outdoor installation is recommended.
