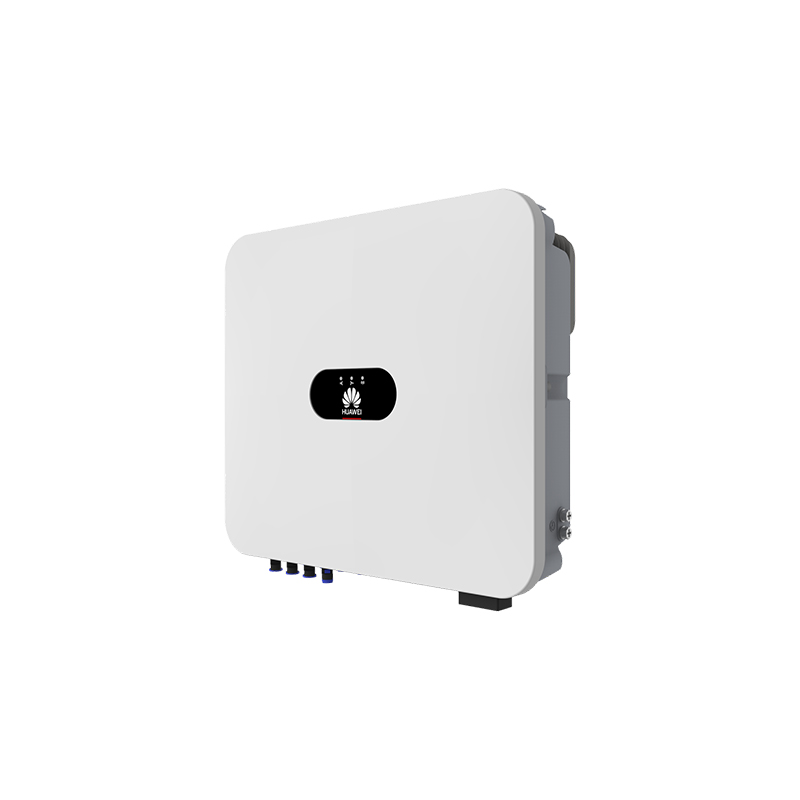

Inverter – HUAWEI – SUN2000-10KTL-LC0 – single-phase – hybrid – HV
SKU: SUN2000-10KTL-LC0
Price
1 664,61 €
Incl. VAT
Incl. VAT
Falownik Huawei 10kW, hybrydowy, jednofazowy, 3 mppt, bez wyświetlacza, wifi
Datasheet
Datasheet-SUN2000-8K-10K-LC0-EN-1.pdf
Product details
SUN2000-8/10K-LC0
SUN2000-8/10K-LC0 is a HUAWEI smart energy controller designed for battery integration and whole-home backup power. It offers active arc fault protection, and using an optimizer enables up to 30% more energy production.
Key advantages of SUN2000-8/10K-LC0
- Active arc fault protection supports safety.
- Up to 30% more energy when using an optimizer.
- Battery-ready allows energy storage to be taken into account.
- Whole-home backup power and a plug-and-play solution.
Who is this a good choice for?
This solution is for homeowners who plan to use a battery and need backup power for the entire home. It will also appeal to users looking to increase energy yield with an optimizer and benefit from active arc fault protection.
Datasheet
Datasheet-SUN2000-8K-10K-LC0-EN-1.pdf
| Parameter | Value |
|---|---|
| Model | Huawei SUN2000-10K-LC0 |
| Maximum efficiency | 98,1% |
| European efficiency | 97,5% |
| Recommended maximum PV power | 15000 Wp |
| Maximum input voltage | 600 V |
| Startup voltage | 50 V |
| MPPT range | 40–560 V |
| Nominal input voltage | 360 V |
| Maximum current per MPPT | 16 A |
| Maximum short-circuit current | 20 A |
| Number of PV inputs | 3 |
| Number of MPPTs | 3 |
| Compatible storage systems | LUNA2000-5/10/15-S0, LUNA2000-7/14/21-S1 |
| Battery voltage range | 350–560 V DC |
| Maximum battery current | 25 A |
| Maximum charging and discharging power | 10000 W |
| Grid connection | Single-phase |
| Rated output power | 10000 W |
| Maximum apparent power | 10000 VA |
| Rated output voltage | 220/230/240 V AC, L/N + PE |
| Maximum output current | 45.5 A |
| Grid frequency | 50/60 Hz |
| THD | ≤3% |
| Emergency exit | Yes, with SmartGuard-63A-S0 |
| Operating temperature | −25 to +60°C |
| Humidity | 0–100% RH |
| Working height | 0–4000 m; power derating above 2000 m |
| Cooling | Intelligent air cooling |
| Weight | 15 kg |
| Dimensions with mounting plate (W × H × D) | 425 × 376.5 × 150 mm |
| Degree of protection | IP66 |
| Compatible optimizers | SUN2000-450W-P2, SUN2000-600W-P |
