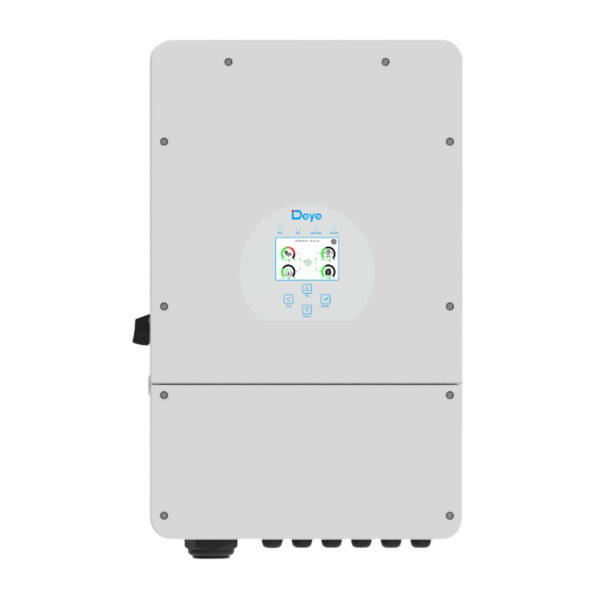

Inverter DEYE SUN-10K-SG02LP1-EU-AM3
SKU: F20GW3
EAN: 5905951587783
| Manufacturer | |
|---|---|
| Rated power | |
| Power supply | |
| Hybrid device | |
| MPPT | 3 |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| CAN | Yes |
| RS485 | Yes |
| SPD Type II | |
| Weight | 42,96 kg |
| CN | 85044085 |
Manual Deye SUN-10K-SG02LP1-EU-AM3
manual-deye-sun-10k-sg02lp1-eu-am3.pdf
Product details
| Manufacturer | |
|---|---|
| Rated power | |
| Power supply | |
| Hybrid device | |
| MPPT | 3 |
| Warranty | |
| Net width | |
| Net depth | |
| Net height | |
| CAN | Yes |
| RS485 | Yes |
| SPD Type II | |
| Weight | 42,96 kg |
| CN | 85044085 |
Deye Inverters SUN-7.6/8K-SG02LP1-EU-AM2 and SUN-10/12K-SG02LP1-EU-AM3
The inverters
Deye SUN-7.6/8K-SG02LP1-EU-AM2 and
SUN-10/12K-SG02LP1-EU-AM3 offer top performance and advanced energy management features tailored to the needs of photovoltaic system users.
Key Features of the Inverters:
- Color Touchscreen LCD – With an IP65 rating, it ensures durability and resistance to outdoor conditions.
- Compatibility with Generators – Ability to connect diesel generators to the inverter.
- Supports Up to 16 Devices in Parallel – Managing both on-grid and off-grid systems, with the option to connect multiple batteries.
- Charging/Discharging Current up to 250A – Ensures effective energy management.
- 6 Charging and Discharging Periods – Flexible energy usage planning for maximum savings.
Who Is This a Good Choice For?
The inverters
Deye SUN-7.6/8K-SG02LP1-EU-AM2 and
SUN-10/12K-SG02LP1-EU-AM3 are an excellent choice for commercial and residential installations that require advanced energy management. They are ideally suited for hybrid systems, retrofitted installations, and as support solutions for diesel generators.
Manual Deye SUN-10K-SG02LP1-EU-AM3
manual-deye-sun-10k-sg02lp1-eu-am3.pdf
| Parameter | SUN-7.6K-SG02 LP1-EU-AM2 | SUN-8K-SG02 LP1-EU-AM2 | SUN-10K-SG02 LP1-EU-AM3 | SUN-12K-SG02 LP1-EU-AM3 |
|---|---|---|---|---|
| Battery Input Data | ||||
| Battery Type | Lead-acid or Lithium-ion | Lead-acid or Lithium-ion | Lead-acid or Lithium-ion | Lead-acid or Lithium-ion |
| Battery Voltage Range (V) | 40-60 | 40-60 | 40-60 | 40-60 |
| Max Charging Current (A) | 190 | 190 | 220 | 250 |
| Max Discharging Current (A) | 190 | 190 | 220 | 250 |
| Charging Strategy for Lithium-ion Battery | Adaptation to BMS | Adaptation to BMS | Adaptation to BMS | Adaptation to BMS |
| Number of Battery Inputs | 1 | 1 | 1 | 1 |
| PV String Input Data | ||||
| Max PV Input Power (W) | 11,400 | 12,000 | 15,000 | 18,000 |
| Max PV Input Voltage (V) | 500 | 500 | 500 | 500 |
| Startup Voltage (V) | 125 | 125 | 125 | 125 |
| MPPT Voltage Range (V) | 150-425 | 150-425 | 150-425 | 150-425 |
| Nominal PV Input Voltage (V) | 370 | 370 | 370 | 370 |
| Max PV Input Current (A) | 26+26 | 26+26 | 26+26+26 | 26+26+26 |
| Max PV Short-Circuit Current (A) | 44+44 | 44+44 | 44+44+44 | 44+44+44 |
| MPPT Tracking Amount / Number of Strings per MPPT | 2 / 2 +2 | 2 / 2 +2 | 3 / 2+2+2 | 3 / 2+2+2 |
| AC Input/Output Data | ||||
| Nominal Input/Output Active Power (W) | 7,600 | 8,000 | 10,000 | 12,000 |
| Max Input/Output Apparent Power (VA) | 8,360 | 8,800 | 11,000 | 13,200 |
| Nominal Input/Output Current (A) | 34.6 / 33.1 | 36.4 / 34.8 | 45.5 / 43.5 | 54.6 / 52.2 |
| Max Input/Output Current (A) | 34.6 / 33.1 | 36.4 / 34.8 | 45.5 / 43.5 | 54.6 / 52.2 |
| Max Continuous AC Load (Grid to Load) (W) | 50 | 50 | 60 | 60 |
| Peak Power (off-grid) (W) | 2 times the rated power, 10 s | 2 times the rated power, 10 s | 2 times the rated power, 10 s | 2 times the rated power, 10 s |
| Power Factor Regulation Range | 0.8 leading to 0.8 lagging | 0.8 leading to 0.8 lagging | 0.8 leading to 0.8 lagging | 0.8 leading to 0.8 lagging |
| Nominal Input/Output Voltage (V) | 220 / 230, 0.85Un-1.1Un | 220 / 230, 0.85Un-1.1Un | 220 / 230, 0.85Un-1.1Un | 220 / 230, 0.85Un-1.1Un |
| Nominal Grid Frequency / Frequency Range (Hz) | 50 / 45-55, 60 / 55-65 | 50 / 45-55, 60 / 55-65 | 50 / 45-55, 60 / 55-65 | 50 / 45-55, 60 / 55-65 |
| Grid Connection Type | L+N+PE | L+N+PE | L+N+PE | L+N+PE |
| Total Harmonic Distortion (THDi) (%) | <3 (at rated power) | <3 (at rated power) | <3 (at rated power) | <3 (at rated power) |
| DC Injection Current | <0.5% In | <0.5% In | <0.5% In | <0.5% In |
| Efficiency | ||||
| Maximum Efficiency (%) | 97.6 | 97.6 | 97.6 | 97.6 |
| European Efficiency (%) | 96.5 | 96.5 | 96.5 | 96.5 |
| MPPT Efficiency (%) | >99 | >99 | >99 | >99 |
| Device Protection | ||||
| Integrated Protection | Protection against DC reverse polarity, AC overload protection, thermal protection, AC surge protection, DC component monitoring, grounding monitoring, arc interruption (optional), ground fault monitoring, leakage current monitoring (RCD), protective relay | Protection against DC reverse polarity, AC overload protection, thermal protection, AC surge protection, DC component monitoring, grounding monitoring, arc interruption (optional), ground fault monitoring, leakage current monitoring (RCD), protective relay | Protection against DC reverse polarity, AC overload protection, thermal protection, AC surge protection, DC component monitoring, grounding monitoring, arc interruption (optional), ground fault monitoring, leakage current monitoring (RCD), protective relay | Protection against DC reverse polarity, AC overload protection, thermal protection, AC surge protection, DC component monitoring, grounding monitoring, arc interruption (optional), ground fault monitoring, leakage current monitoring (RCD), protective relay |
| Surge Protection Level | Type II (DC), Type II (AC) | Type II (DC), Type II (AC) | Type II (DC), Type II (AC) | Type II (DC), Type II (AC) |
| Interface | ||||
| Communication Interface | RS485/RS232/CAN | RS485/RS232/CAN | RS485/RS232/CAN | RS485/RS232/CAN |
| Monitoring Mode | GPRS/WIFI/Bluetooth/4G/LAN (optional) | GPRS/WIFI/Bluetooth/4G/LAN (optional) | GPRS/WIFI/Bluetooth/4G/LAN (optional) | GPRS/WIFI/Bluetooth/4G/LAN (optional) |
| General Data | ||||
| Operating Temperature Range (℃) | -40 to +60℃, derating above +45℃ | -40 to +60℃, derating above +45℃ | -40 to +60℃, derating above +45℃ | -40 to +60℃, derating above +45℃ |
| Permissible Environmental Humidity (%) | 0-100 | 0-100 | 0-100 | 0-100 |
| Permissible Operating Altitude (m) | 2000 | 2000 | 2000 | 2000 |
| Noise (dB) | <45 | <45 | <45 | <45 |
| Protection Rating (IP) | IP65 | IP65 | IP65 | IP65 |
| Inverter Topology | Transformer-less | Transformer-less | Transformer-less | Transformer-less |
| Surge Category | OVC II (DC), OVC III (AC) | OVC II (DC), OVC III (AC) | OVC II (DC), OVC III (AC) | OVC II (DC), OVC III (AC) |
| Dimensions (W×H×D, mm) | 420 × 670 × 233 (excluding connectors and brackets) | 420 × 670 × 233 (excluding connectors and brackets) | 420 × 670 × 233 (excluding connectors and brackets) | 420 × 670 × 233 (excluding connectors and brackets) |
| Weight (kg) | 35.6 | 35.6 | 35.6 | 35.6 |
| Cooling Type | Intelligent Air Cooling | Intelligent Air Cooling | Intelligent Air Cooling | Intelligent Air Cooling |
| Warranty | 5 years / 10 years – depending on the installation location, details in warranty policy | 5 years / 10 years – depending on the installation location, details in warranty policy | 5 years / 10 years – depending on the installation location, details in warranty policy | 5 years / 10 years – depending on the installation location, details in warranty policy |
| Grid Code | VDE4105, IEC61727/62116, VDE0126, AS4777.2, CEI 0 21, EN50549-1, G98, G99, UNE217002, NBR16149/NBR16150 | VDE4105, IEC61727/62116, VDE0126, AS4777.2, CEI 0 21, EN50549-1, G98, G99, UNE217002, NBR16149/NBR16150 | VDE4105, IEC61727/62116, VDE0126, AS4777.2, CEI 0 21, EN50549-1, G98, G99, UNE217002, NBR16149/NBR16150 | VDE4105, IEC61727/62116, VDE0126, AS4777.2, CEI 0 21, EN50549-1, G98, G99, UNE217002, NBR16149/NBR16150 |
| Safety/EMC Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 |
