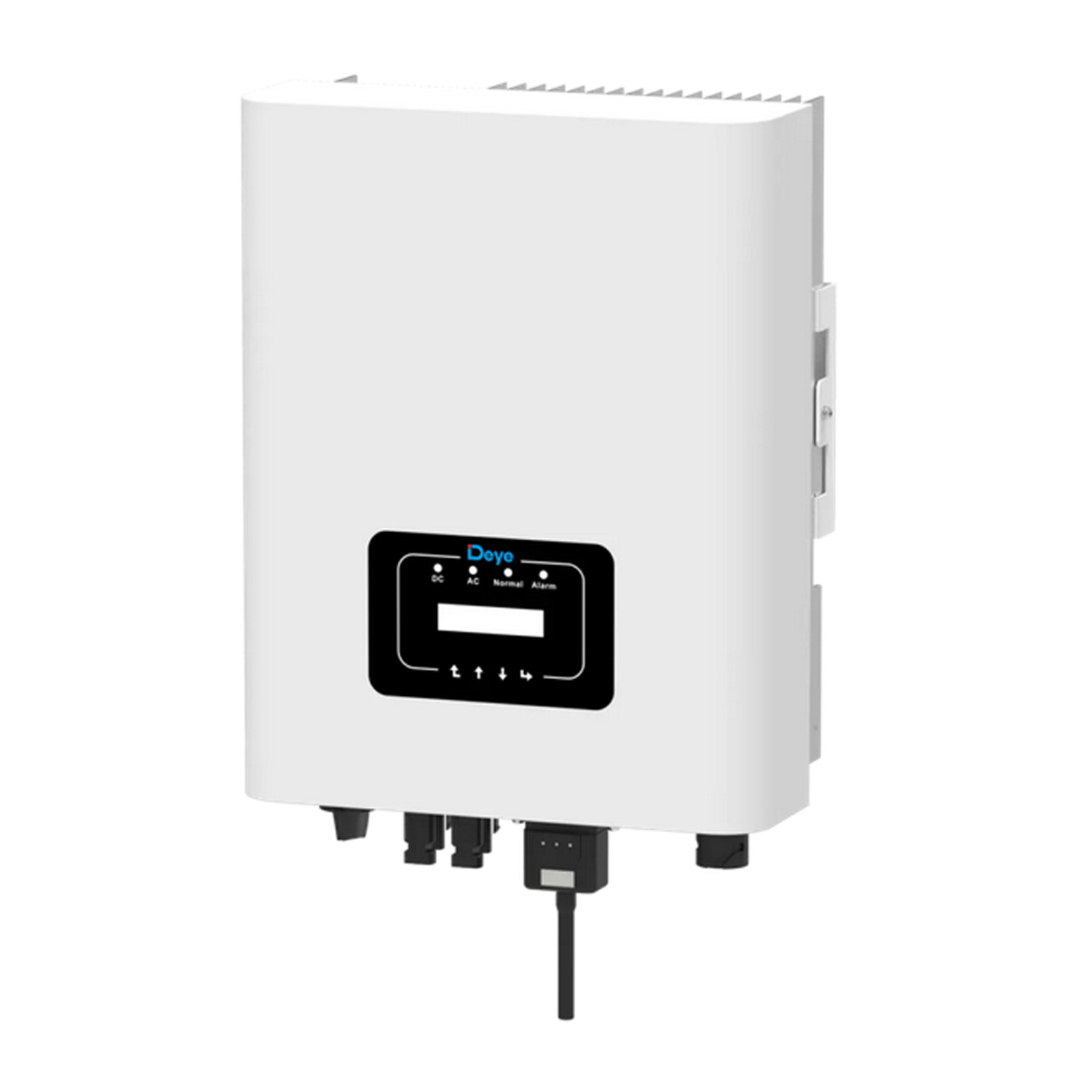

Inverter DEYE SUN-12K-G05

SKU: F20GA EAN: 5905951583907
Inverter DEYE SUN-12K-G05
Manufacturer

Rated power

Power supply

Hybrid device

MPPT

2

Warranty

Net width

Net depth

Net height

LAN

Yes

RS232

Yes

RS485

Yes

Wi-Fi

Yes

SPD Type II

Weight13,6 kg
CN85044086

Login to place an order

584,80 €
Gross

Login to place an order

Manual Deye SUN-12K-G05 manual-deye-sun-12k-g05.pdf

Product details

Manufacturer

Rated power

Power supply

Hybrid device

MPPT

2

Warranty

Net width

Net depth

Net height

LAN

Yes

RS232

Yes

RS485

Yes

Wi-Fi

Yes

SPD Type II

Weight13,6 kg
CN85044086

Deye SUN-3/4/5/6/7/8/9/10/12 K-G05 Three-Phase Inverter

The Deye SUN-3/4/5/6/7/8/9/10/12 K-G05 three-phase inverters are advanced devices designed to manage large photovoltaic systems. Their high efficiency, versatility, and advanced monitoring features make these inverters an ideal choice for demanding residential and commercial users.

Key Features of Deye SUN-3/4/5/6/7/8/9/10/12 K-G05 Inverters:

  • 2 MPP trackers – with a maximum efficiency of up to 98.3%, ensuring the optimal use of energy generated by PV modules.
  • Zero export and VSG mode capabilities – allow precise energy flow management, ensuring compliance with local grid requirements and optimizing energy usage.
  • Smart monitoring (optional) – enables real-time tracking of the PV system’s performance, allowing for quick responses to issues and maximization of efficiency.
  • Wide output voltage range – offers flexibility in system configuration, tailored to various installation requirements.
  • Optional anti-PID function – protects modules from voltage-induced degradation, extending their lifespan and enhancing the overall system efficiency.

Who is this a good choice for?

The Deye SUN-3/4/5/6/7/8/9/10/12 K-G05 three-phase inverters are an excellent choice for owners of large residential and commercial installations, who expect top performance and reliability. With advanced features such as monitoring and anti-PID, these devices enable optimal management of the PV system with minimal energy losses.

Manual Deye SUN-12K-G05 manual-deye-sun-12k-g05.pdf

ModelSUN-3K-G05SUN-4K-G05SUN-5K-G05SUN-6K-G05SUN-7K-G05SUN-8K-G05SUN-9K-G05SUN-10K-G05SUN-12K-G05
DC Input
Max DC Input Power (kW)3.95.26.57.89.110.411.713.015.6
Max DC Input Voltage (V)1,0001,0001,0001,0001,0001,0001,0001,0001,000
Startup Voltage (V)140140140140140140140140250
MPPT Operating Range (V)120-850120-850120-850120-850120-850120-850120-850120-850200-850
Max DC Input Current (A)13+1313+1313+1313+1313+1313+1313+1313+1313+13
Max Short Circuit Current (A)19.5+19.519.5+19.519.5+19.519.5+19.519.5+19.519.5+19.519.5+19.519.5+19.519.5+19.5
Number of MPPTs / Strings per MPPT2/12/12/12/12/12/12/12/12/1
AC Output
Nominal Output Power (kW)34567891012
Max Active Power (kW)3.34.45.56.67.78.89.91113.2
Nominal AC Output Current (A)4.35.87.28.710.111.613.014.517.4
Max AC Output Current (A)4.86.48.09.611.212.814.315.919.1
Nominal Output Voltage / Range (V)3L/N/PE 380V/323V-418V, 400V/340V-440V3L/N/PE 380V/323V-418V, 400V/340V-440V3L/N/PE 380V/323V-418V, 400V/340V-440V3L/N/PE 380V/323V-418V, 400V/340V-440V3L/N/PE 380V/323V-418V, 400V/340V-440V3L/N/PE 380V/323V-418V, 400V/340V-440V3L/N/PE 380V/323V-418V, 400V/340V-440V3L/N/PE 380V/323V-418V, 400V/340V-440V3L/N/PE 380V/323V-418V, 400V/340V-440V
Nominal Grid Frequency (Hz)50/60 (optional)50/60 (optional)50/60 (optional)50/60 (optional)50/60 (optional)50/60 (optional)50/60 (optional)50/60 (optional)50/60 (optional)
Operating PhaseThree-phaseThree-phaseThree-phaseThree-phaseThree-phaseThree-phaseThree-phaseThree-phaseThree-phase
Power Factor0.8 leading … 0.8 lagging0.8 leading … 0.8 lagging0.8 leading … 0.8 lagging0.8 leading … 0.8 lagging0.8 leading … 0.8 lagging0.8 leading … 0.8 lagging0.8 leading … 0.8 lagging0.8 leading … 0.8 lagging0.8 leading … 0.8 lagging
AC Current THD<3%<3%<3%<3%<3%<3%<3%<3%<3%
Grid Frequency Range47-52 or 57-62 (optional)47-52 or 57-62 (optional)47-52 or 57-62 (optional)47-52 or 57-62 (optional)47-52 or 57-62 (optional)47-52 or 57-62 (optional)47-52 or 57-62 (optional)47-52 or 57-62 (optional)47-52 or 57-62 (optional)
Output DC Current (mA)<0.5%<0.5%<0.5%<0.5%<0.5%<0.5%<0.5%<0.5%<0.5%
Efficiency
Max Efficiency98.3%98.3%98.3%98.3%98.3%98.3%98.3%98.3%98.3%
Euro Efficiency97.5%97.5%97.5%97.5%97.5%97.83%97.83%97.83%97.83%
MPPT Efficiency>99%>99%>99%>99%>99%>99%>99%>99%>99%
Protection
DC Reverse Polarity ProtectionYesYesYesYesYesYesYesYesYes
AC Overcurrent ProtectionYesYesYesYesYesYesYesYesYes
AC Output Overcurrent ProtectionYesYesYesYesYesYesYesYesYes
Output Surge ProtectionYesYesYesYesYesYesYesYesYes
Insulation Resistance ProtectionYesYesYesYesYesYesYesYesYes
Ground Fault MonitoringYesYesYesYesYesYesYesYesYes
Anti-Islanding ProtectionYesYesYesYesYesYesYesYesYes
Temperature ProtectionYesYesYesYesYesYesYesYesYes
Integrated DC BreakerYesYesYesYesYesYesYesYesYes
Remote Software UploadYesYesYesYesYesYesYesYesYes
Remote Parameter ChangesYesYesYesYesYesYesYesYesYes
Surge ProtectionDC Type II / AC Type IIDC Type II / AC Type IIDC Type II / AC Type IIDC Type II / AC Type IIDC Type II / AC Type IIDC Type II / AC Type IIDC Type II / AC Type IIDC Type II / AC Type IIDC Type II / AC Type II
General Data
Size (mm)330 width × 457 height × 185 depth330 width × 457 height × 185 depth330 width × 457 height × 185 depth330 width × 457 height × 185 depth330 width × 457 height × 185 depth330 width × 457 height × 185 depth330 width × 457 height × 185 depth330 width × 457 height × 185 depth
Weight (kg)101010101010101011
TopologyTransformer-lessTransformer-lessTransformer-lessTransformer-lessTransformer-lessTransformer-lessTransformer-lessTransformer-lessTransformer-less
Internal Consumption<1W (night)<1W (night)<1W (night)<1W (night)<1W (night)<1W (night)<1W (night)<1W (night)<1W (night)
Operating Temperature-25~65℃, ≥45℃ derating-25~65℃, ≥45℃ derating-25~65℃, ≥45℃ derating-25~65℃, ≥45℃ derating-25~65℃, ≥45℃ derating-25~65℃, ≥45℃ derating-25~65℃, ≥45℃ derating-25~65℃, ≥45℃ derating-25~65℃, ≥45℃ derating
Ingress ProtectionIP65IP65IP65IP65IP65IP65IP65IP65IP65
Noise Emission (typical)<25 dB<25 dB<25 dB<25 dB<25 dB<25 dB<25 dB<25 dB<25 dB
CoolingPassive CoolingPassive CoolingPassive CoolingPassive CoolingPassive CoolingPassive CoolingPassive CoolingPassive CoolingPassive Cooling
Max. Height without Efficiency Reduction2000m2000m2000m2000m2000m2000m2000m2000m2000m
Designed Lifetime> 20 years> 20 years> 20 years> 20 years> 20 years> 20 years> 20 years> 20 years> 20 years
Grid Connection StandardCEI 0-21, VDE-AR-N 4105, NRS 097, IEC 62116, IEC 61727, G99, G98, VDE 0126-1-1, RD 1699, C10-11CEI 0-21, VDE-AR-N 4105, NRS 097, IEC 62116, IEC 61727, G99, G98, VDE 0126-1-1, RD 1699, C10-11CEI 0-21, VDE-AR-N 4105, NRS 097, IEC 62116, IEC 61727, G99, G98, VDE 0126-1-1, RD 1699, C10-11CEI 0-21, VDE-AR-N 4105, NRS 097, IEC 62116, IEC 61727, G99, G98, VDE 0126-1-1, RD 1699, C10-11CEI 0-21, VDE-AR-N 4105, NRS 097, IEC 62116, IEC 61727, G99, G98, VDE 0126-1-1, RD 1699, C10-11CEI 0-21, VDE-AR-N 4105, NRS 097, IEC 62116, IEC 61727, G99, G98, VDE 0126-1-1, RD 1699, C10-11CEI 0-21, VDE-AR-N 4105, NRS 097, IEC 62116, IEC 61727, G99, G98, VDE 0126-1-1, RD 1699, C10-11CEI 0-21, VDE-AR-N 4105, NRS 097, IEC 62116, IEC 61727, G99, G98, VDE 0126-1-1, RD 1699, C10-11CEI 0-21, VDE-AR-N 4105, NRS 097, IEC 62116, IEC 61727, G99, G98, VDE 0126-1-1, RD 1699, C10-11
Working Environment Humidity0-100%0-100%0-100%0-100%0-100%0-100%0-100%0-100%0-100%
EMC Safety / StandardIEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
Features
DC ConnectionMC-4 ConnectorMC-4 ConnectorMC-4 ConnectorMC-4 ConnectorMC-4 ConnectorMC-4 ConnectorMC-4 ConnectorMC-4 ConnectorMC-4 Connector
AC ConnectionIP65 Protection ClassIP65 Protection ClassIP65 Protection ClassIP65 Protection ClassIP65 Protection ClassIP65 Protection ClassIP65 Protection ClassIP65 Protection ClassIP65 Protection Class
DisplayLCD1602LCD1602LCD1602LCD1602LCD1602LCD1602LCD1602LCD1602LCD1602
InterfaceRS485/RS232/WiFi/LANRS485/RS232/WiFi/LANRS485/RS232/WiFi/LANRS485/RS232/WiFi/LANRS485/RS232/WiFi/LANRS485/RS232/WiFi/LANRS485/RS232/WiFi/LANRS485/RS232/WiFi/LANRS485/RS232/WiFi/LAN
