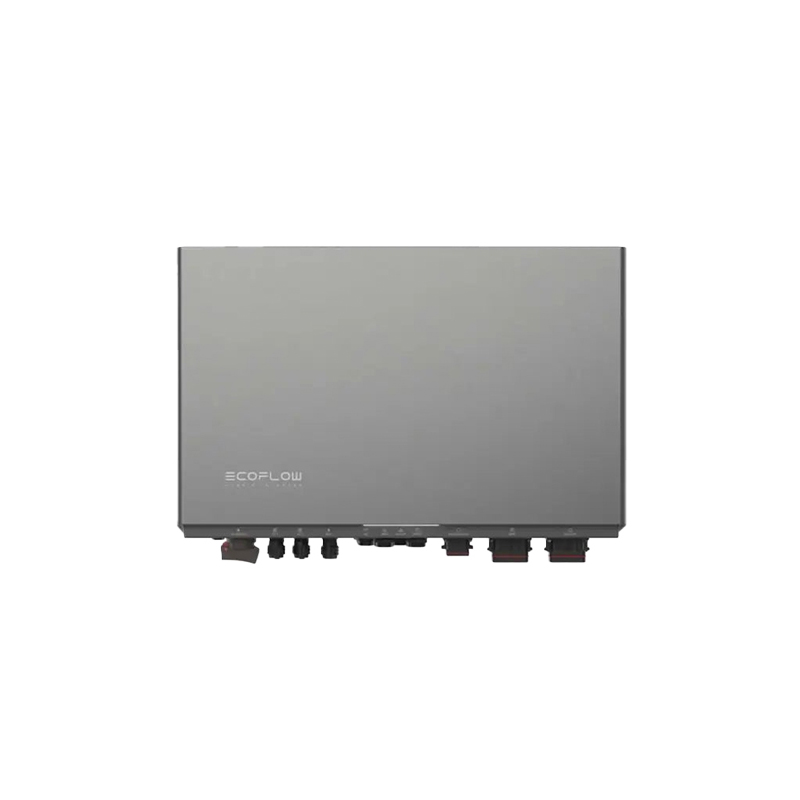

Inverter – EcoFlow – EF_HD-P3-8K-S1 – hybrid – HV
SKU: EF_HD-P3-8K-S1
EAN: 4895251622776
Product details
PowerOcean
PowerOcean is a modular solution with an LFP battery and a hybrid inverter for residential three-phase photovoltaic systems. It allows capacity expansion and use as a backup power supply during power outages. Users have access to the EcoFlow app and web portal.
Key benefits of PowerOcean
- Modular capacity: the battery’s nominal capacity is 5.1–15.3 kWh, depending on the configuration, with the option of later expansion.
- Power matched to the configuration: the battery’s maximum output power is 3.3–9.9 kW, and its input power is 2.5–7.5 kW.
- Backup power: the ability to use the system during power outages.
- Battery protection: LFP cells and an integrated active aerosol fire protection module.
- Battery operating parameters: IP65 protection rating, natural convection cooling and a noise level not exceeding 35 dB.
- User access: EcoFlow app and EcoFlow web portal designed for system users.
Who is this a good choice for?
PowerOcean is designed for households with a three-phase photovoltaic system that want to store energy and use backup power during power outages. The modular design also meets the needs of homeowners planning to start with a smaller battery capacity and expand it later.
Datasheet
Datasheet-PowerOcean-EN-25.pdf
| Parameter | EcoFlow PowerOcean 5.1 kWh | EcoFlow PowerOcean 10.2 kWh | EcoFlow PowerOcean 15.3 kWh | EF HD-P3-6K0-S1 | EF HD-P3-8K0-S1 | EF HD-P3-10K-S1 | EF HD-P3-12K-S1 |
|---|---|---|---|---|---|---|---|
| Battery electrical parameters | |||||||
| Rated battery capacity (kWh) | 5,1 | 10,2 | 15,3 | ||||
| Usable battery capacity at 95% depth of discharge (kWh) | 4,8 | 9,7 | 14,5 | ||||
| Maximum output power (W) | 3300 | 6600 | 9900 | ||||
| Maximum input power (W) | 2500 | 5000 | 7500 | ||||
| Rated voltage (V) | 800 | ||||||
| Operating voltage range (V) | 720–960 | ||||||
| Battery cell type | LFP | ||||||
| Battery certifications | |||||||
| Conformity marking | CE | ||||||
| Safety standards | EN62619, EN62040-1, EN62477-1, ISO13849, VDE-AR-E-2510-50 | ||||||
| Electromagnetic compatibility | EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4 | ||||||
| Battery dimensions and weight | |||||||
| Dimensions without adjustable feet (W × D × H) (mm) | 680 × 183 × 612 (±1) | 680 × 183 × 1009 (±1) | 680 × 183 × 1406 (±1) | ||||
| Weight (kg) | 65,6 | 120,9 | 176,2 | ||||
| Dimensions of a single EF BD-5.1-S1 module (W × D × H) (mm) | 680 × 183 × 424 (±1) | ||||||
| Weight of a single EF BD-5.1-S1 module (kg) | 55,5 | ||||||
| Installation | Floor-standing | ||||||
| Battery operating conditions and protection | |||||||
| Operating temperature (°C) | From -20 to 50 | ||||||
| Maximum operating altitude above sea level (m) | 3000 | ||||||
| Cooling method | Natural convection | ||||||
| Noise level (dB) | ≤35 | ||||||
| Relative humidity (%) | 0–100 (condensation) | ||||||
| Active aerosol fire protection module | Integrated | ||||||
| Degree of protection | IP65 | ||||||
| Protection class | And | ||||||
| Inverter DC input data (PV) | |||||||
| Maximum photovoltaic system power (W) | 10000 | 12000 | 14000 | 16000 | |||
| Maximum input voltage (V) | 1000 | ||||||
| MPPT operating voltage range (V) | 200–850 | ||||||
| Start-up voltage (V) | 160 | ||||||
| Rated input voltage (V) | 600 | ||||||
| Maximum power per MPPT (W) | 5000 | 6000 | 7000 | 8000 | |||
| Maximum input current per MPPT (A) | 16 | ||||||
The battery depth of discharge may vary depending on temperature. The source text cuts off in the maximum input current per MPPT row; missing values have been left blank.
