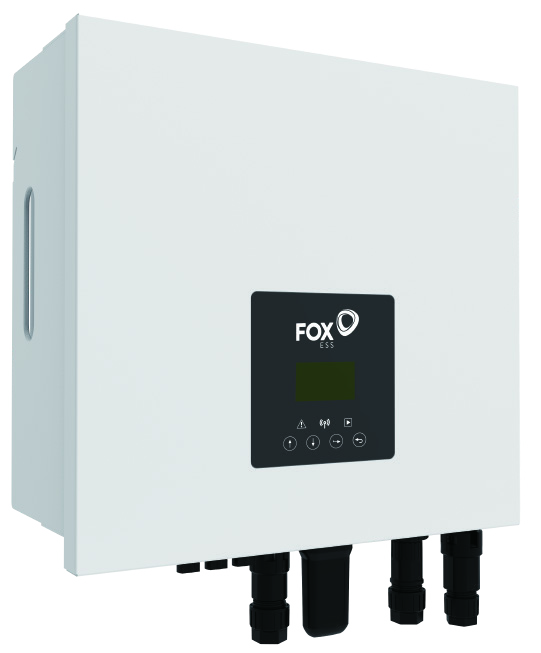

Inverter – FoxESS – H1-4.6-E – single-phase – hybrid – HV

H1-3.0-E / 3.7 / 4.6 / 5.0 / 6.0

The FOX ESS series of single-phase hybrid inverters is designed to work with photovoltaic systems and FoxESS battery modules. The devices support lithium iron phosphate (LFP) batteries with a voltage range of 85–450 V, and their rated AC power is 3–6 kW, depending on the model. The mobile app enables remote management and monitoring of device operation.

Key benefits of H1-3.0-E / 3.7 / 4.6 / 5.0 / 6.0

• Two independent MPPT systems with an operating voltage range of 80–550 V; maximum PV input power is 3900–7800 W, depending on the model.
• Compatibility with LFP batteries at a maximum charging and discharging current of 40 A and charging and discharging power of up to 6 kW.
• Energy storage expansion capability — up to seven batteries connected in series and up to 18.2 kWh of capacity.
• IP65 protection rating and the option of outdoor installation.
• Remote monitoring via a smartphone app or web portal.
• EPS output operating with batteries — maximum apparent power of 5000–6000 VA and peak apparent power of 6000–7200 VA for 60 seconds, depending on the model.

Who is this a good choice for?

The series is designed for users of photovoltaic systems who want to combine them with energy storage based on FoxESS batteries. The option to add batteries meets the needs of those planning to expand storage capacity, while remote monitoring allows users to monitor system operation via a smartphone or web portal.
